Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the grille retaining tabs to the slots in the front fascia.
  2. Install the grille by pressing into place until the retaining tabs (1, 2, 3, 4, 5) are fully seated.
  3. Install the headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (AZTEK) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (RENDEZVOUS) .

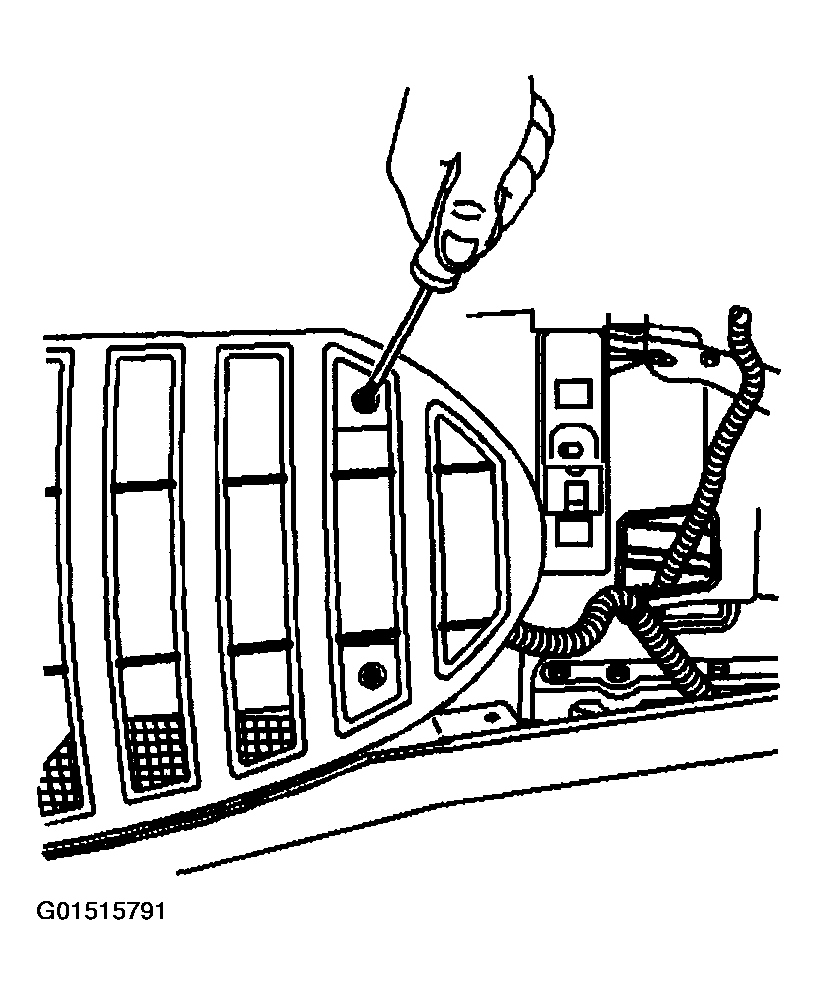

    Fig 1: Installing Grille Screws
    G01515791Courtesy of GENERAL MOTORS CORP.
