Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (AZTEK) or FASCIA REPLACEMENT - REAR BUMPER (RENDEZVOUS) .
Using J 38778, remove the push-in retainers from the rear bumper energy absorber.

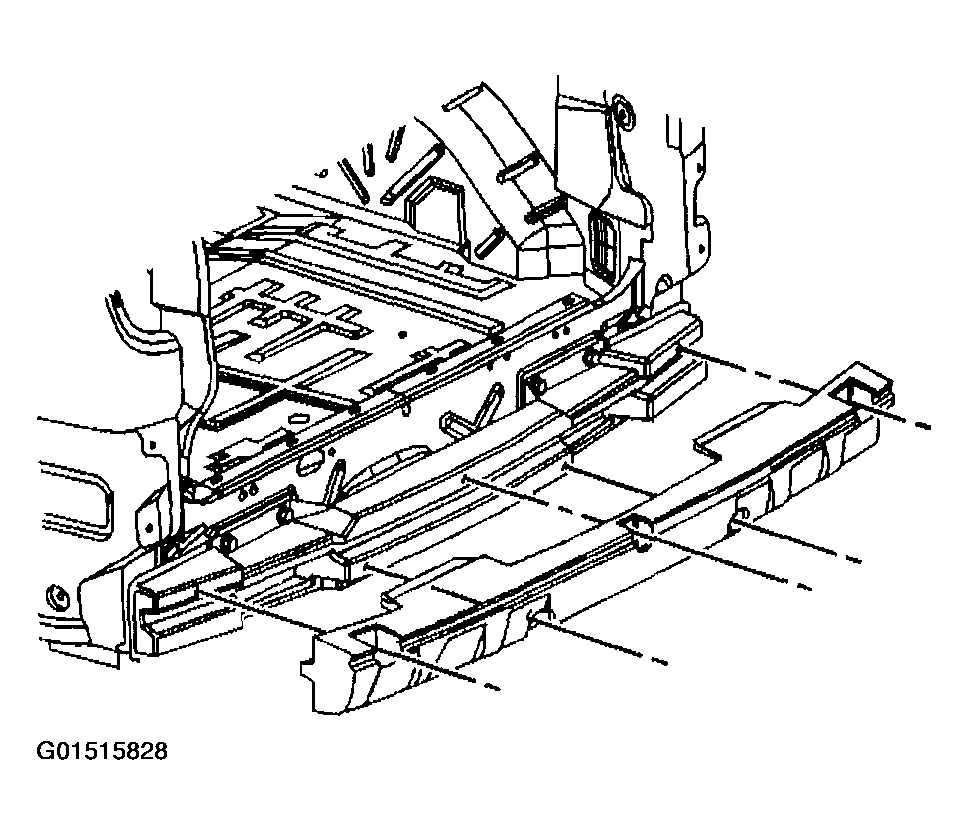

Fig 1: Removing Rear Bumper Energy Absorber From Rear Bumper Impact Bar
Courtesy of GENERAL MOTORS CORP.
Remove the rear bumper energy absorber from the rear bumper impact bar.

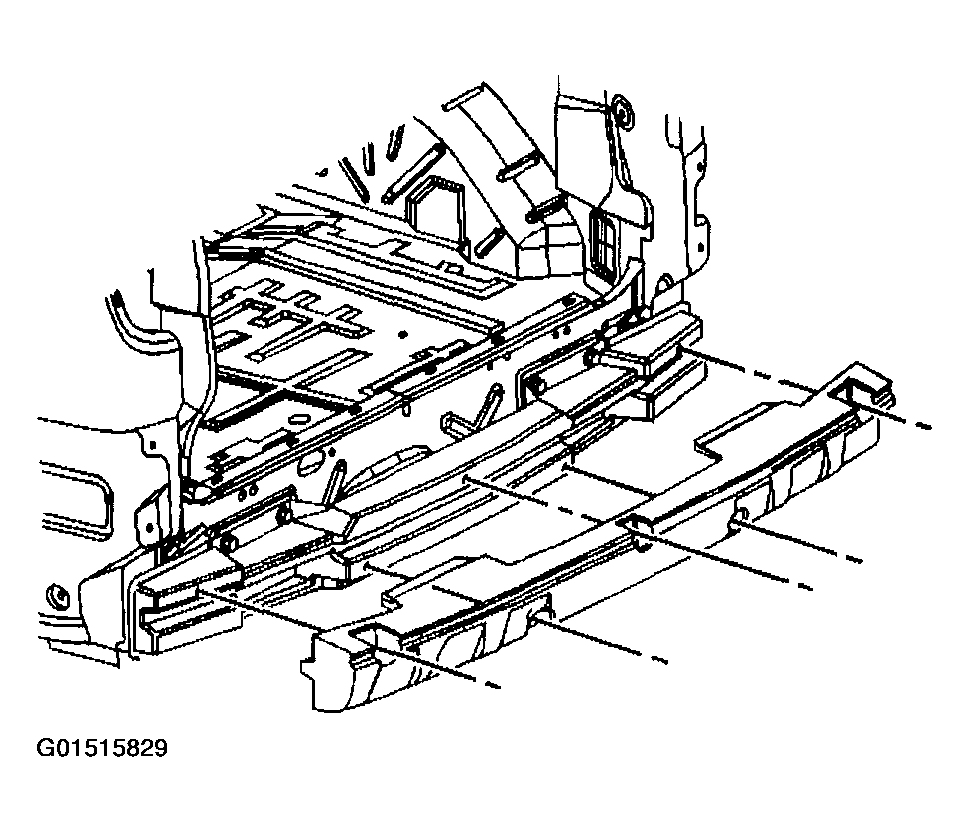

Fig 2: Removing Rear Bumper Energy Absorber From Rear Bumper Impact Bar
Courtesy of GENERAL MOTORS CORP.
