Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear bumper energy absorber to the rear bumper impact bar.

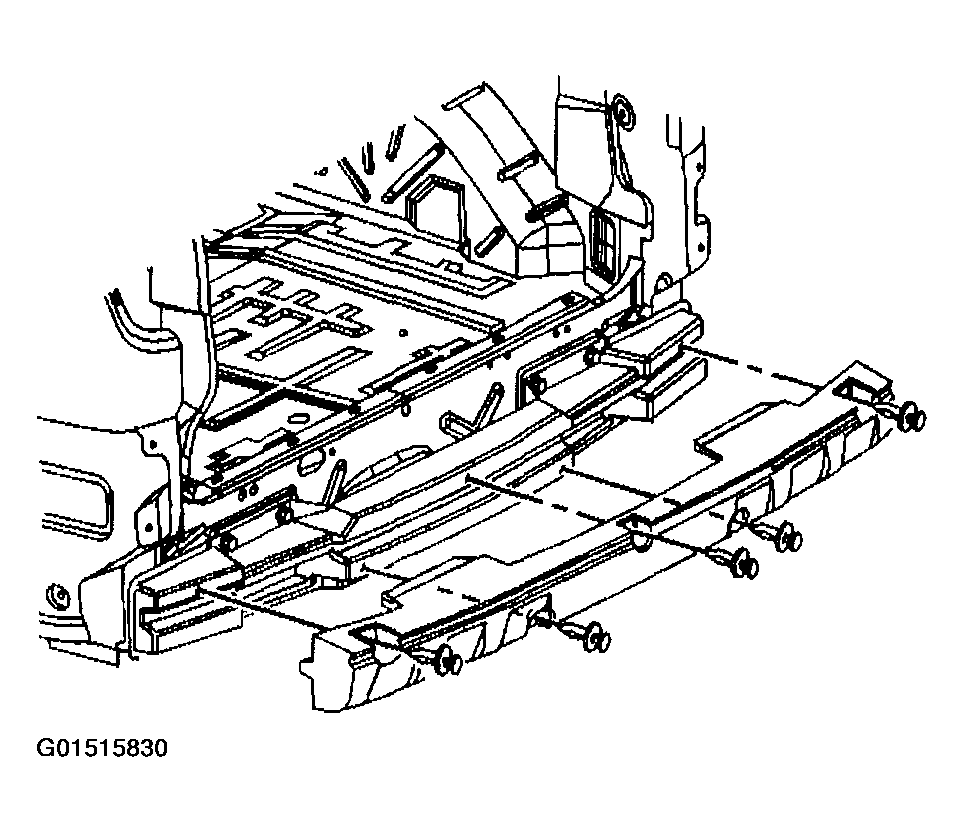

Fig 1: Installing Push-In Retainers To Rear Bumper Energy Absorber
Courtesy of GENERAL MOTORS CORP.
Install the push-in retainers to the rear bumper energy absorber.
Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (AZTEK) or FASCIA REPLACEMENT - REAR BUMPER (RENDEZVOUS) .

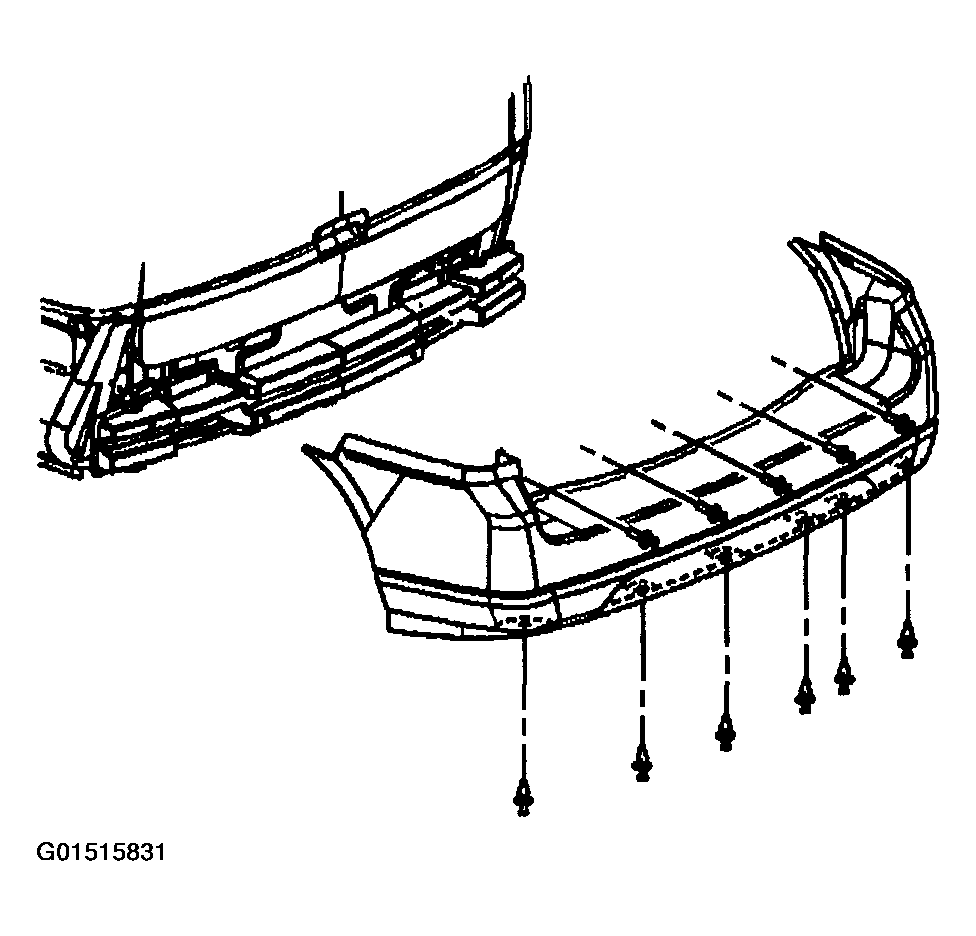

Fig 2: Installing Rear Bumper Energy Absorber To Rear Fascia
Courtesy of GENERAL MOTORS CORP.
