Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the energy absorber to the front bumper impact bar.
  2. Starting with the center hole, install the push-in retainers to the front bumper energy absorber.
  3. Install the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER - UPPER (AZTEK)  or FASCIA REPLACEMENT - FRONT BUMPER - UPPER (RENDEZVOUS)  .

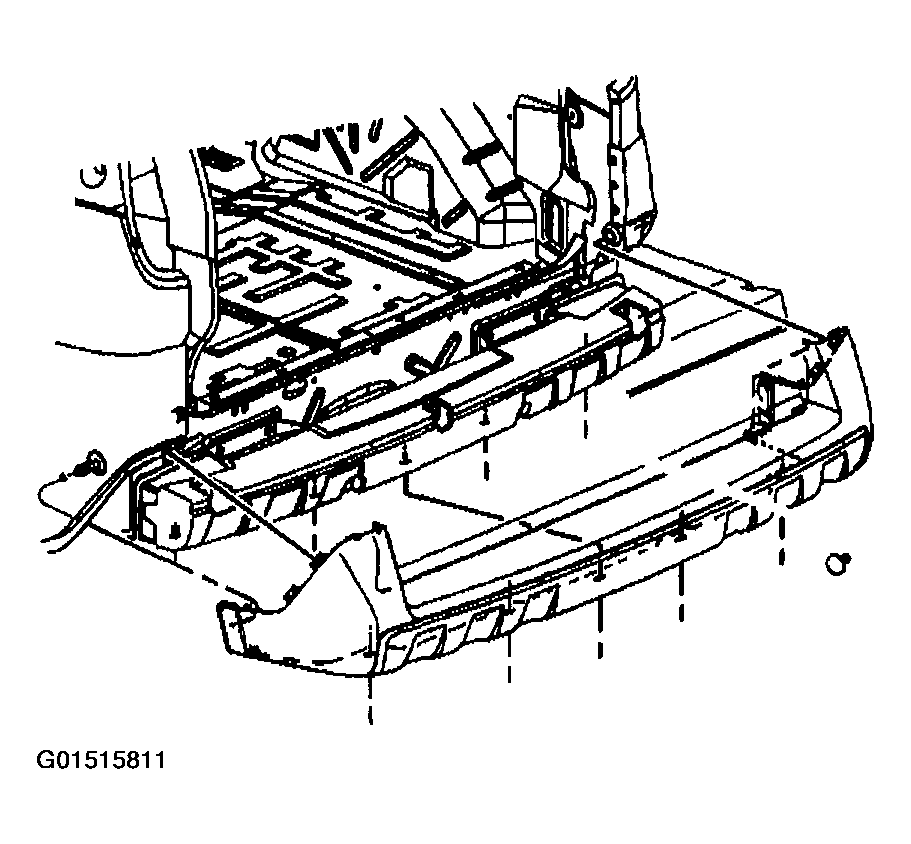

    Fig 1: Installing Rear Bumper Fascia Push-In Retainers At Inboard Side Of Rear Quarter Panel
    G01515811Courtesy of GENERAL MOTORS CORP.
