Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT -- SIDE REAR DOOR (AZTEK) or TRIM PANEL REPLACEMENT -- SIDE REAR DOOR (RENDEZVOUS) .
  2. Remove the screws from the speaker.

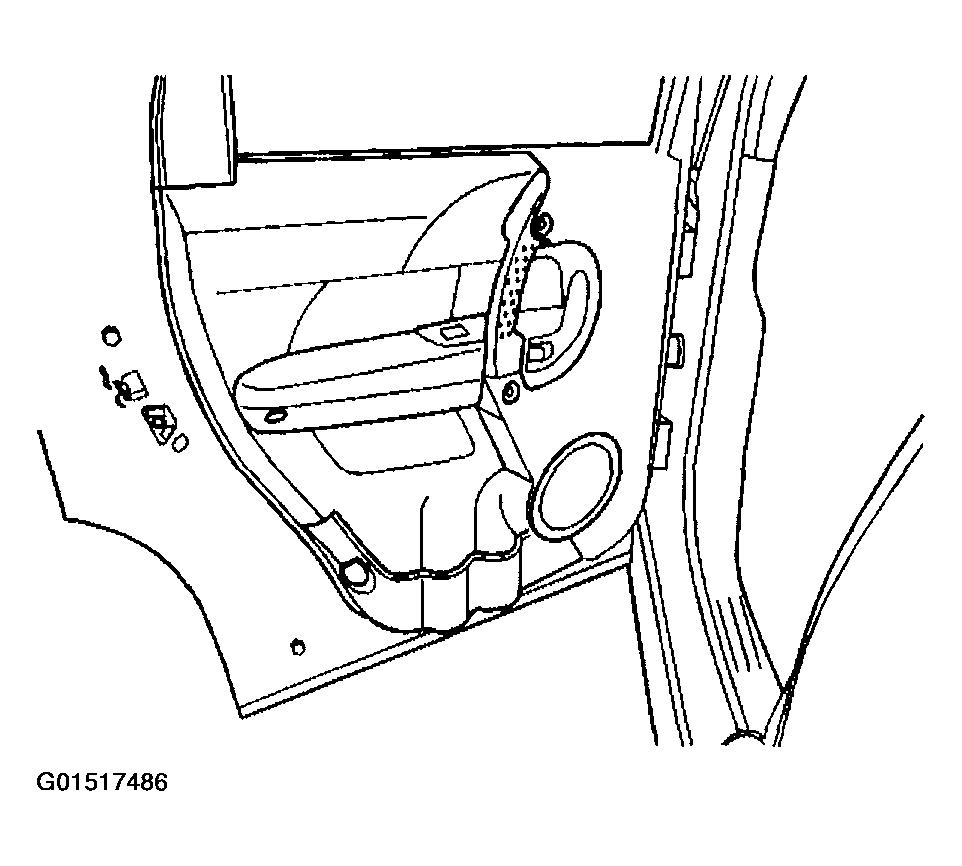

    Fig 1: Disconnecting Electrical Connector From Speaker
    G01517486Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the speaker.
  4. Remove the speaker from the rear door.

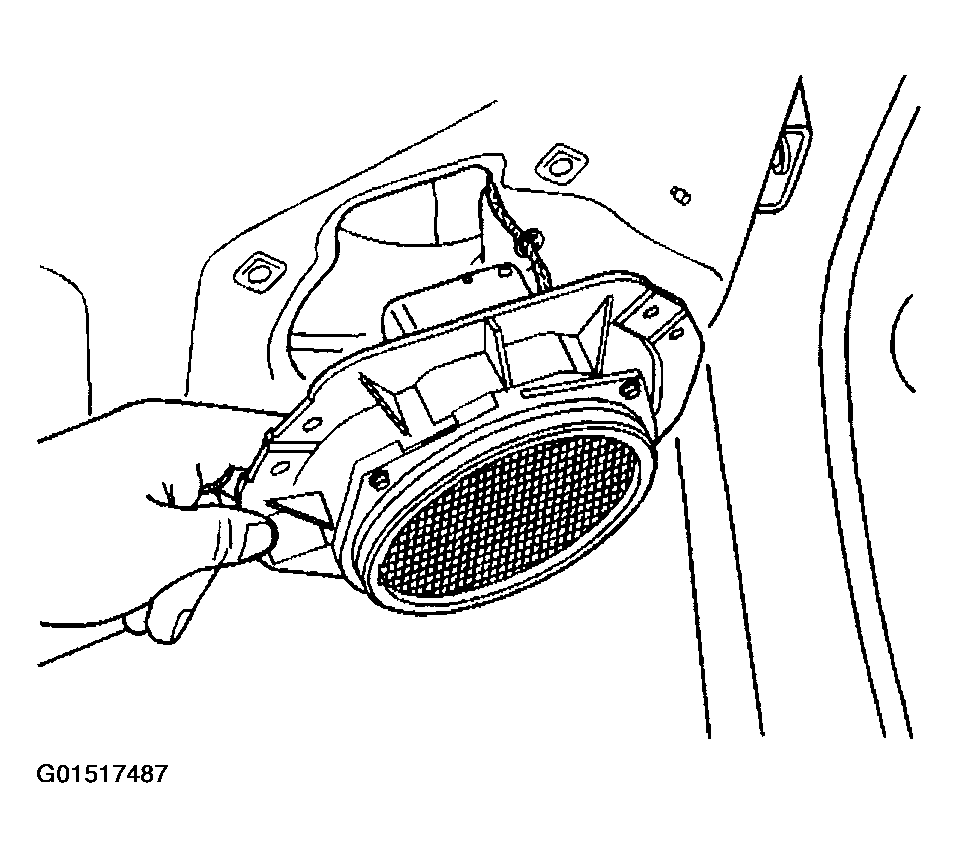

    Fig 2: Removing Speaker From Rear Door
    G01517487Courtesy of GENERAL MOTORS CORP.
