Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the rear door speaker.

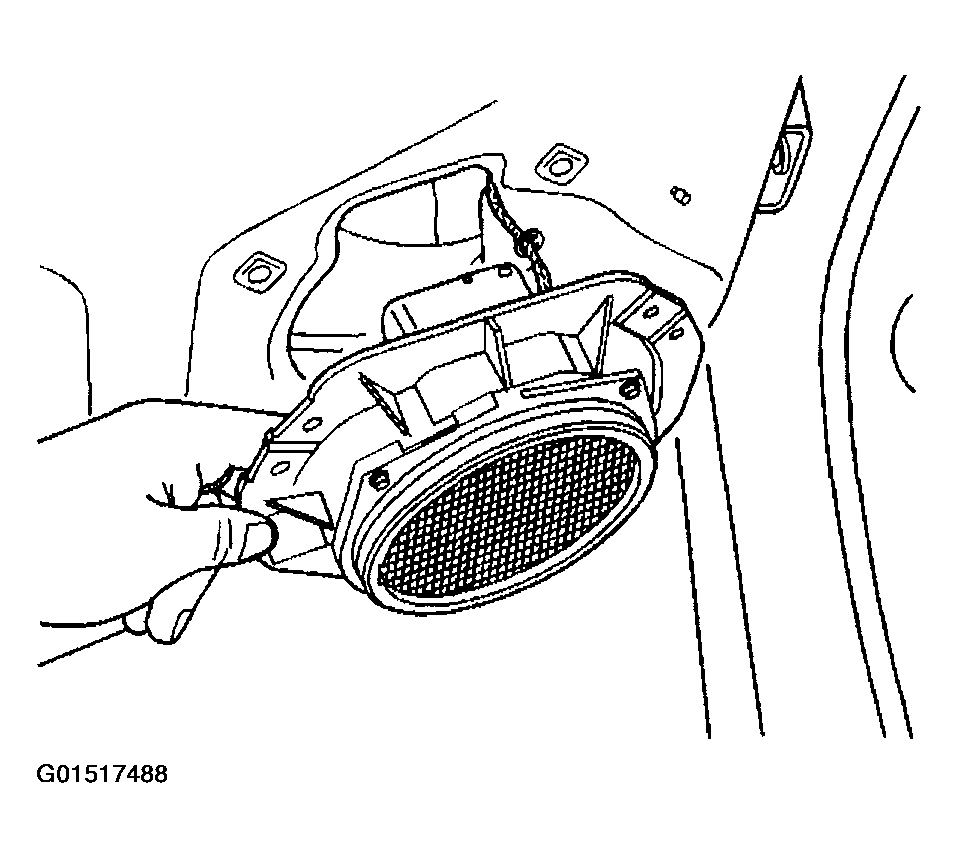

    Fig 1: Connecting Electrical Connector To Rear Door Speaker
    G01517488Courtesy of GENERAL MOTORS CORP.
  2. Align the speaker to the rear door and install the screws.

    Tighten

    Tighten the speaker screws to 3.2 N.m (28 lb in).

  3. Install the rear door trim panel. Refer to TRIM PANEL REPLACEMENT -- SIDE REAR DOOR (AZTEK) or TRIM PANEL REPLACEMENT -- SIDE REAR DOOR (RENDEZVOUS) .

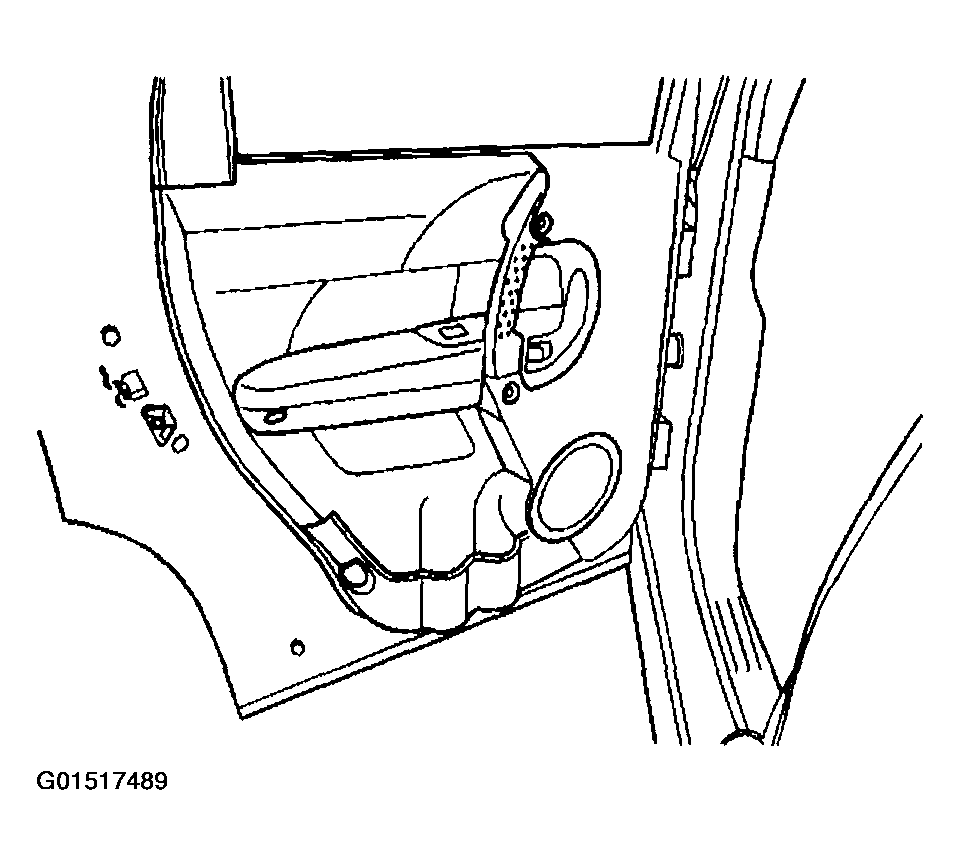

    Fig 2: Installing Rear Door Trim Panel
    G01517489Courtesy of GENERAL MOTORS CORP.
