Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .
  2. Disconnect the antenna cable from the antenna base cable connector.
  3. Remove the antenna cable retainer clips.

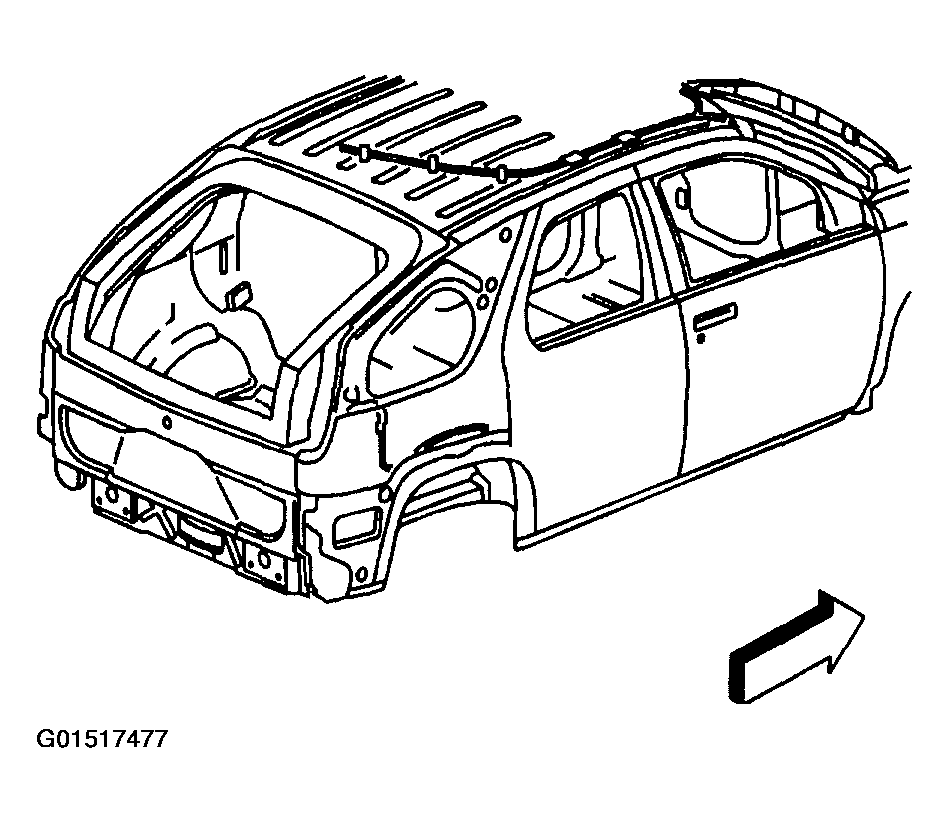

    Fig 1: Coaxial Cable Removal Procedure (1 Of 2)
    G01517477Courtesy of GENERAL MOTORS CORP.
  4. Open the right side end cap from the I/P to disconnect the cable connectors.
  5. Disconnect the antenna cable from the digital radio receiver.
  6. Remove the antenna cable retainers from the receiver bracket.
  7. Remove the antenna cable.

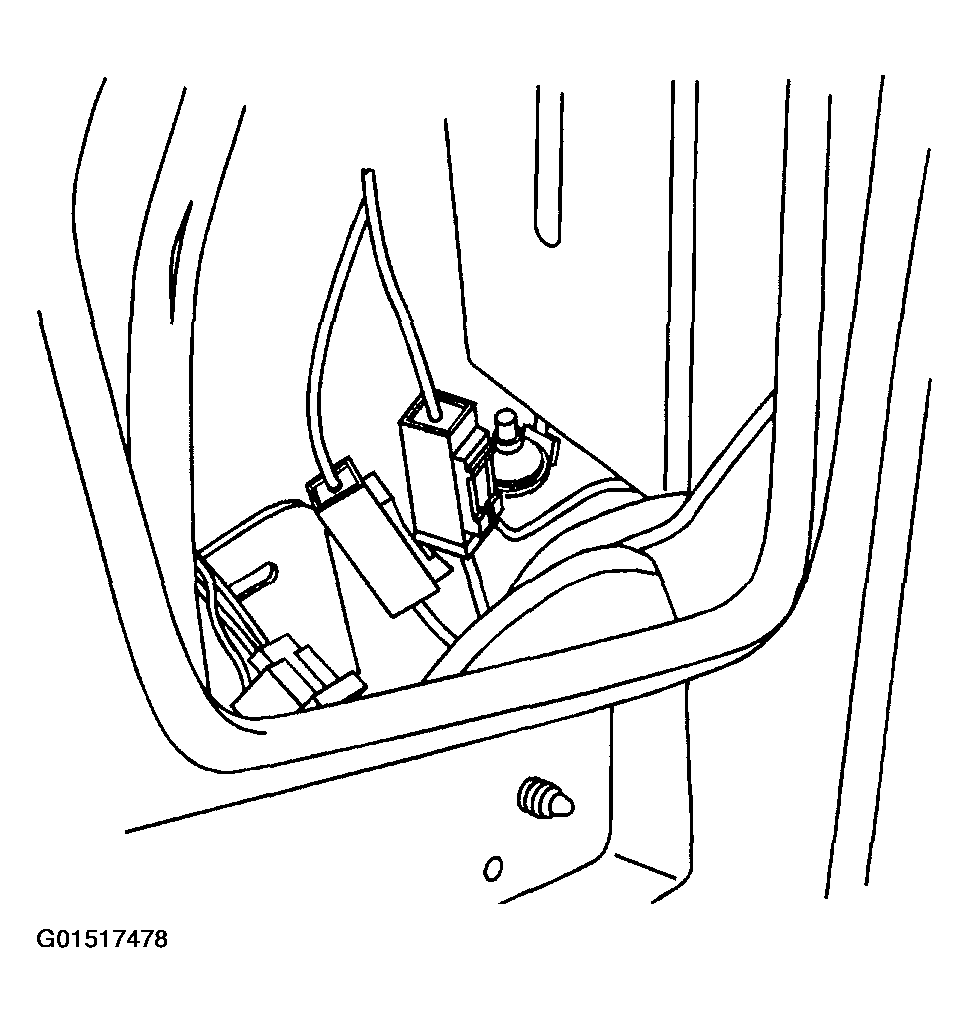

    Fig 2: Coaxial Cable Removal Procedure (2 Of 2)
    G01517478Courtesy of GENERAL MOTORS CORP.
