Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the antenna cable retainers to the receiver bracket.
  2. Connect the antenna cable to the digital radio receiver.

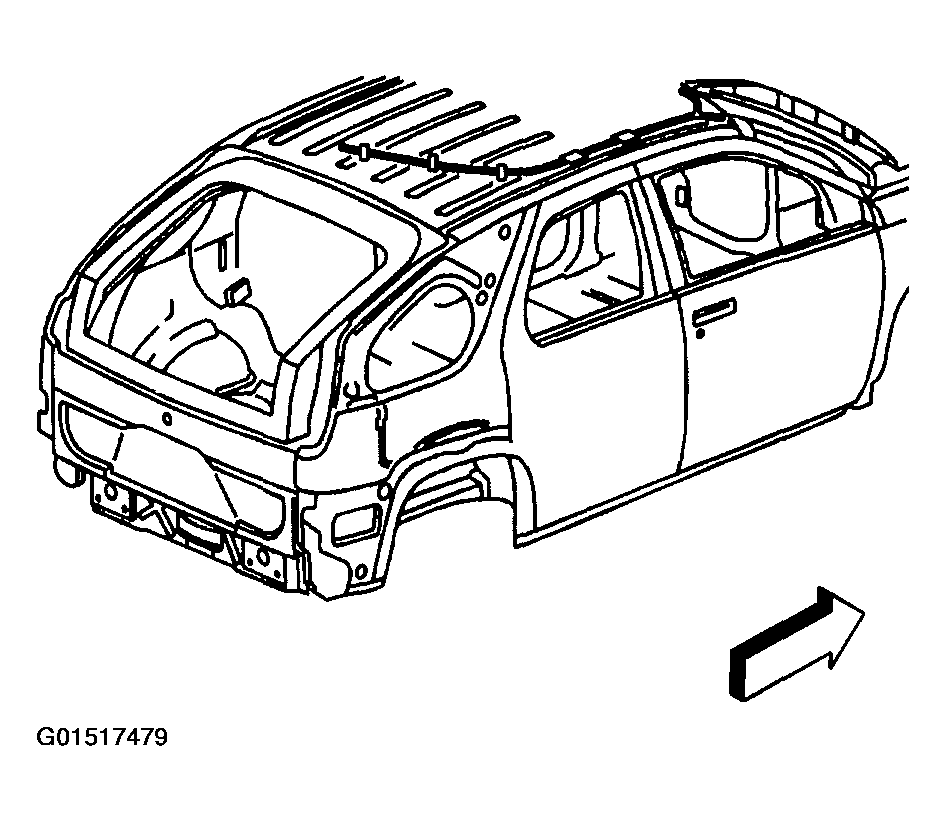

    Fig 1: Coaxial Cable Installing Procedure (1 Of 3)
    G01517479Courtesy of GENERAL MOTORS CORP.
  3. Install the cable connectors to the right side end cap on the I/P.
  4. Install the right rear compartment trim panel.

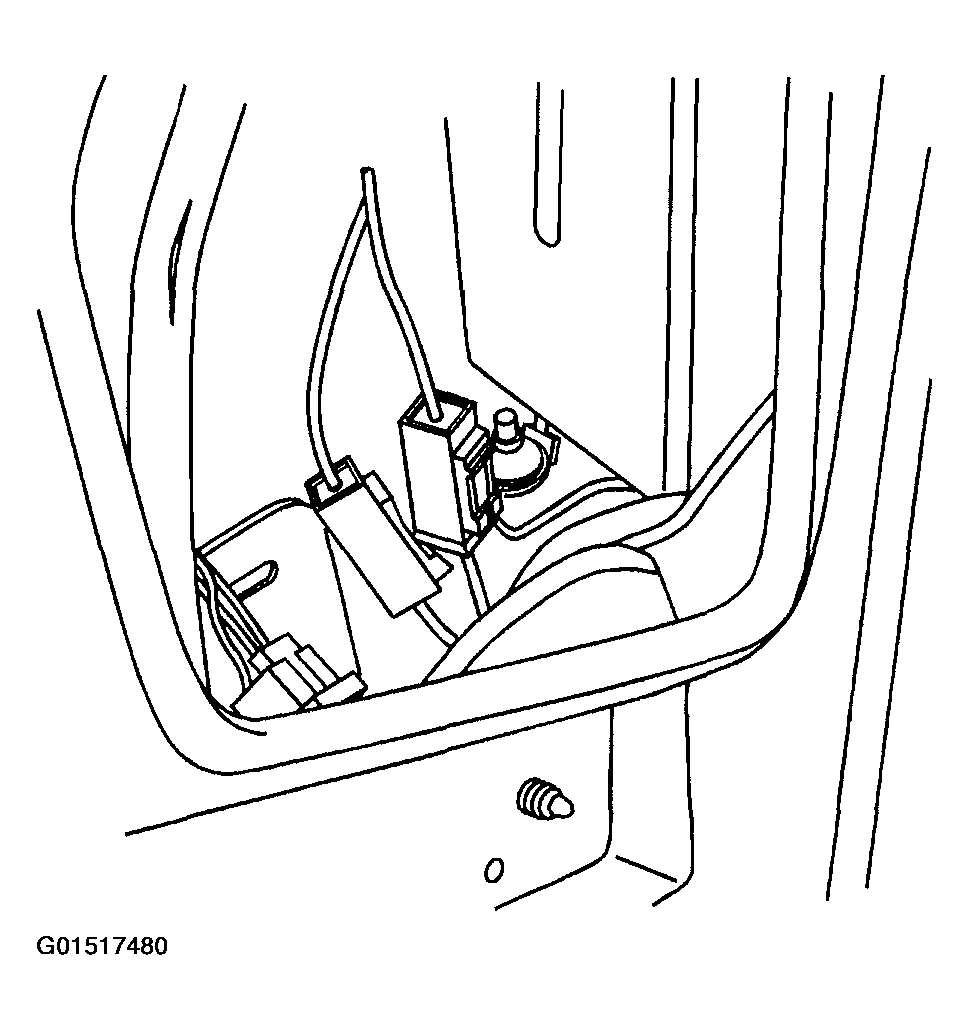

    Fig 2: Coaxial Cable Installing Procedure (2 Of 3)
    G01517480Courtesy of GENERAL MOTORS CORP.
  5. Install the antenna cable retainer clips.
  6. Connect the antenna cable to the antenna base cable connector.
  7. Install the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .

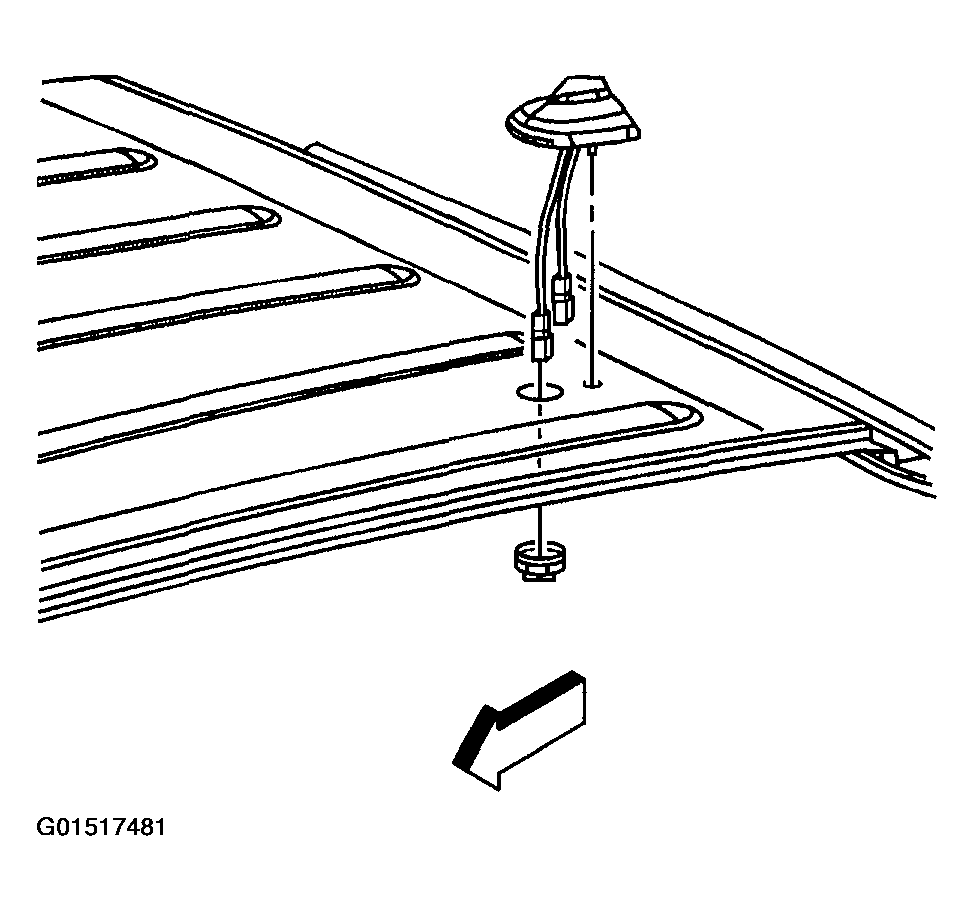

    Fig 3: Coaxial Cable Installing Procedure (3 Of 3)
    G01517481Courtesy of GENERAL MOTORS CORP.
