Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Raise the front armrest.
Remove 2 screws that secure the rear console trim plate.

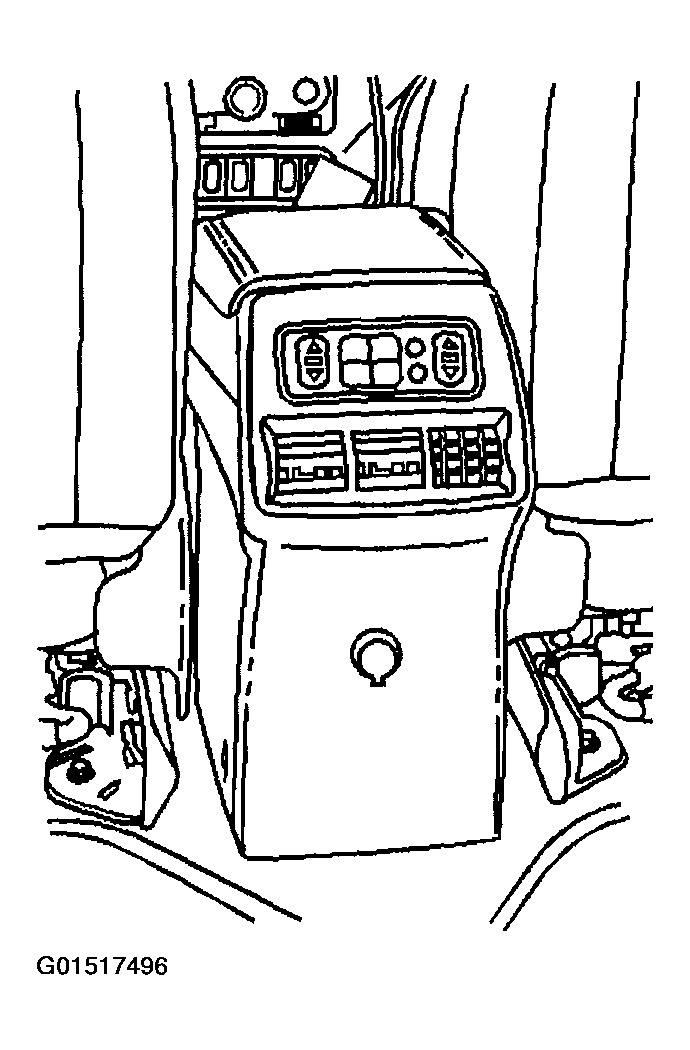

Fig 1: Removing Rear Console Trim Plate Screws
Courtesy of GENERAL MOTORS CORP.
Pull the trim plate away from the console.
Disconnect the electrical connectors.

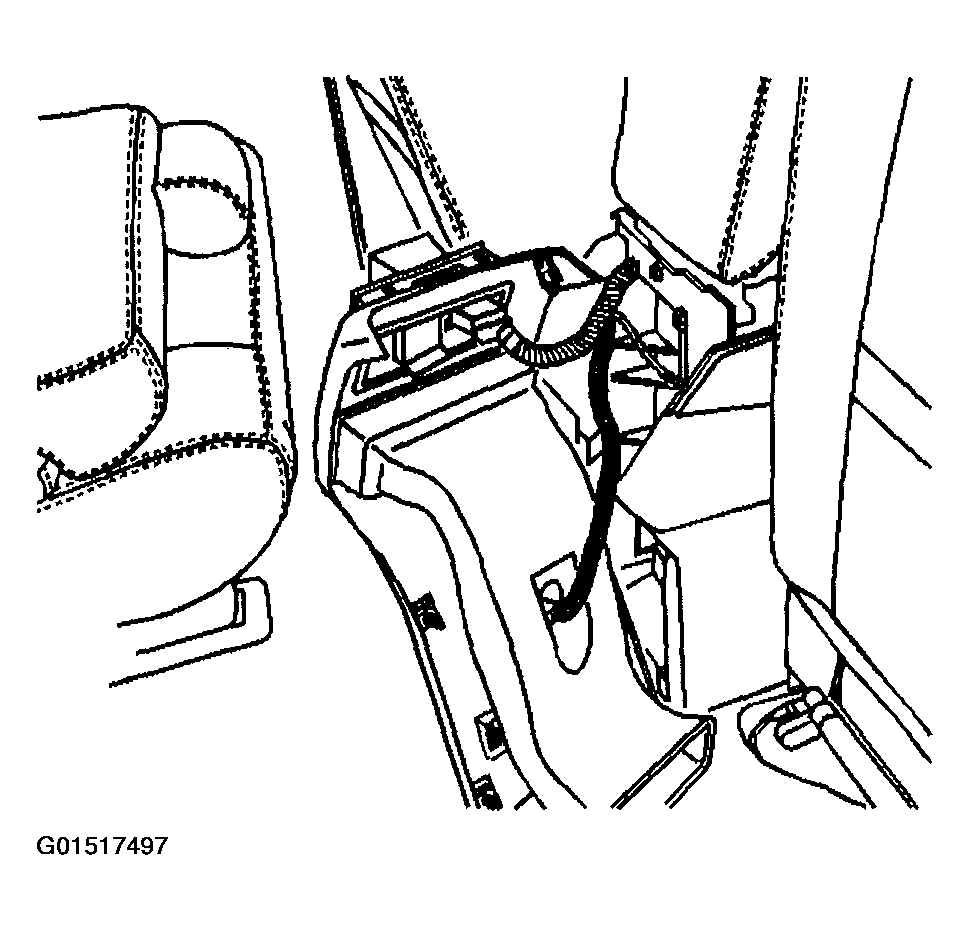

Fig 2: Disconnecting Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Press the back of the audio control to release the control from the trim plate.
Remove the second seat audio control.

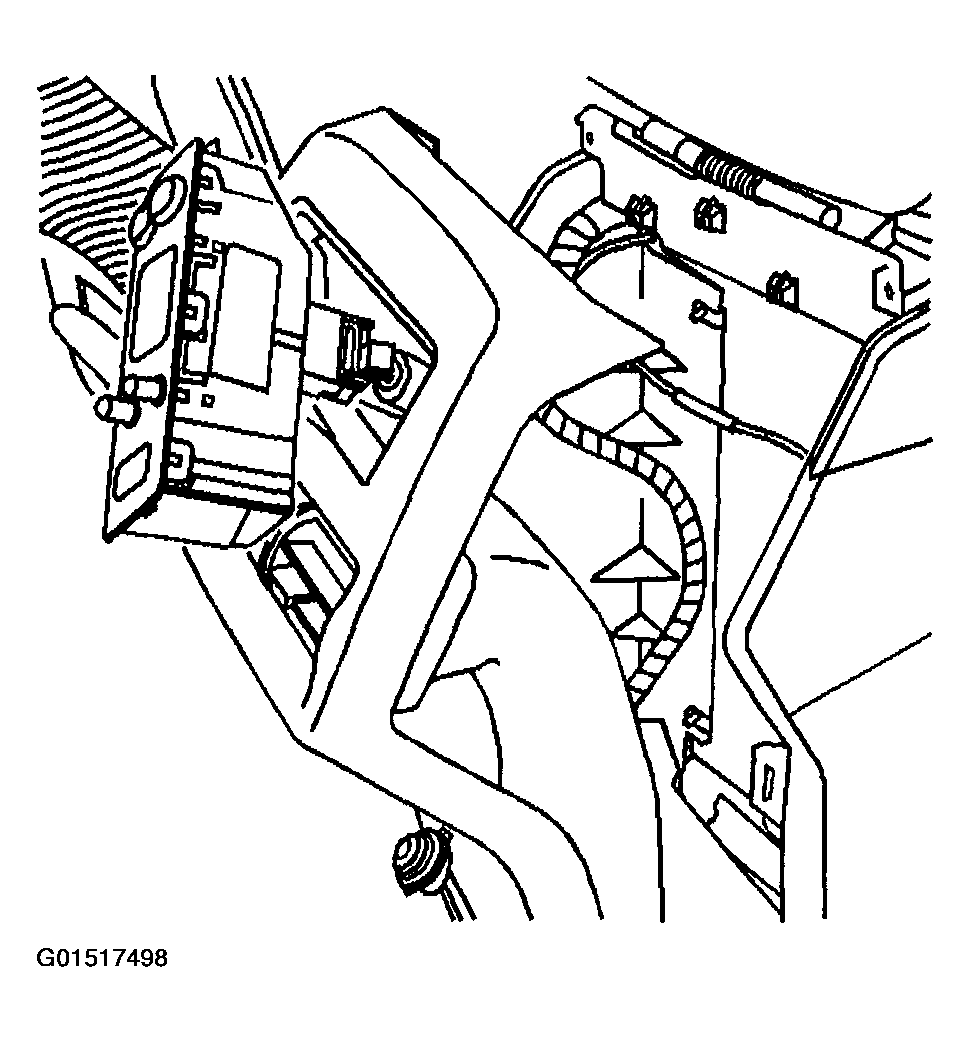

Fig 3: Removing Second Seat Audio Control
Courtesy of GENERAL MOTORS CORP.
