Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Press the second seat audio control into the rear console trim plate.
Connect the electrical connectors to the audio control

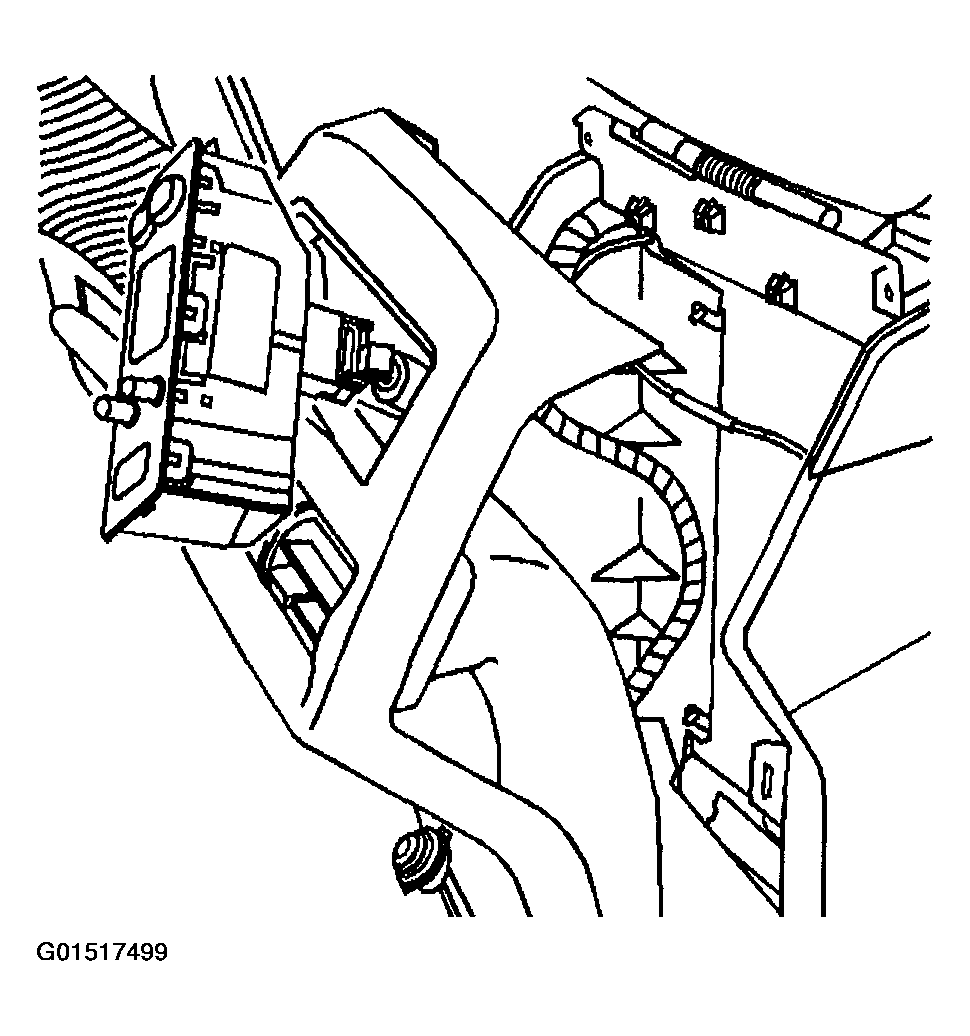

Fig 1: Connecting Electrical Connectors To Audio Control
Courtesy of GENERAL MOTORS CORP.
Press the trim plate onto the center console.

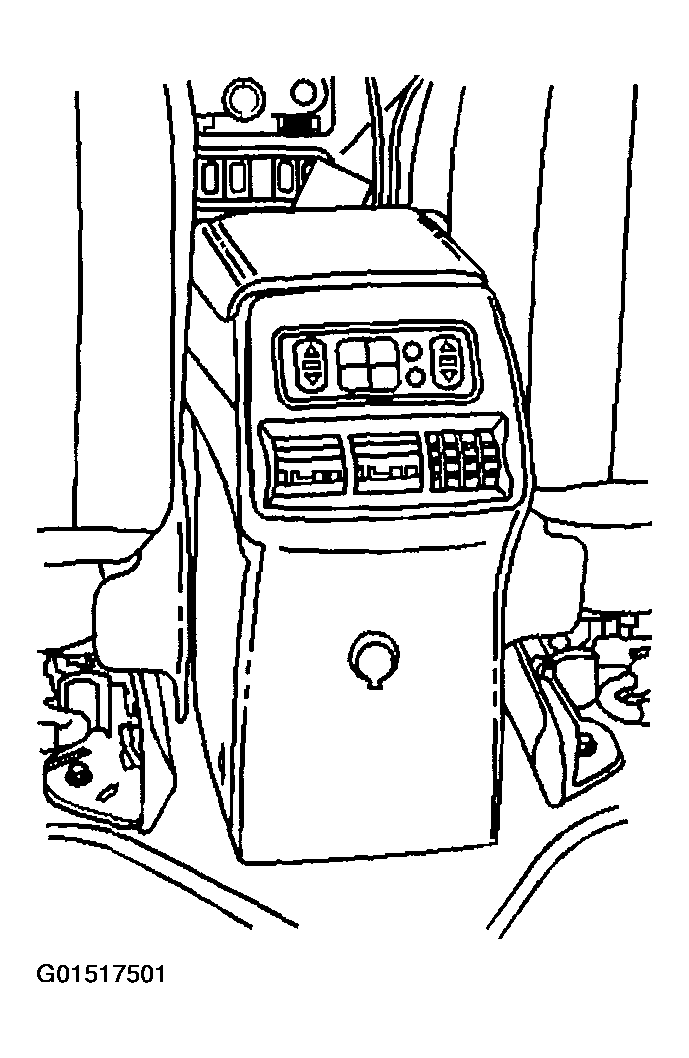

Fig 2: Installing Trim Plate Onto Center Console
Courtesy of GENERAL MOTORS CORP.
Install 2 screws that secure the rear console trim plate.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Close the front armrest.

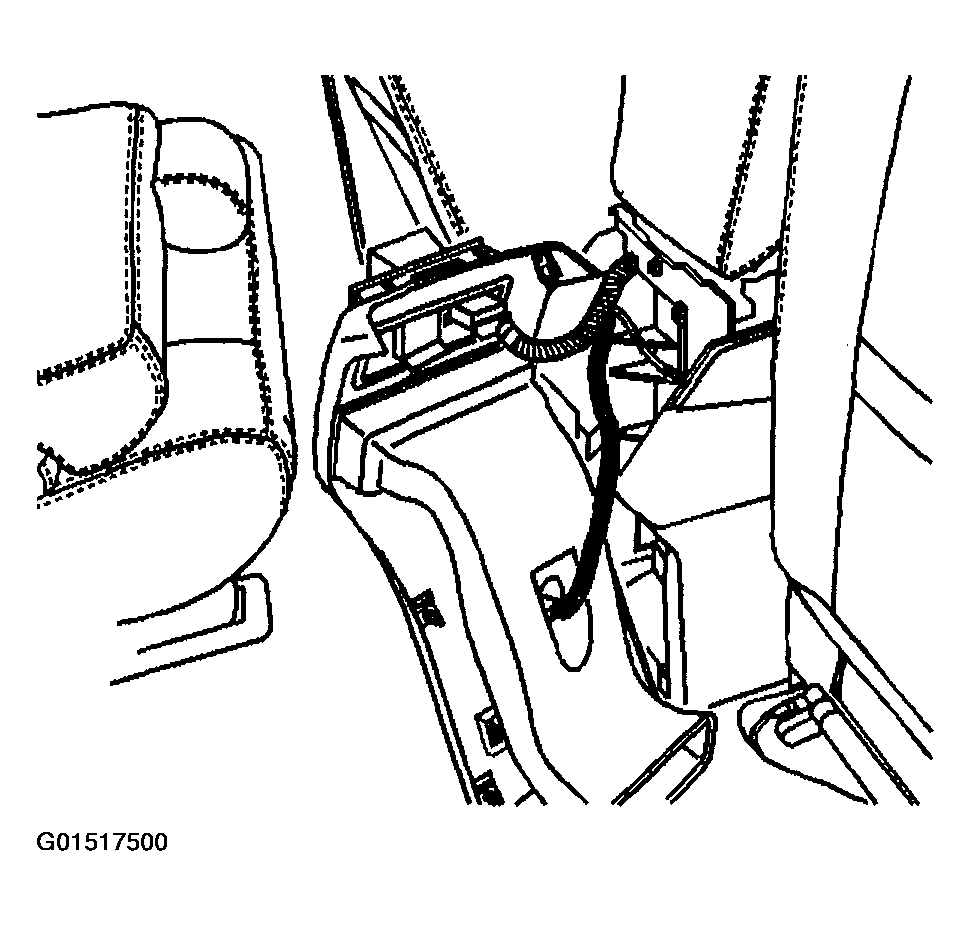

Fig 3: Installing Rear Console Trim Plate Screws
Courtesy of GENERAL MOTORS CORP.
