Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the antenna base cables through the roof opening.
    Fig 1: Connecting Antenna Base Cables
    G01517468Courtesy of GENERAL MOTORS CORP.
  2. Install the antenna base to the roof.

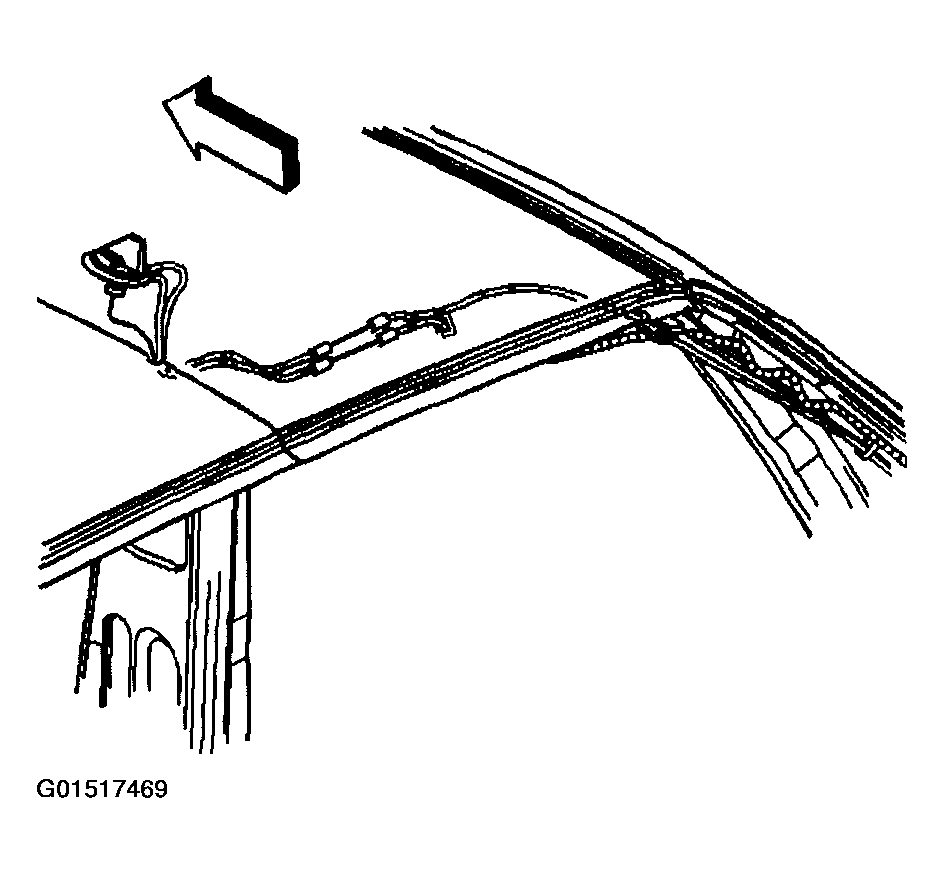

    Fig 2: Installing Antenna Base To Roof
    G01517469Courtesy of GENERAL MOTORS CORP.
  3. Secure the antenna base with the bolt.

    Tighten

    Tighten the bolt to 3 N.m (27 lb in).

  4. Connect the antenna cables to the antenna base cable connectors.
  5. Install the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .

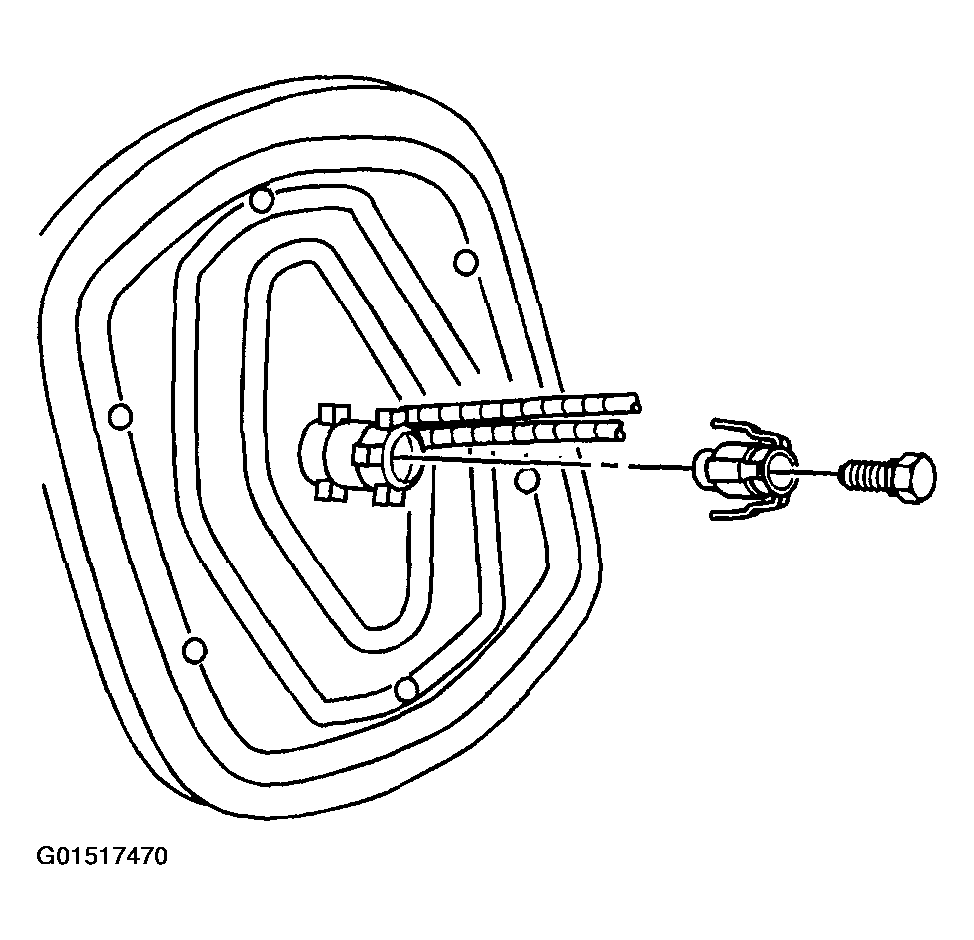

    Fig 3: Installing Antenna Base With Bolt
    G01517470Courtesy of GENERAL MOTORS CORP.
