Steering Wheel Controls Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

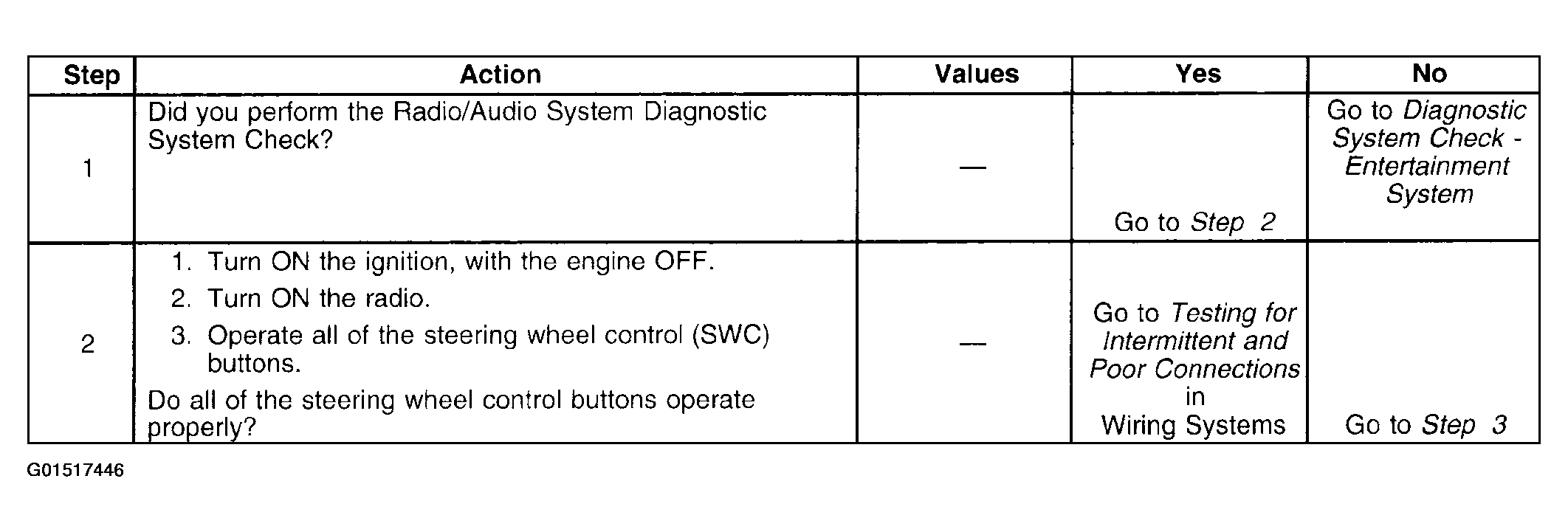

Fig 1: Steering Wheel Controls Inoperative Diagnosis (Steps 1-2)

Courtesy of GENERAL MOTORS CORP.

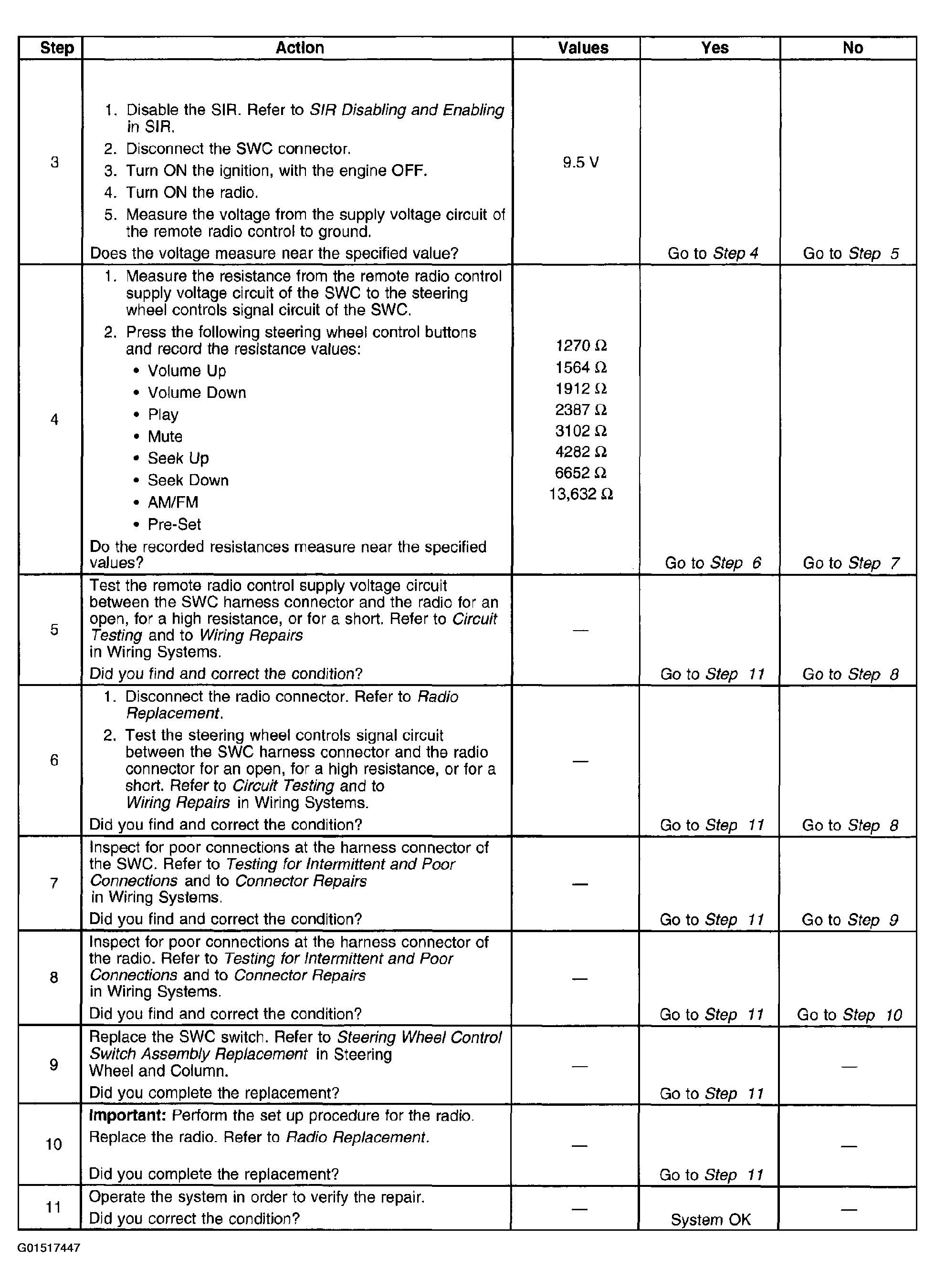

Fig 2: Steering Wheel Controls Inoperative Diagnosis (Steps 3-11)

Courtesy of GENERAL MOTORS CORP.
