Test Description

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Clear all DTCs and radio theft information. Cycle the ignition in order for the radio to learn the VIN.
  2. 3. Clear all DTCs after the repair procedure is complete.

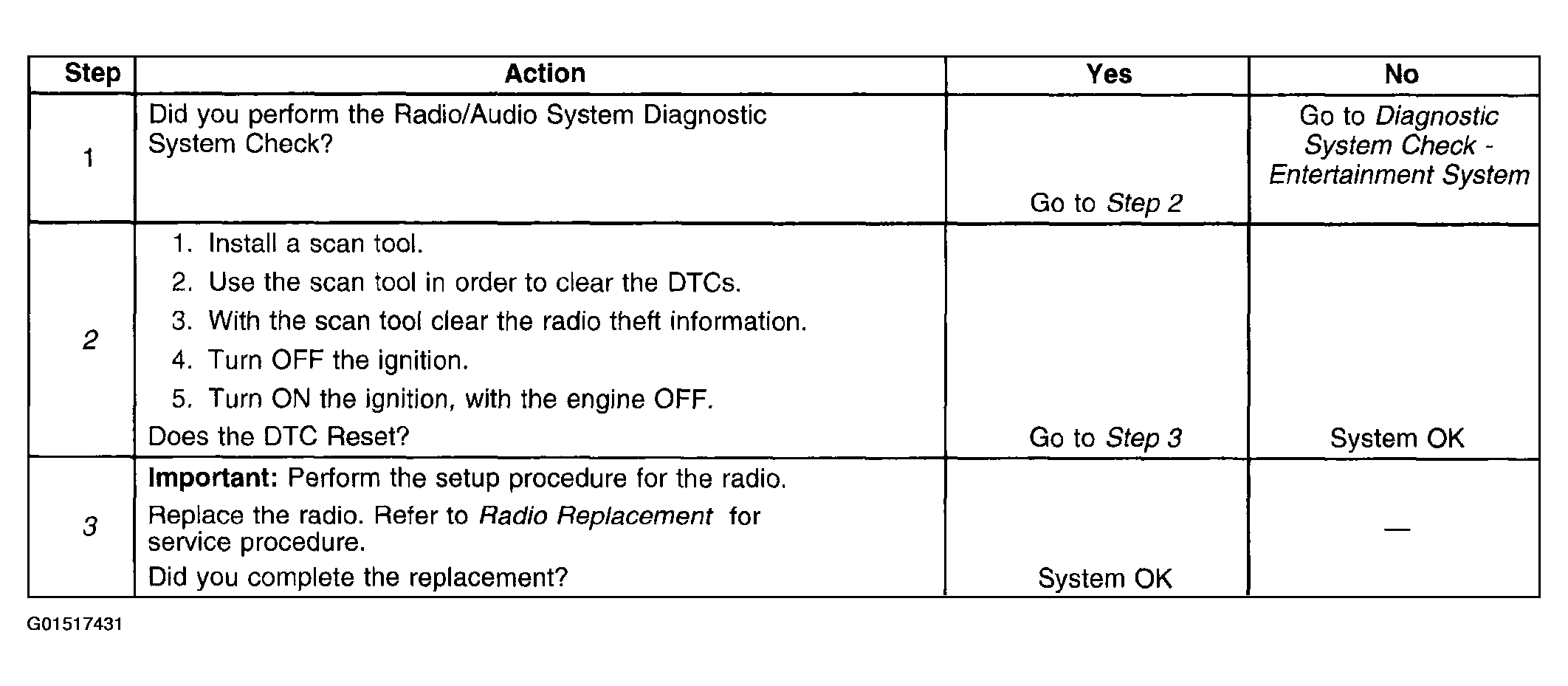

    Fig 1: DTC B1708 Diagnosis
    G01517431Courtesy of GENERAL MOTORS CORP.
