Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Lower the sunshade and raise the mirror and the lamp cover (the door).

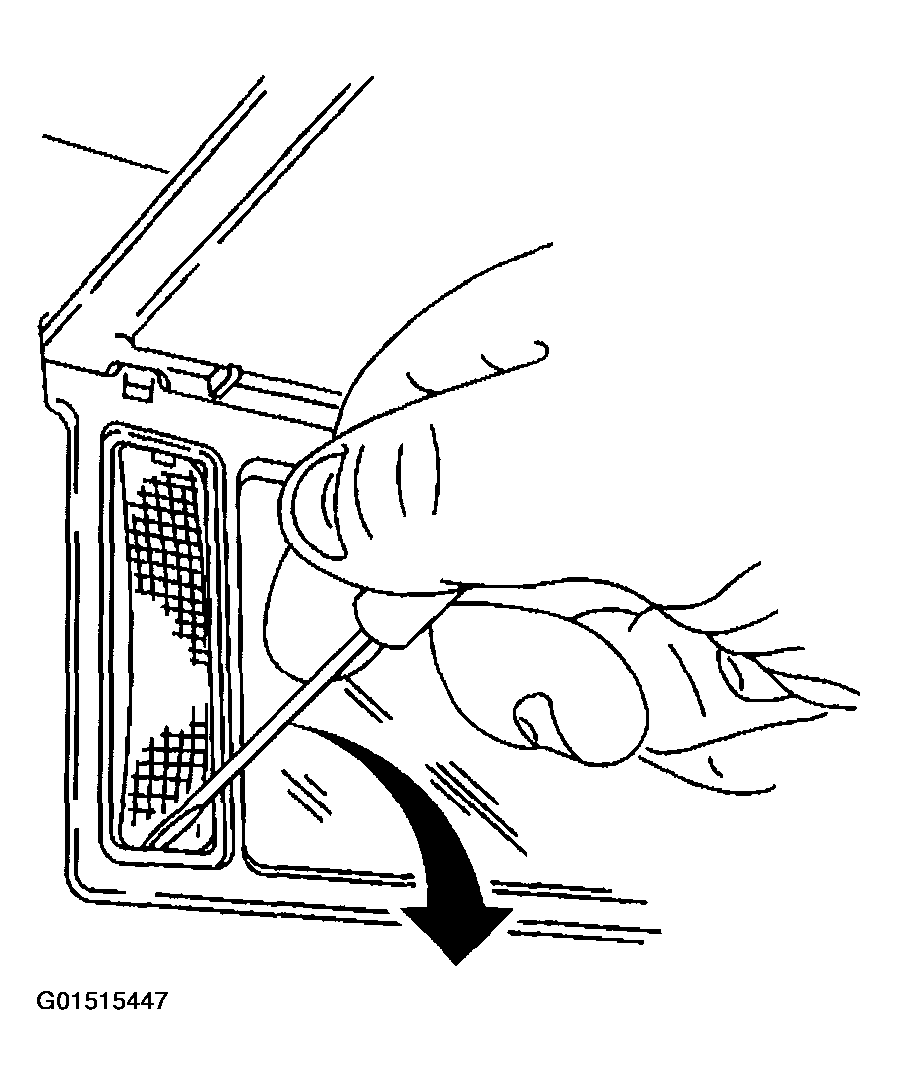

Insert a small flat-bladed tool at the lower edge of the vanity mirror lamp lens then press down to release the lens.

Fig 1: Vanity Mirror Lamp Bulb Removal (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

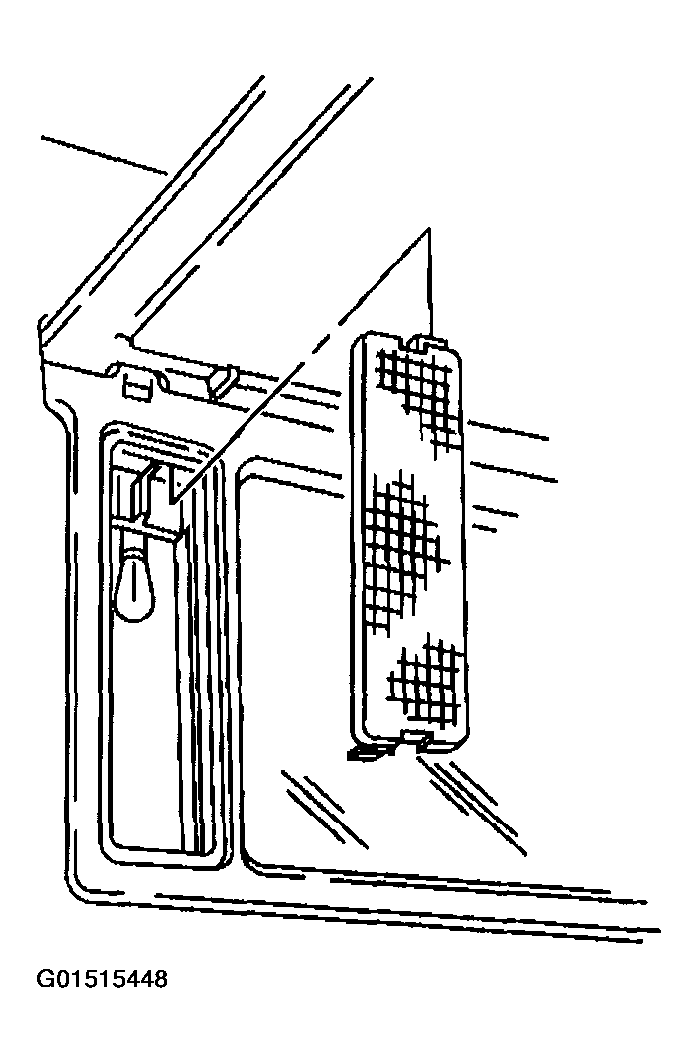

Remove the vanity mirror lamp lens from the sunshade.

Fig 2: Vanity Mirror Lamp Bulb Removal (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

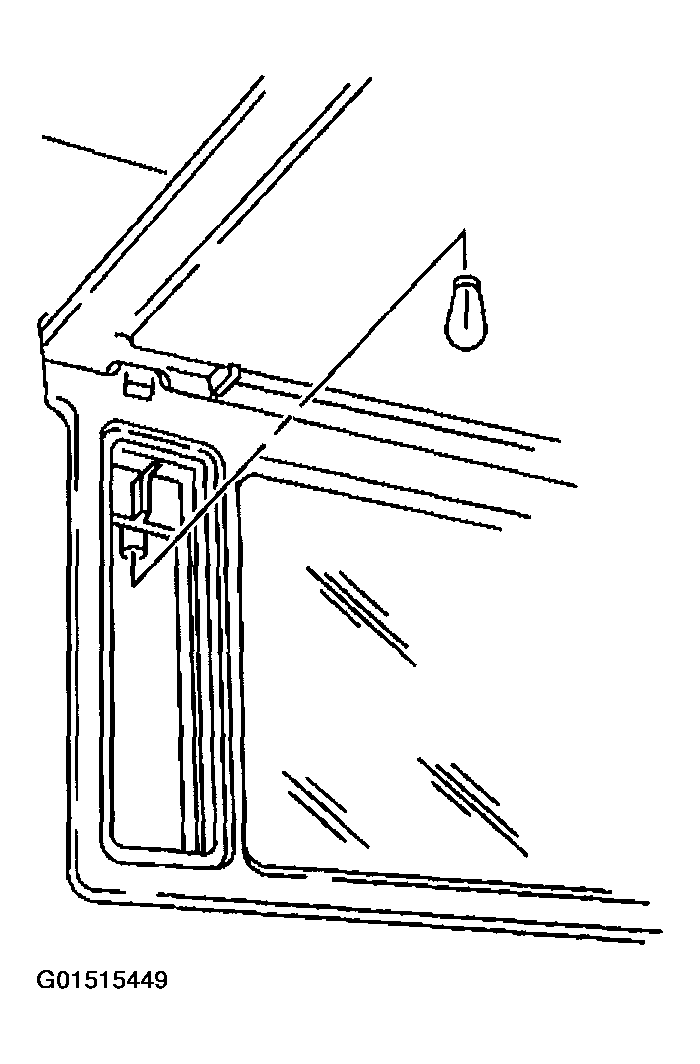

Remove the bulb from the socket.

Fig 3: Vanity Mirror Lamp Bulb Removal (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
