Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the front parking/sidemarker lamp socket, if replacing the bulb.

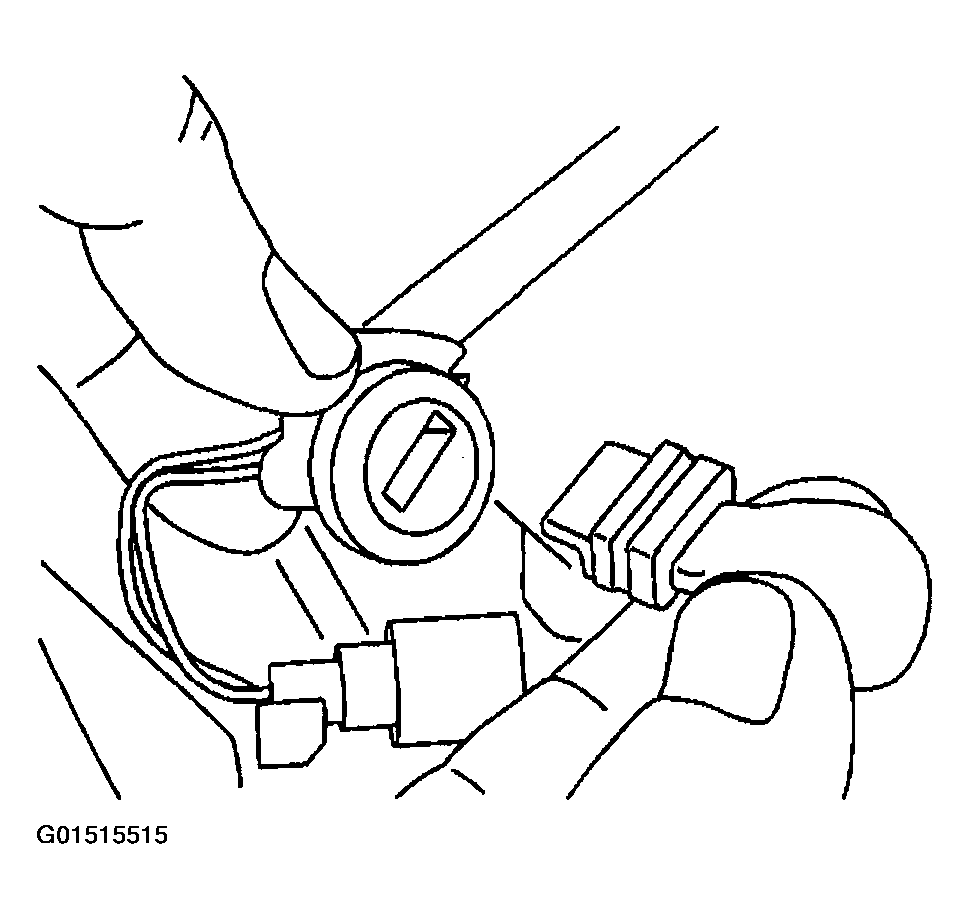

Fig 1: Park/Turn Signal Lamp Installation - Rendezvous (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Install the front parking/sidemarker lamp socket, turning the socket clockwise until the locking tab is fully seated.
Close the hood.

Fig 2: Park/Turn Signal Lamp Installation - Rendezvous (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
