Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.

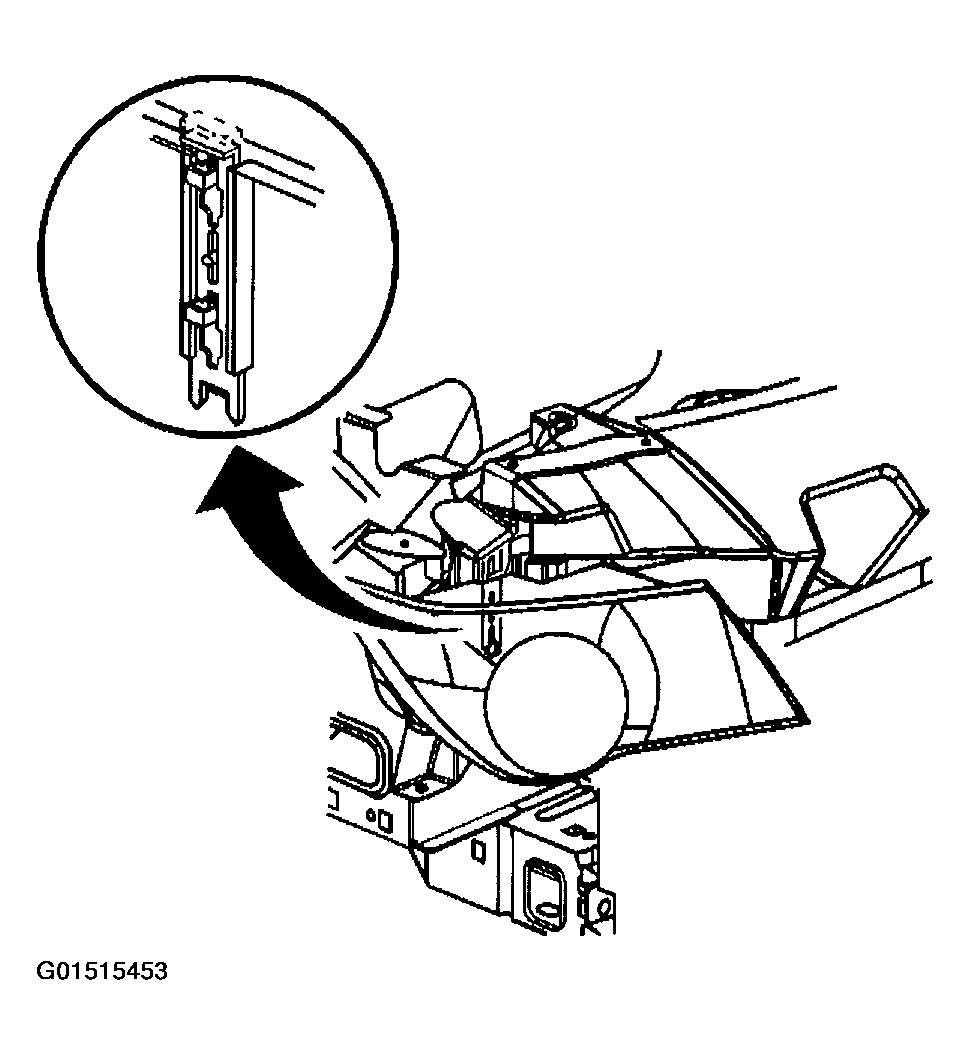

Fig 1: Headlamp Assembly or Headlamp Bulb Removal - Aztek (1 Of 7)
Courtesy of GENERAL MOTORS CORP.
Disconnect the headlamp retainer, by pulling up.
Pull the headlamp from the lower center corner, in order to release the ball studs from the grommet retainers.

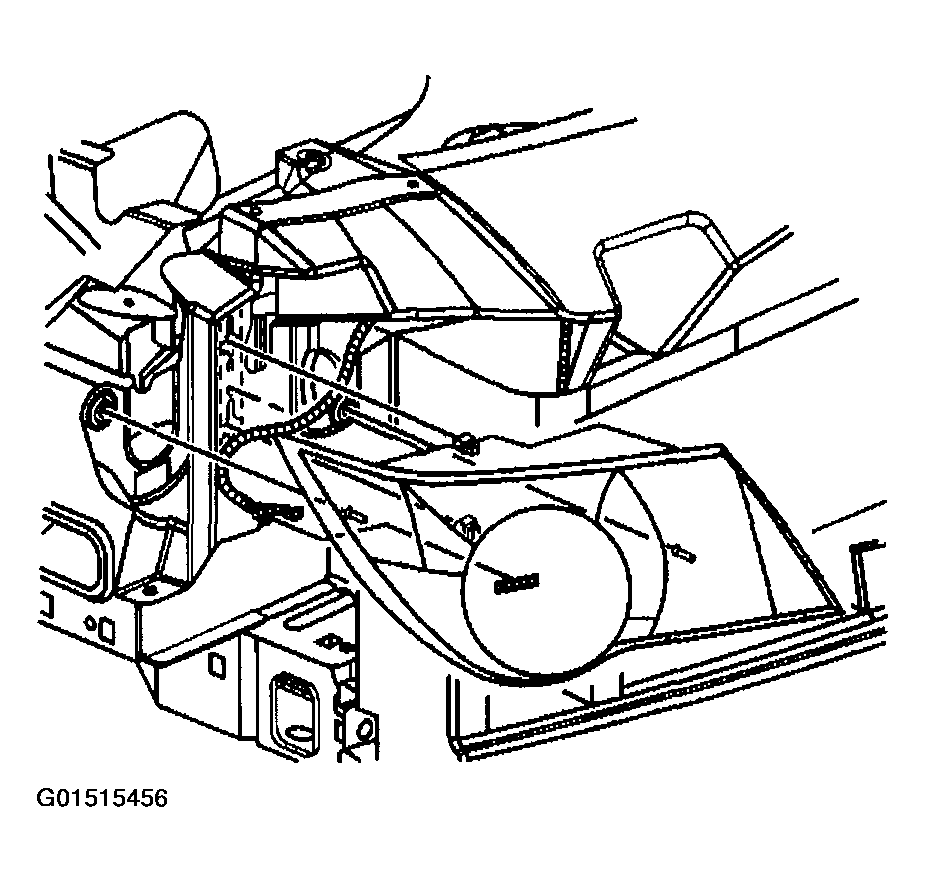

Fig 2: Headlamp Assembly or Headlamp Bulb Removal - Aztek (2 Of 7)
Courtesy of GENERAL MOTORS CORP.
Remove the headlamp from the upper fascia support.

Fig 3: Headlamp Assembly or Headlamp Bulb Removal - Aztek (3 Of 7)
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the headlamp.
Remove the headlamp from the vehicle.

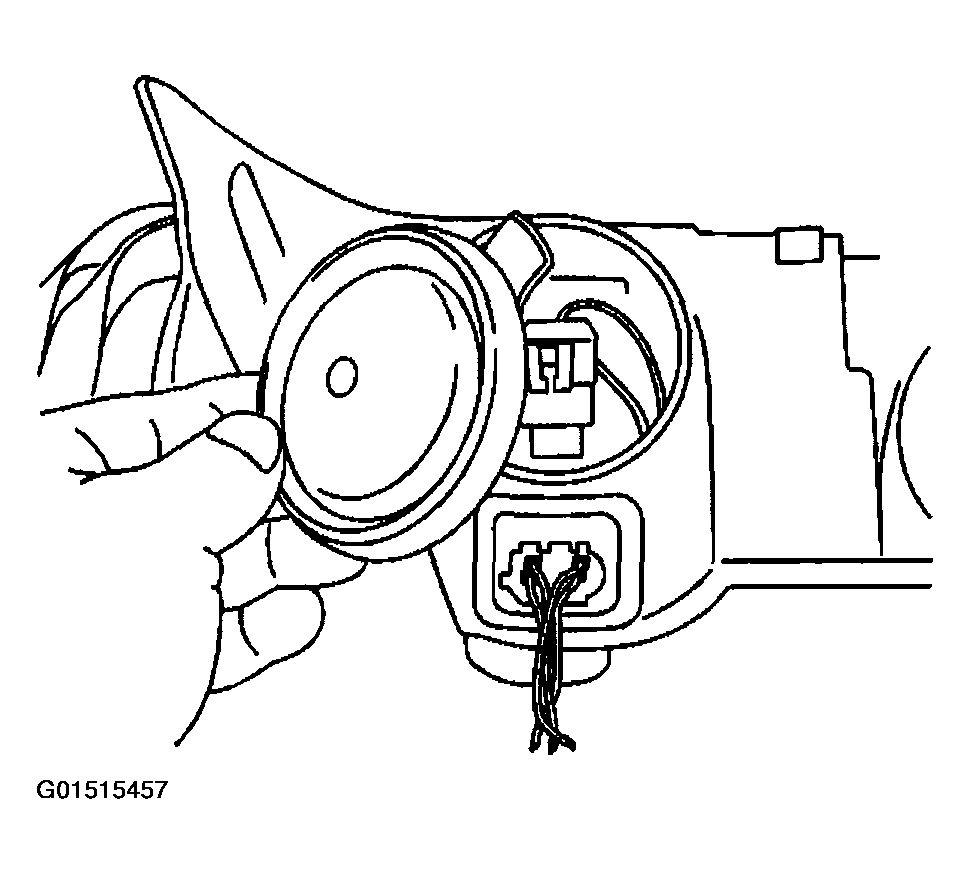

Fig 4: Headlamp Assembly or Headlamp Bulb Removal - Aztek (4 Of 7)
Courtesy of GENERAL MOTORS CORP.
Remove the rubber access cover from the headlamp for the bulb you are replacing, if required.

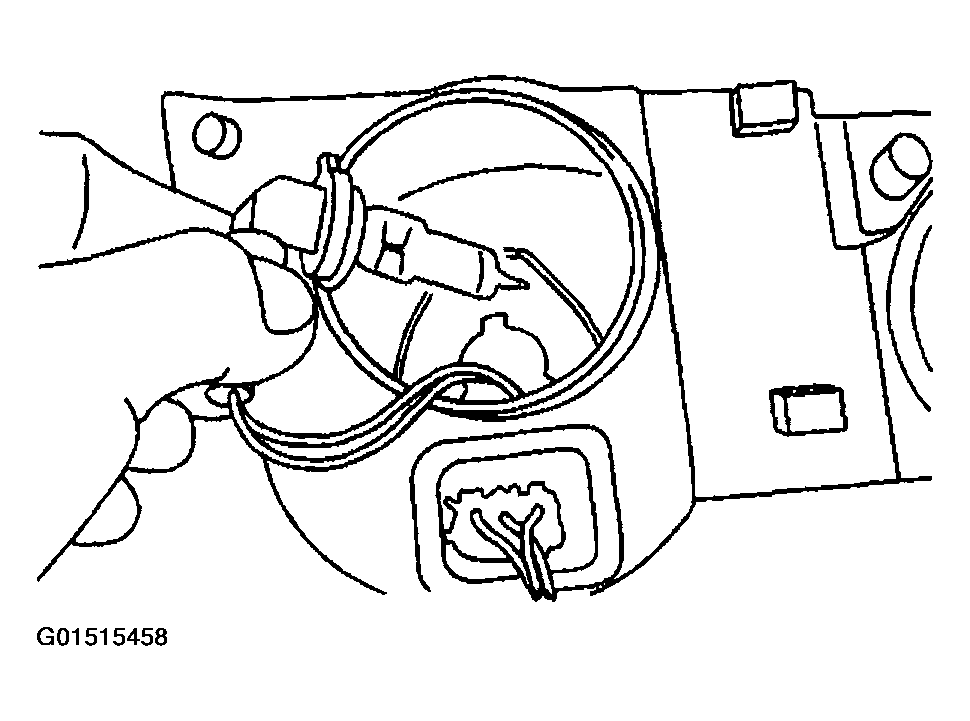

Fig 5: Headlamp Assembly or Headlamp Bulb Removal - Aztek (5 Of 7)
Courtesy of GENERAL MOTORS CORP.
Remove the headlamp bulb from the socket, turning counterclockwise.

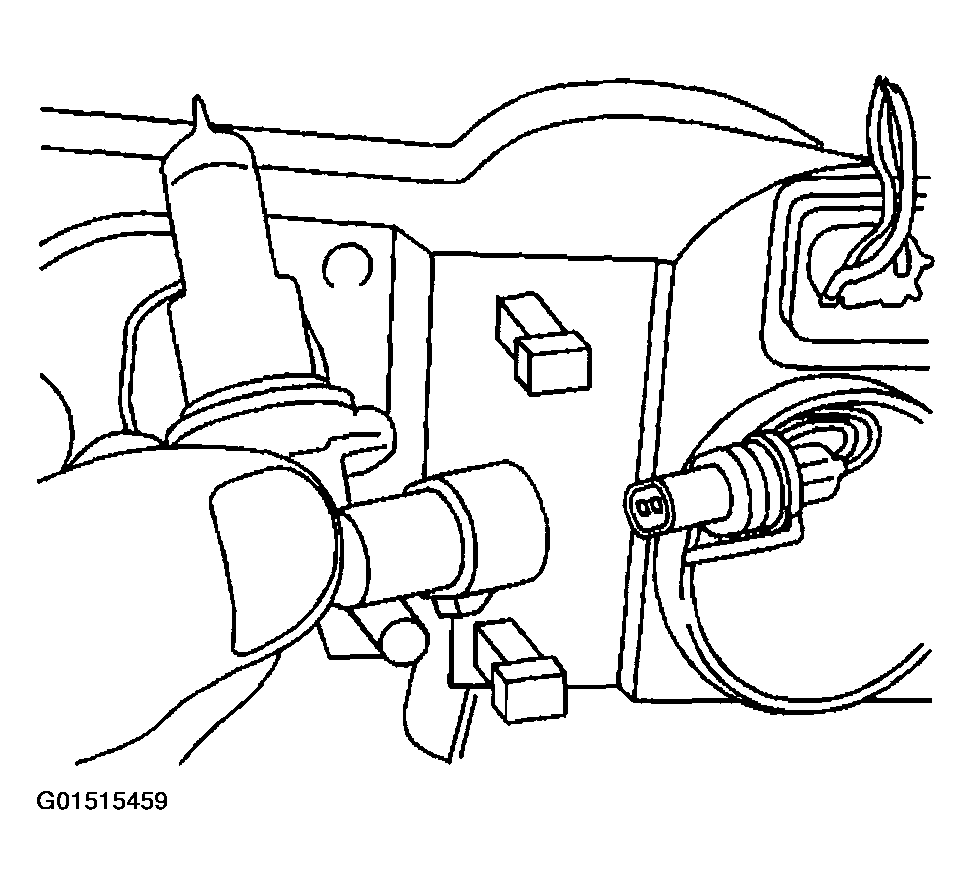

Fig 6: Headlamp Assembly or Headlamp Bulb Removal - Aztek (6 Of 7)
Courtesy of GENERAL MOTORS CORP.
Remove the headlamp bulb from the socket, if required.

Fig 7: Headlamp Assembly or Headlamp Bulb Removal - Aztek (7 Of 7)
Courtesy of GENERAL MOTORS CORP.
