Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fog lamp to the front bumper fascia.

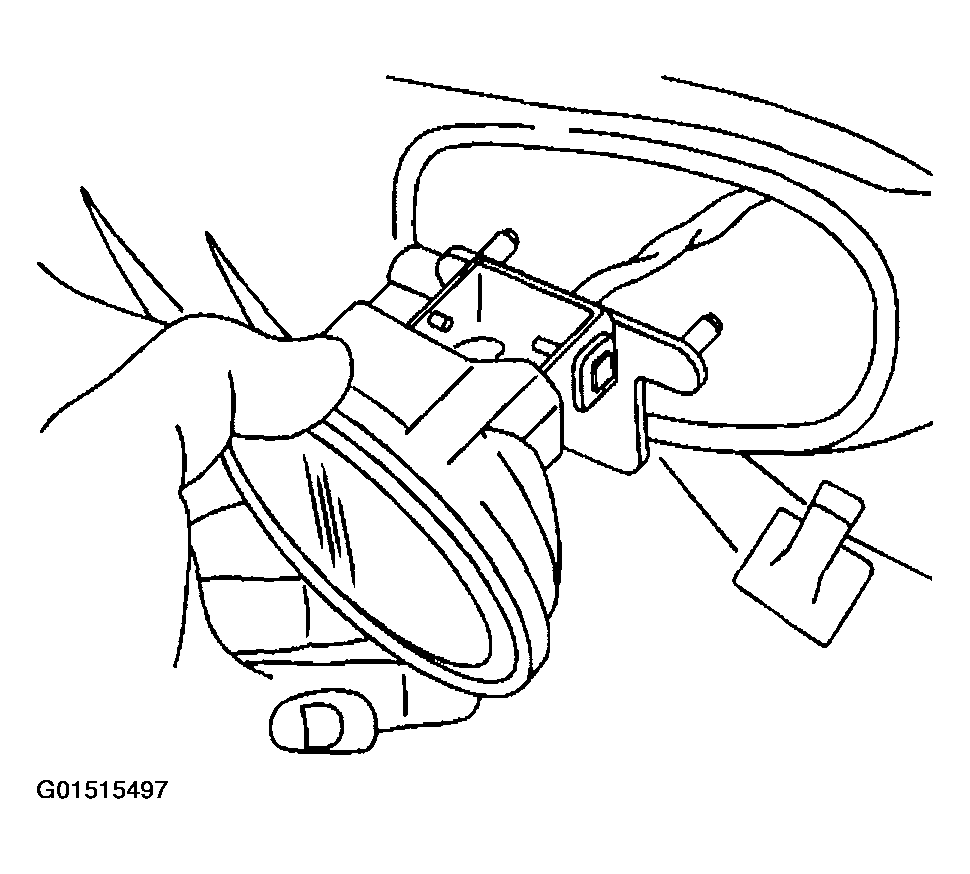

    Fig 1: Front Fog Lamp Installation Procedure - Rendezvous (1 Of 2)
    G01515497Courtesy of GENERAL MOTORS CORP.
  2. Install the fog lamp nuts (2) to the fog lamp.

    Tighten

    Tighten the fog lamp nuts to 10 N.m (89 lb in).

  3. Connect the fog lamp electrical connector to the fog lamp socket, if removed.
  4. Install the fog lamp socket (3) to the fog lamp by rotating clockwise.
  5. Lower the vehicle.
  6. Check and adjust the fog lamp aim as necessary. Refer to FOG LAMP AIMING PROCEDURE  .

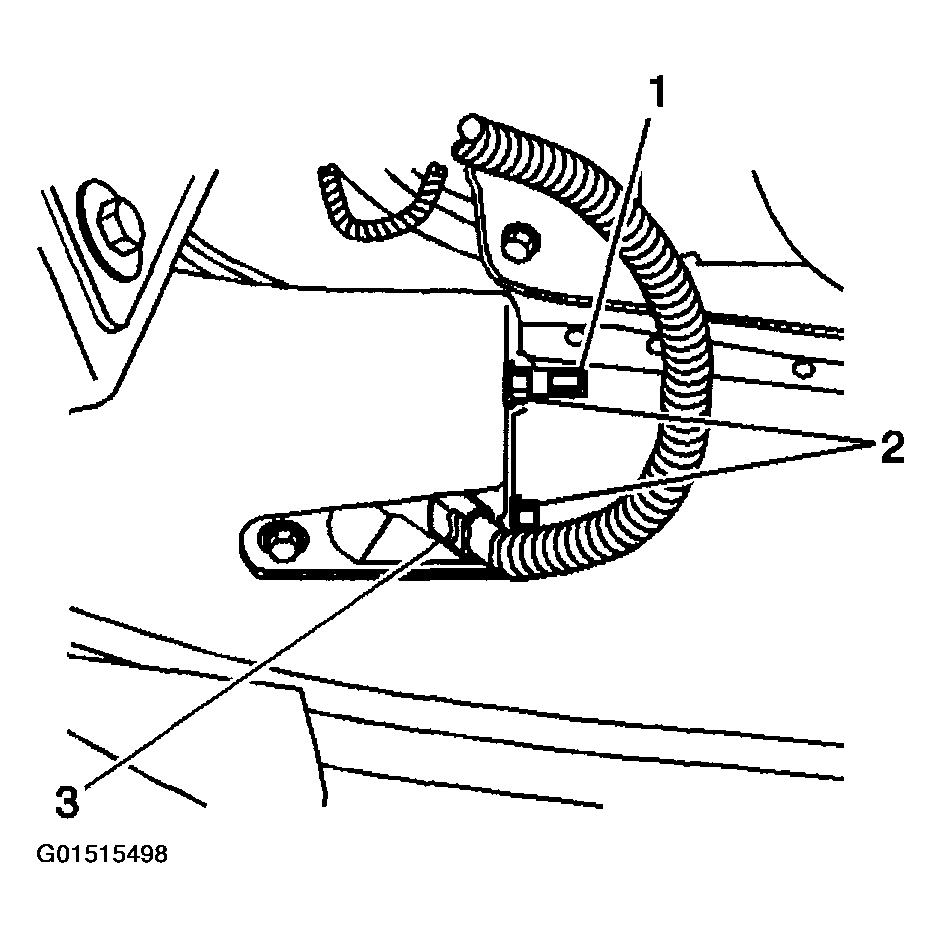

Fig 2: Front Fog Lamp Installation Procedure - Rendezvous (2 Of 2)
G01515498Courtesy of GENERAL MOTORS CORP.
