Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Daytime running lamp ambient light sensor to the daytime running lamp ambient light sensor socket.

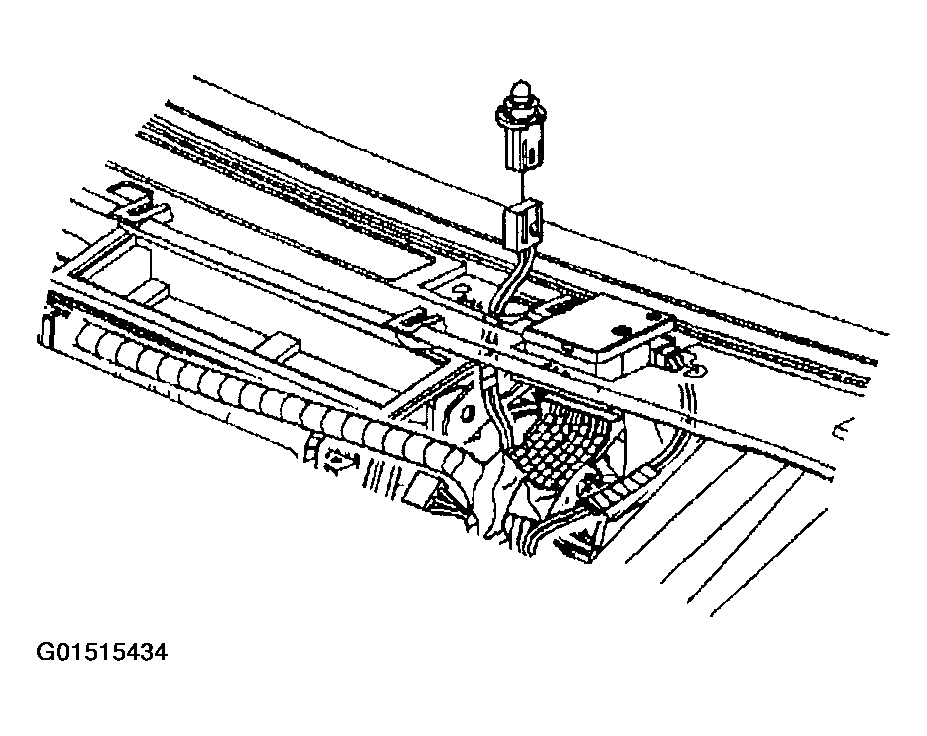

    Fig 1: Daytime Running Lamps (DRL) Ambient Light Sensor Installation (1 Of 2)
    G01515434Courtesy of GENERAL MOTORS CORP.
  2. Install the daytime running lamp ambient light sensor socket to instrument panel trim pad twisting 1/4 turn clockwise.
  3. Install the instrument panel upper trim pad. Refer to TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (AZTEK) or TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) .

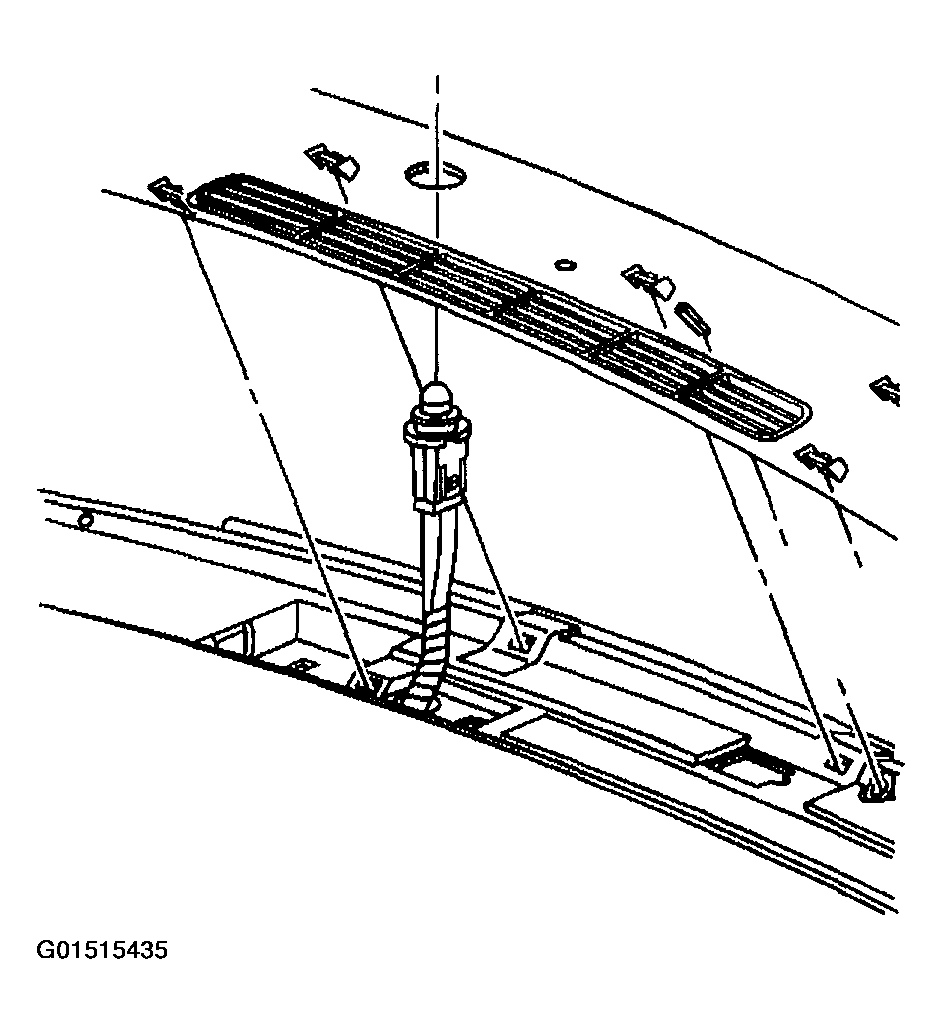

    Fig 2: Daytime Running Lamps (DRL) Ambient Light Sensor Installation (2 Of 2)
    G01515435Courtesy of GENERAL MOTORS CORP.
