Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .
  2. Remove the instrument panel courtesy lamp socket, turning counterclockwise.
  3. Remove the bulb from the instrument panel courtesy lamp socket.

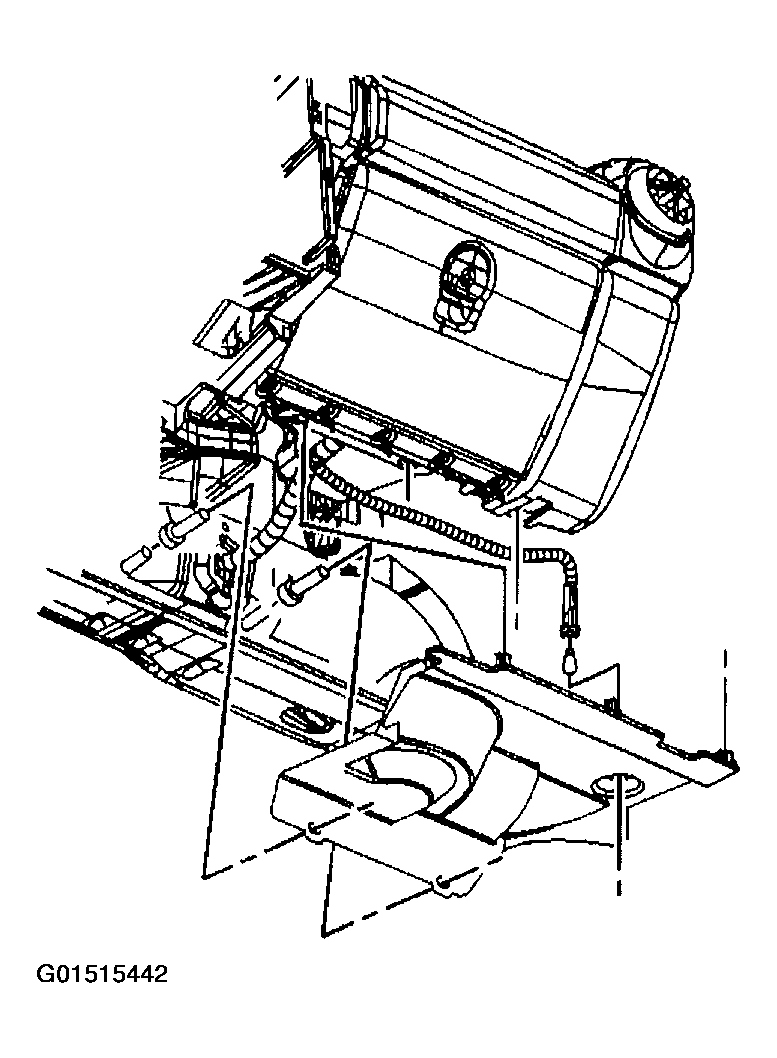

    Fig 1: Removing Courtesy Lamp Replacement - Instrument Panel - Right
    G01515442Courtesy of GENERAL MOTORS CORP.
