Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the instrument panel courtesy lamp socket.
  2. Install the instrument panel courtesy lamp socket turning clockwise.
  3. Install the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .

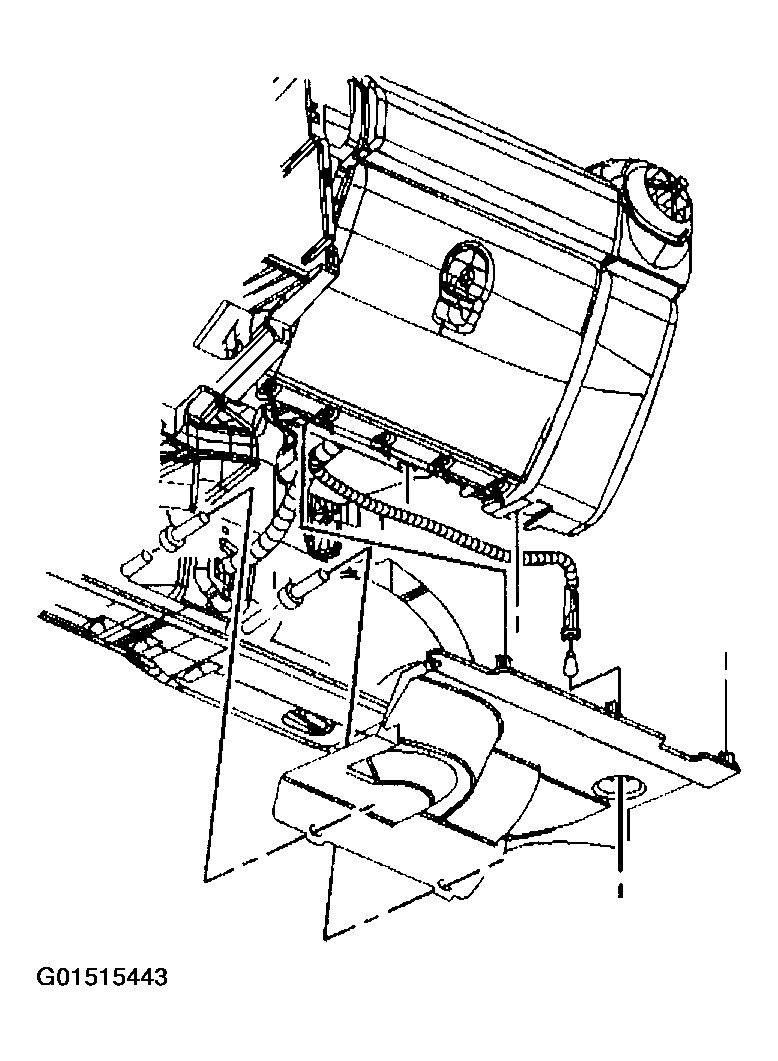

    Fig 1: Installation Courtesy Lamp Replacement - Instrument Panel - Right
    G01515443Courtesy of GENERAL MOTORS CORP.
