Transfer Case Housings Cleaning and Inspection
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Pontiac Aztek, 2003 Oldsmobile Silhouette, 2003 Chevrolet Venture, and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
- Clean all case/housings in solvent.
- Remove all sealant material from the sealing surfaces.

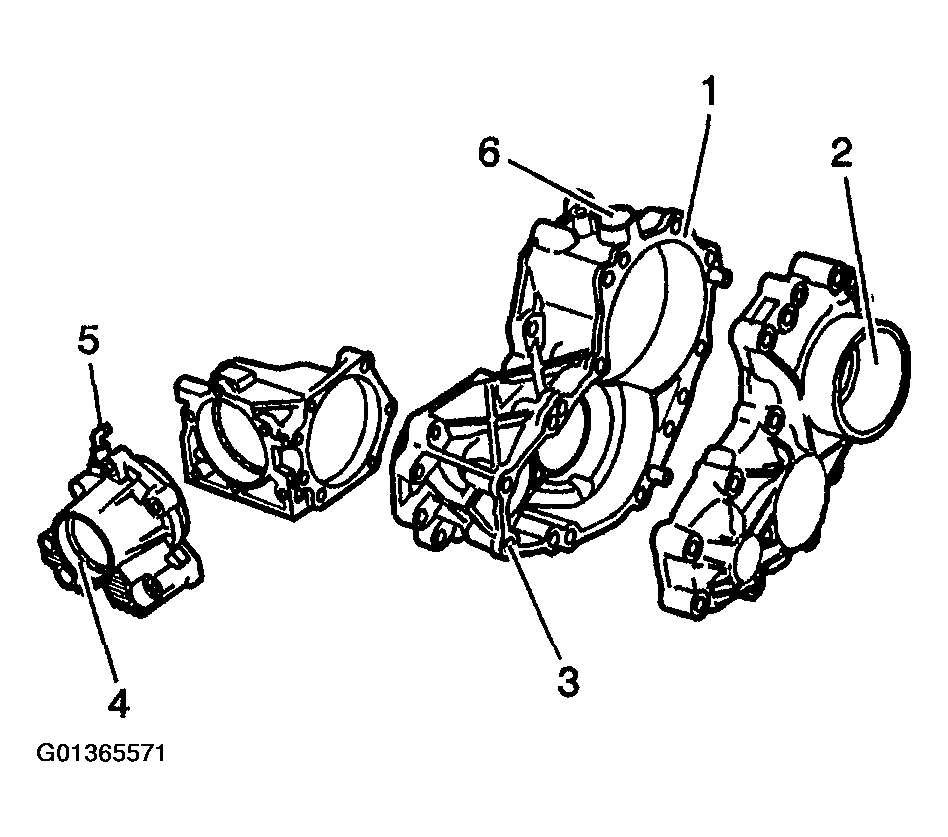

- Inspect for the following:
- Damaged gasket sealing surfaces (1)
- Worn, scored, or loose bearing races or worn bearing race bores (2)
- Damaged bolt threads (3)
- Damaged oil seal bores (4)
- A loose, damaged, or restricted vent tube (5)
- Damaged speed sensor bore (6)
- Porosity
- Damage to the exterior of the case/housings
