Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .
  2. Remove the sunshade stop screw from the sunshade track.
  3. Press the sunshade stop locking tab in and slide the sunshade stop rearward.
  4. Remove the sunshade stop from the sunshade track.

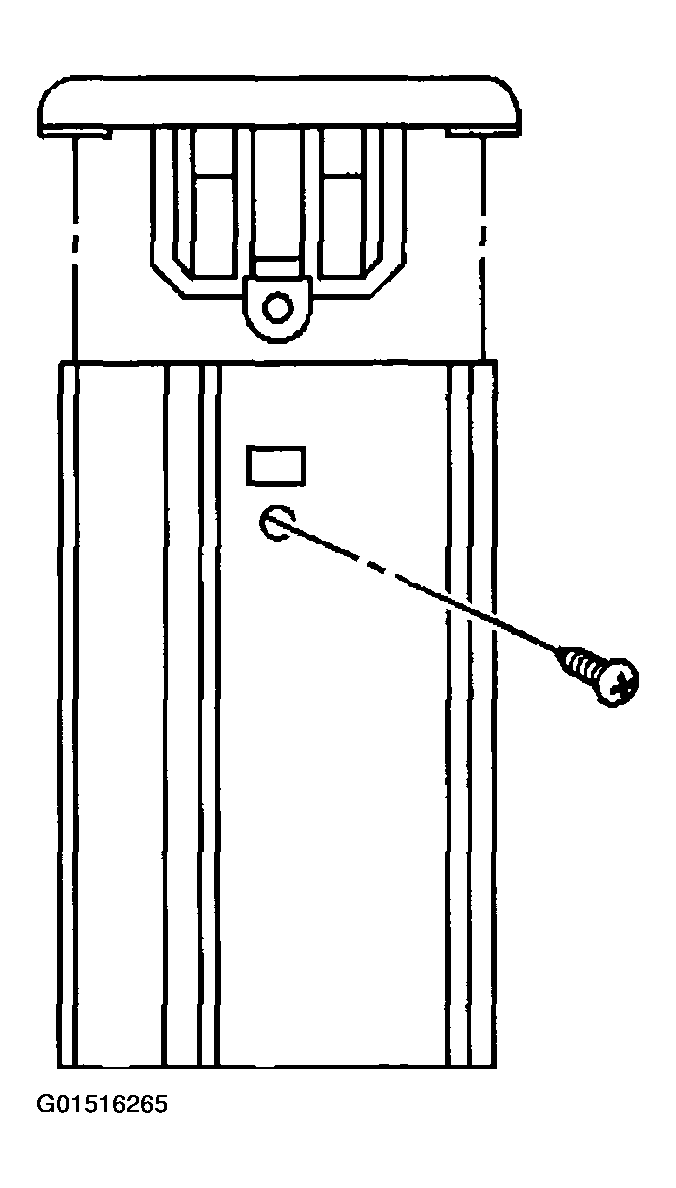

    Fig 1: Removing Sunshade Stop Screw From Sunshade Track
    G01516265Courtesy of GENERAL MOTORS CORP.
