Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunshade stop to the sunshade track.
  2. Press the sunshade stop into the sunshade track until fully seated.
  3. Install the sunshade stop screw to the sunshade track.

    Tighten

    Tighten the sunshade stop screw to 2 N.m (18 lb in).

  4. Install the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .

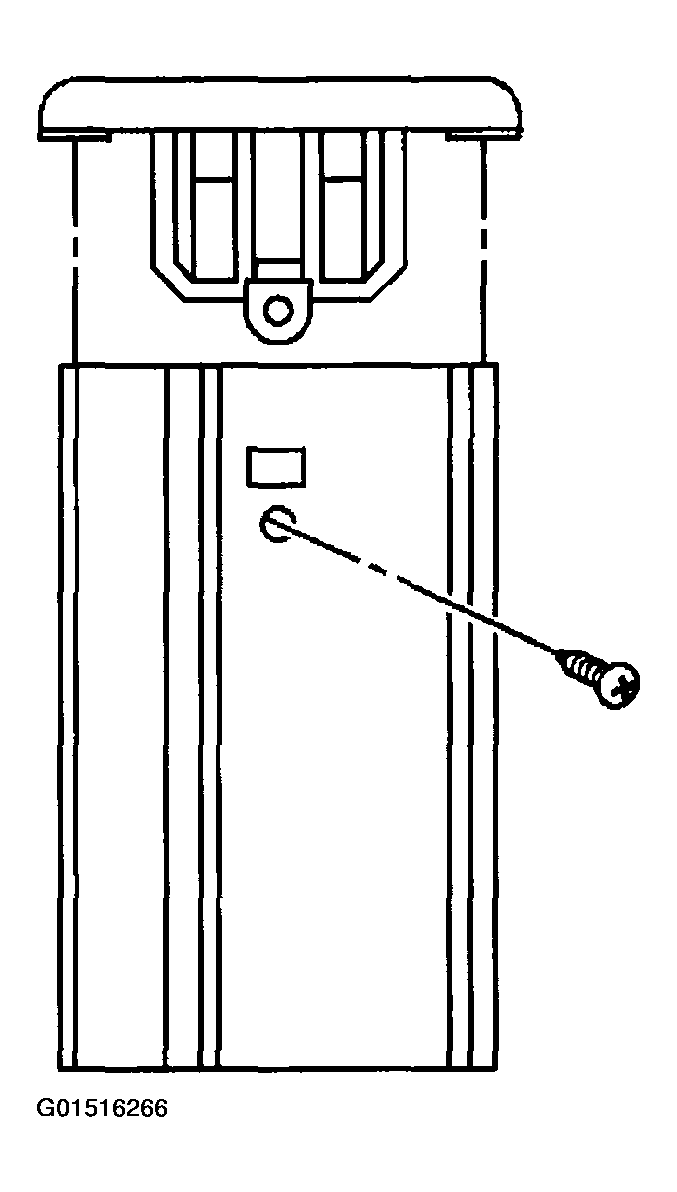

    Fig 1: Installing Sunshade Stop Screw To Sunshade Track
    G01516266Courtesy of GENERAL MOTORS CORP.
