Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunroof window panel from the sunroof module. Refer to SUNROOF WINDOW REPLACEMENT  .
  2. Fully close the sunshade.
  3. From the top of the vehicle, use your thumbs to push the sunshade retainers towards the center of the vehicle.
    Fig 1: Removing Sunroof Sunshade Panel (1 Of 2)
    G01516235Courtesy of GENERAL MOTORS CORP.
  4. Lift upward and slightly forward on the sunshade to clear the rear brace.
  5. Remove the sunshade from the sunroof module.

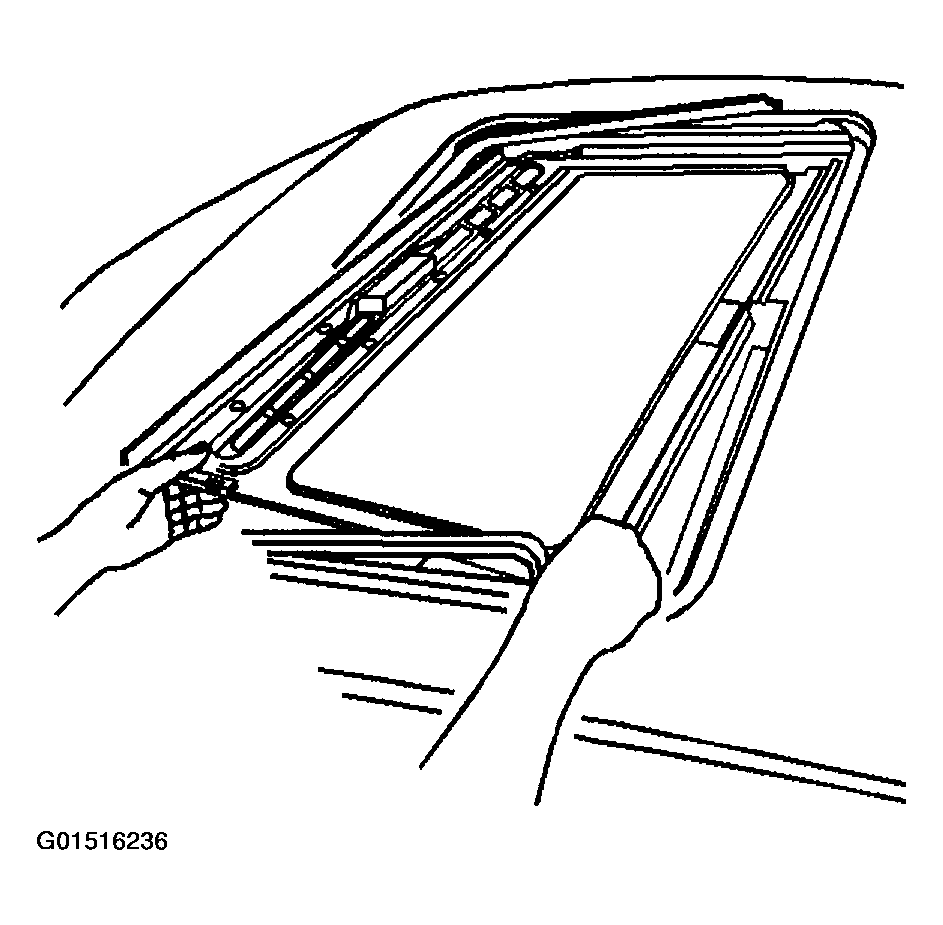

    Fig 2: Removing Sunroof Sunshade Panel (2 Of 2)
    G01516236Courtesy of GENERAL MOTORS CORP.
