Removal Procedure

Important:  This sunroof system is timed from the factory in order to allow the actuator to shut off automatically when the sunroof window reaches a certain position. Use extreme care when removing the sunroof actuator from the sunroof module. Improper removal may cause the timing to be thrown off.

Anytime the sunroof actuator requires removal from the sunroof module, ensure that the sunroof window is in the fully closed position and the sunroof timing pins are installed.

1. Position the sunroof window panel to the fully closed position.
2. Remove the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .
3. Remove the right and left front screw from the sunroof window panel. Refer to SUNROOF WINDOW REPLACEMENT  .

   Important:  Before removing the sunroof actuator, ensure that J 41718  are tight and holding the cable.

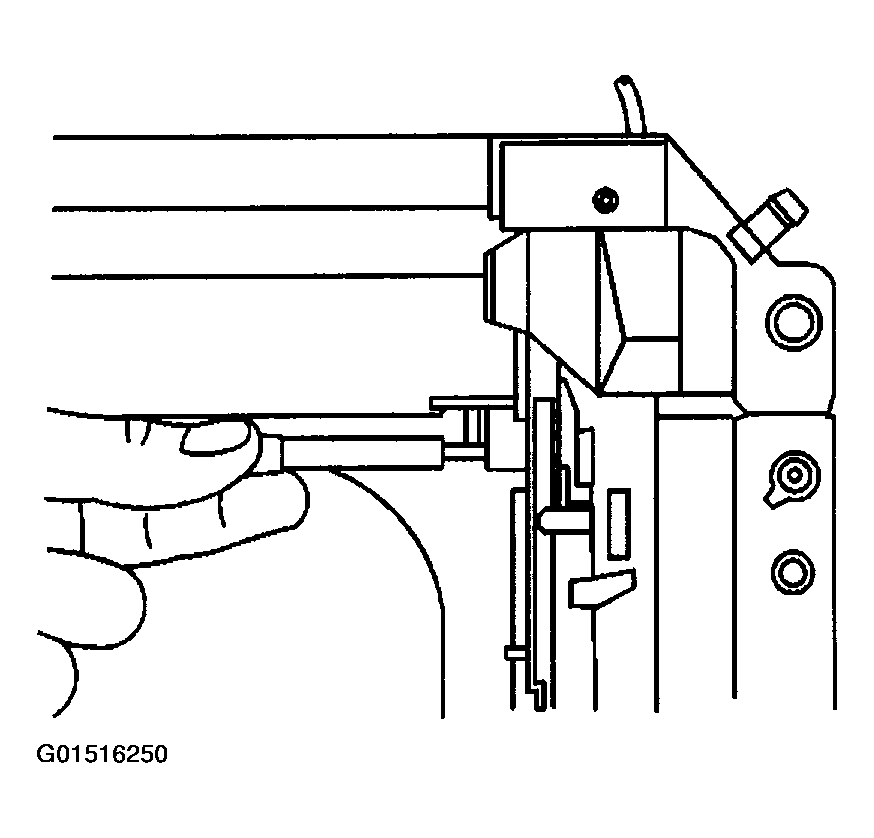

4. Install J 41718  into the front sunroof window panel screw hole in order to retain the cable adjustment.
   Fig 1: Installing Sunroof Timing Pins Into Sunroof Window Panel Screw Hole

   Courtesy of GENERAL MOTORS CORP.

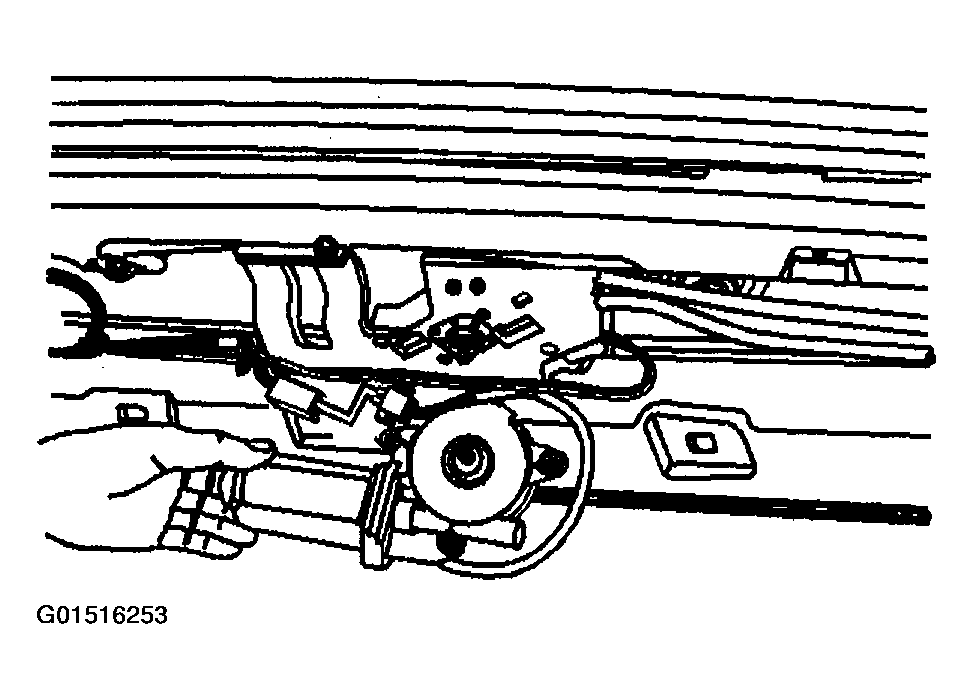

5. Disconnect the electrical connector from the sunroof module actuator.
   Fig 2: Disconnecting Electrical Connector From Sunroof Module Actuator

   Courtesy of GENERAL MOTORS CORP.

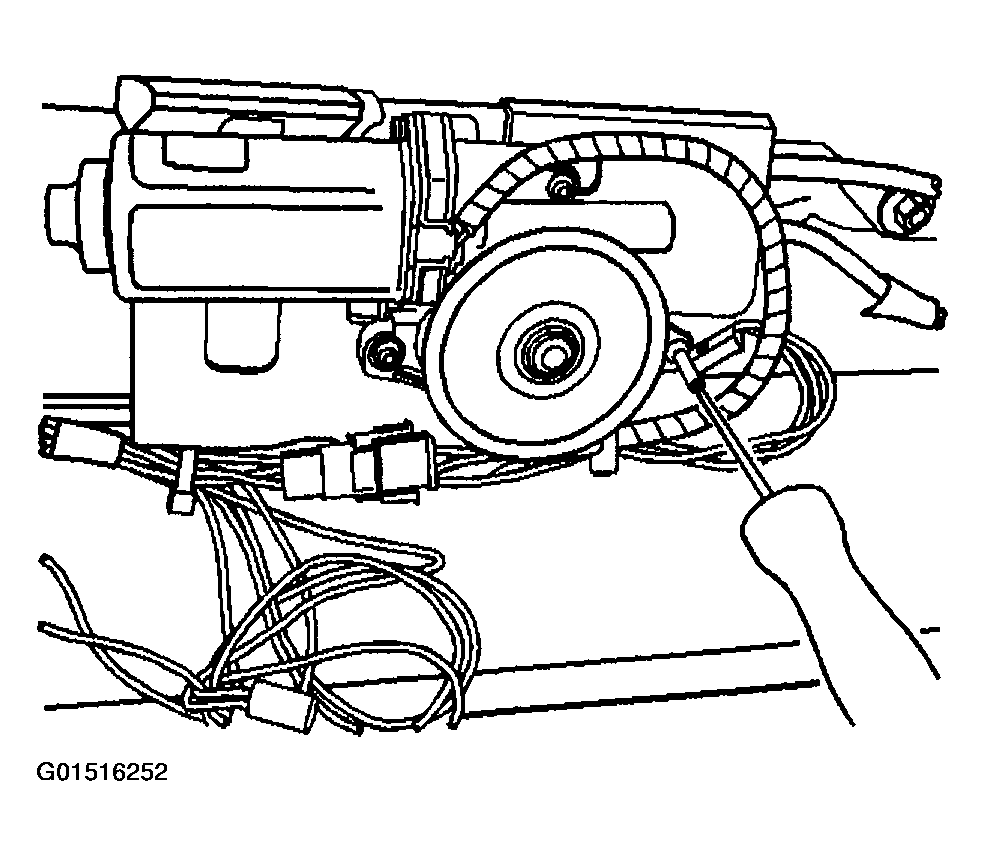

6. Remove the bolts from the sunroof actuator.
   Fig 3: Removing Sunroof Actuator Bolts

   Courtesy of GENERAL MOTORS CORP.

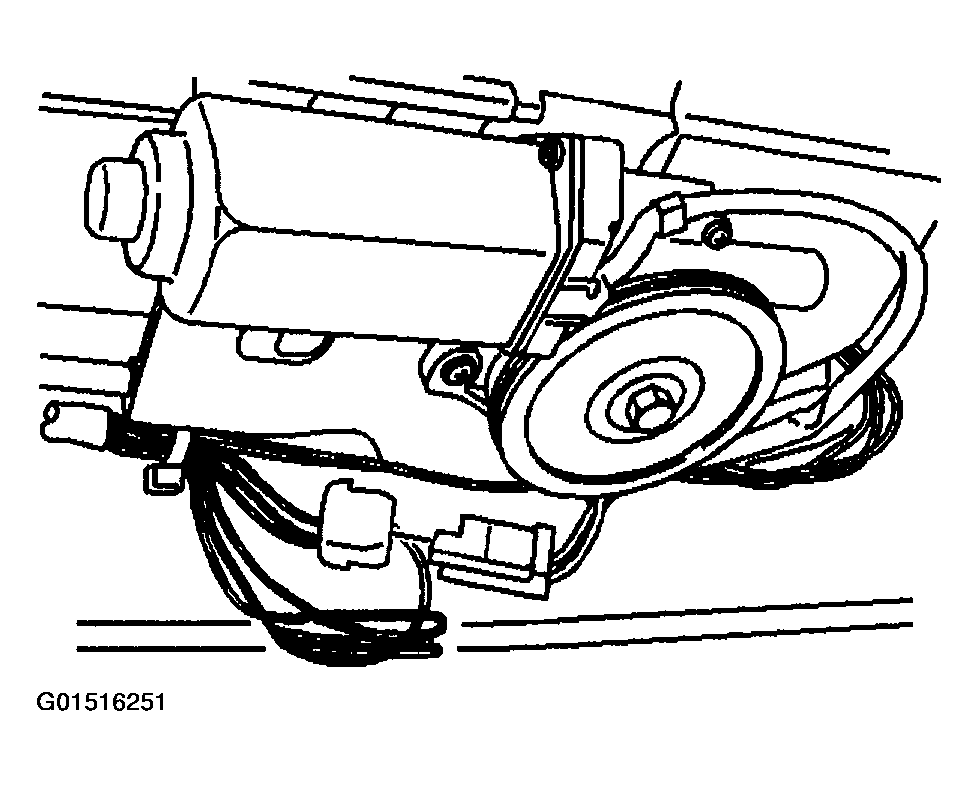

7. Remove the sunroof actuator from the sunroof module.
   Fig 4: Removing Sunroof Actuator From Sunroof Module

   Courtesy of GENERAL MOTORS CORP.
