Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunroof actuator to the sunroof module.
  2. Install the sunroof actuator bolts.

    Tighten

    Tighten the sunroof actuator bolts to 4 N.m (35 lb in).

  3. Connect the electrical connector to the sunroof actuator.

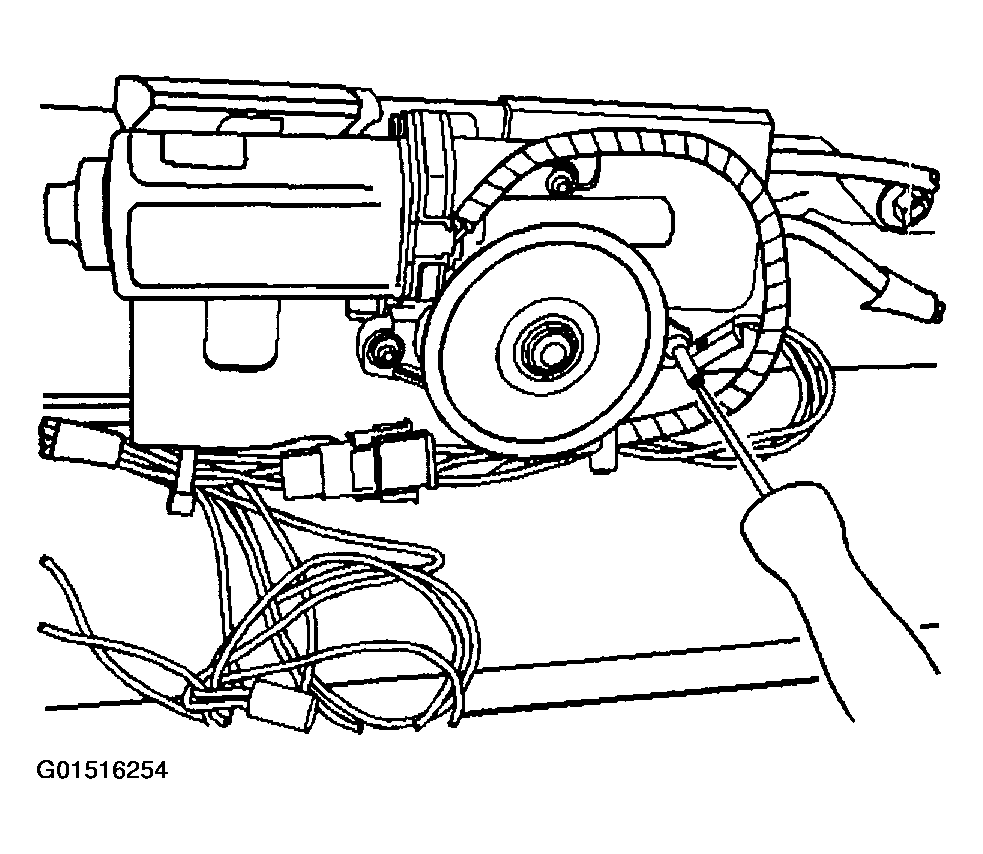

    Fig 1: Installing Sunroof Actuator Bolts
    G01516254Courtesy of GENERAL MOTORS CORP.
  4. Remove the sunroof timing pins.
  5. Install the front screws to the sunroof window panel. Refer to SUNROOF WINDOW REPLACEMENT  .
  6. Check the sunroof for proper operation.
  7. Install the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .

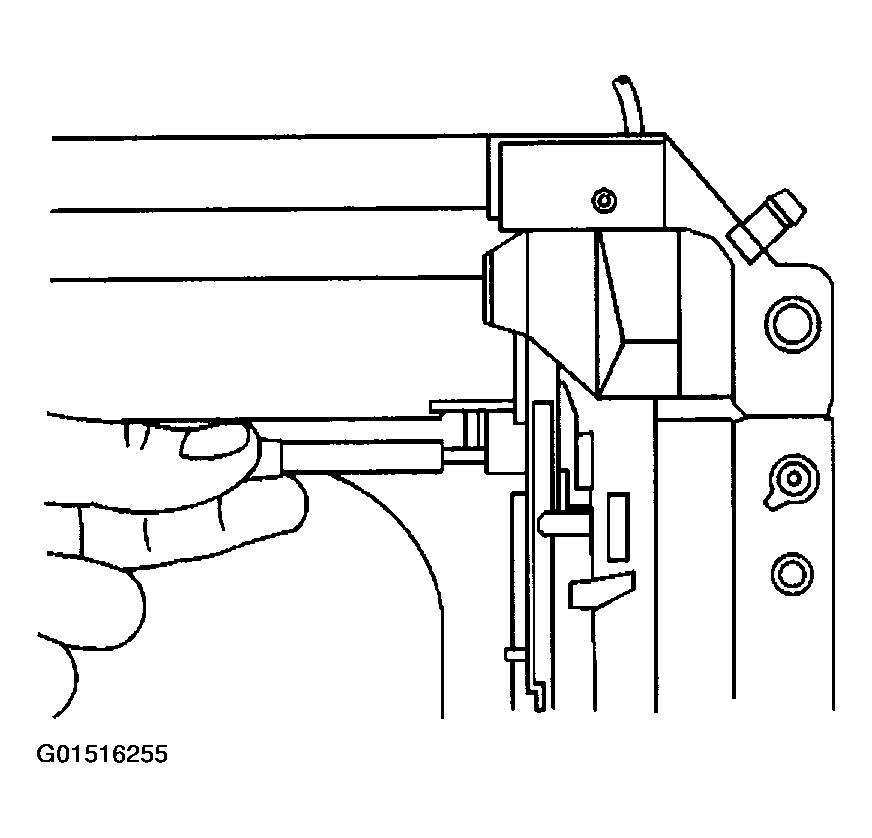

    Fig 2: Removing Sunroof Timing Pins
    G01516255Courtesy of GENERAL MOTORS CORP.
