Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .
  2. Disconnect the rear sunroof drain hose from the sunroof module rear spigot.
  3. Remove the rear sunroof drain hose grommet from the hole in the front door lock pillar.
  4. Remove the rear sunroof drain hose from the front door lock pillar. Pull the hose from the access hole in the lock pillar.

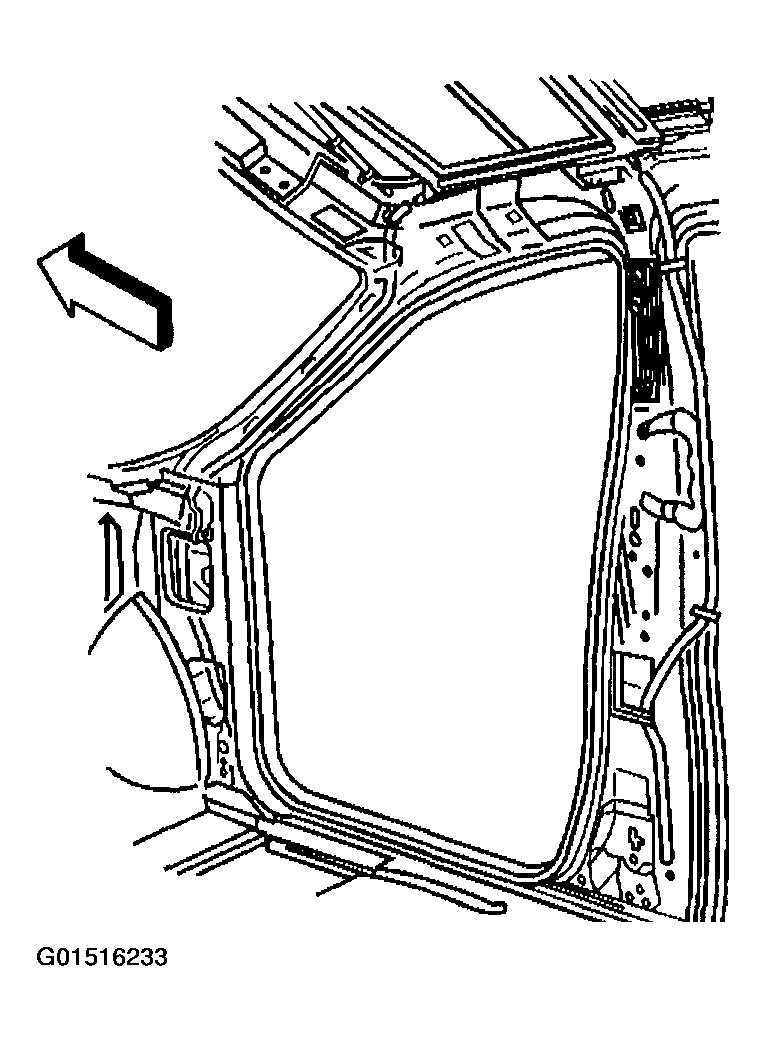

    Fig 1: Removing Rear Sunroof Drain Hose
    G01516233Courtesy of GENERAL MOTORS CORP.
