Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear sunroof drain hose to the front door lock pillar.
  2. Install the end of the rear sunroof drain hose to the grommet in the front door lock pillar.
  3. Connect the rear sunroof drain hose to the sunroof module rear spigot.
  4. Inspect the rear sunroof drain hose for proper routing.
  5. Install the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .

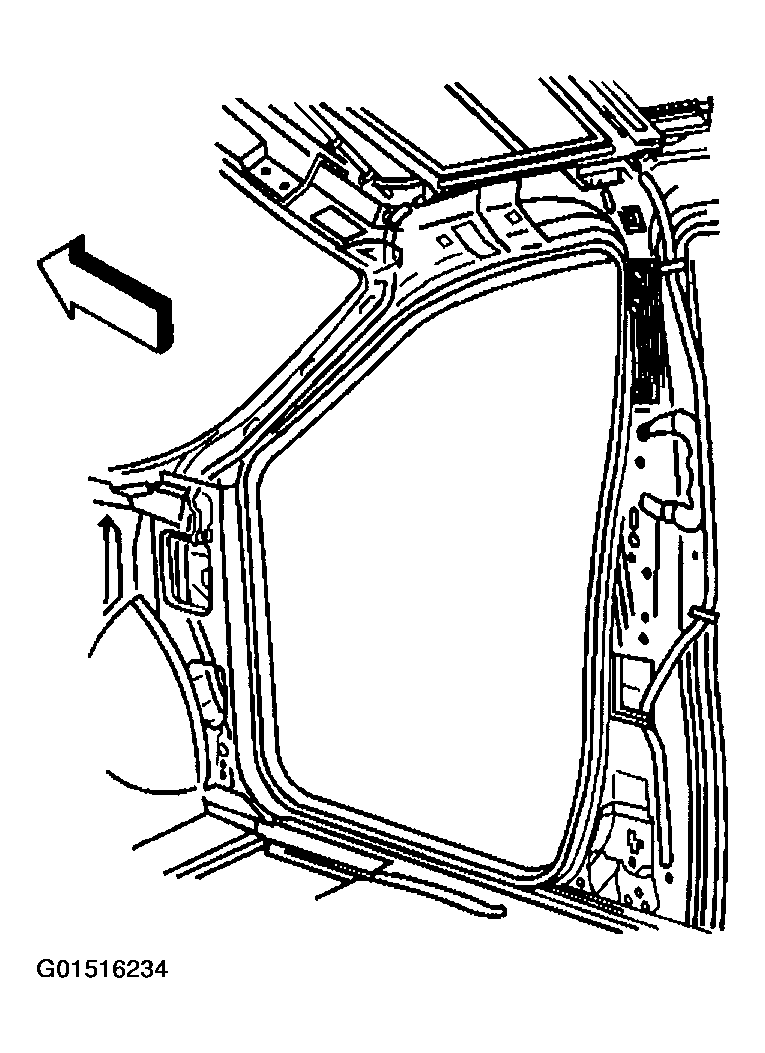

    Fig 1: Installing Rear Sunroof Drain Hose
    G01516234Courtesy of GENERAL MOTORS CORP.
