Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the luggage carrier side rails to the roof.
  2. Install the luggage carrier side rail screws to the luggage carrier.

    Tighten

    Tighten the luggage carrier side rail screws to 6 N.m (53 lb in).

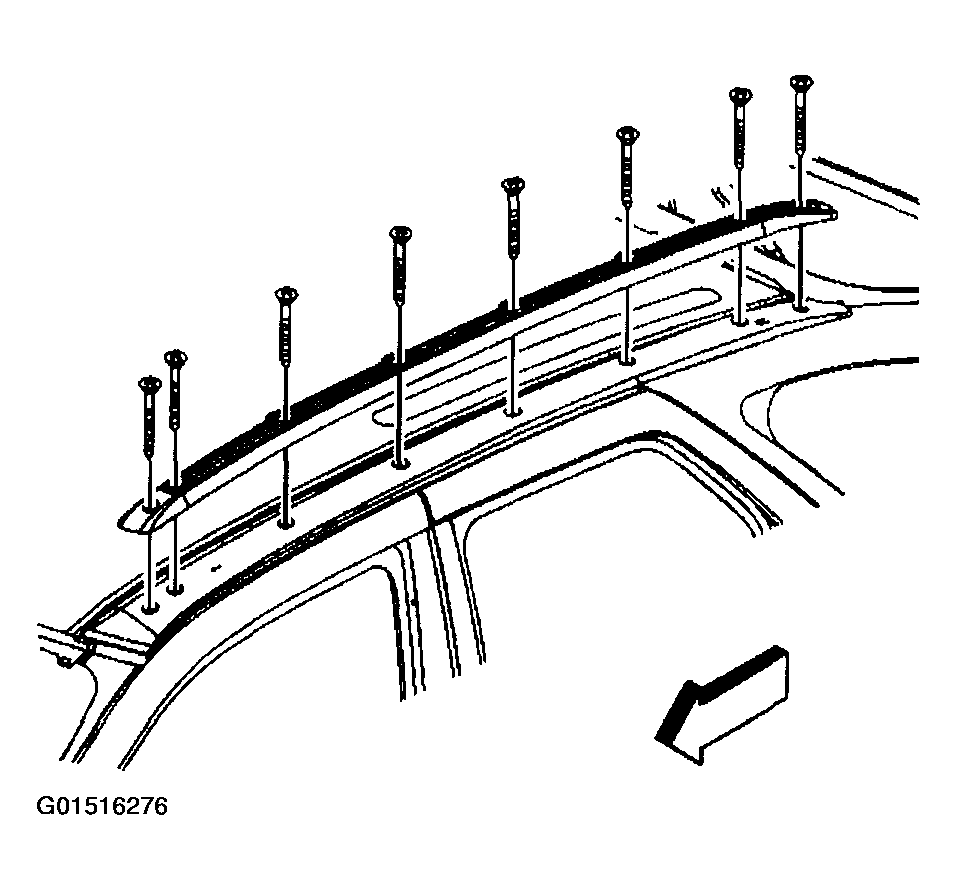

    Fig 1: Installing Luggage Carrier Side Rail Screws To Luggage Carrier
    G01516276Courtesy of GENERAL MOTORS CORP.
  3. Lift up on the luggage carrier cross rail levers in order to engage the cross rails into the side rails.
  4. Slide the luggage carrier cross rails to the desired position.
  5. Release the levers on the luggage carrier cross rails to lock them into position.

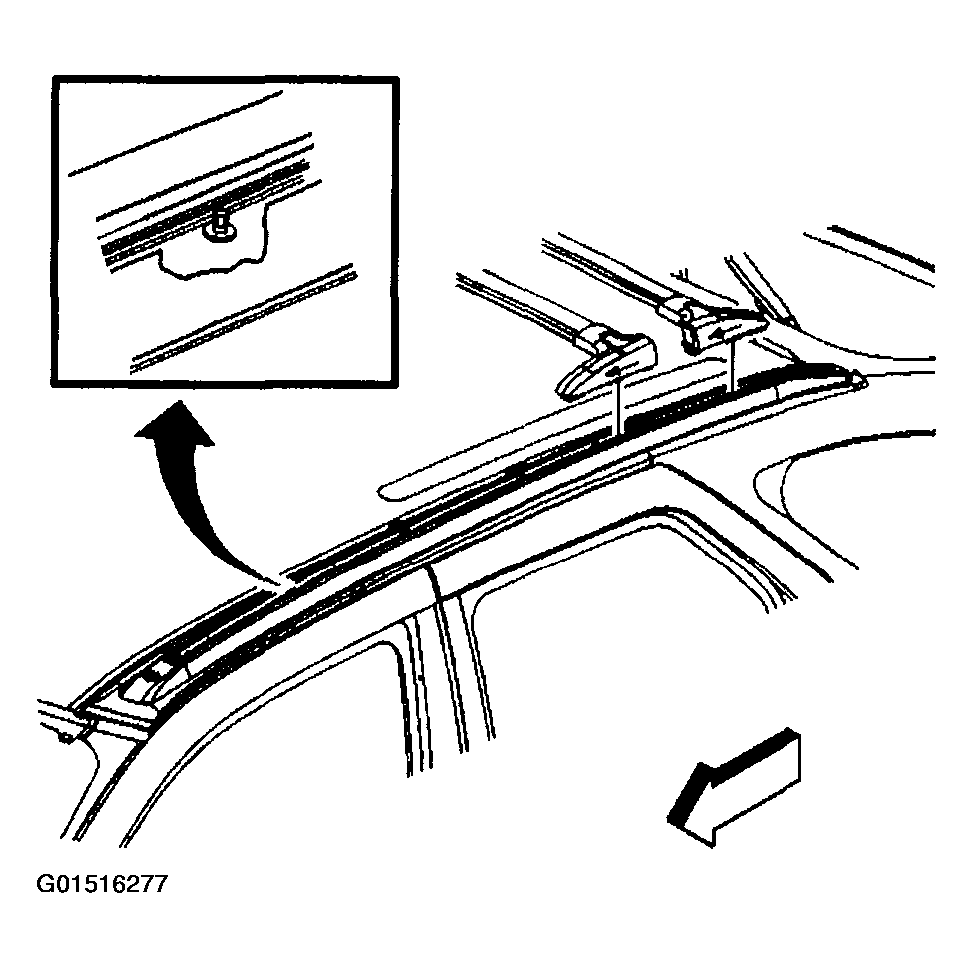

    Fig 2: Engaging Luggage Carrier Cross Rails Into Side Rails
    G01516277Courtesy of GENERAL MOTORS CORP.
  6. Install the luggage carrier side rail trim covers to the slots in the rails, pressing into place until fully seated.
    Fig 3: Installing Luggage Carrier Side Rail Trim Covers To Slots In Rails
    G01516278Courtesy of GENERAL MOTORS CORP.
