Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the luggage carrier side rail trim covers from the rear of the rails using a small flat bladed tool.
  2. Lift up the levers on the luggage carrier cross rails to unlock them from the side rails.
  3. Remove the luggage carrier cross rails from the side rails by sliding them rearward.

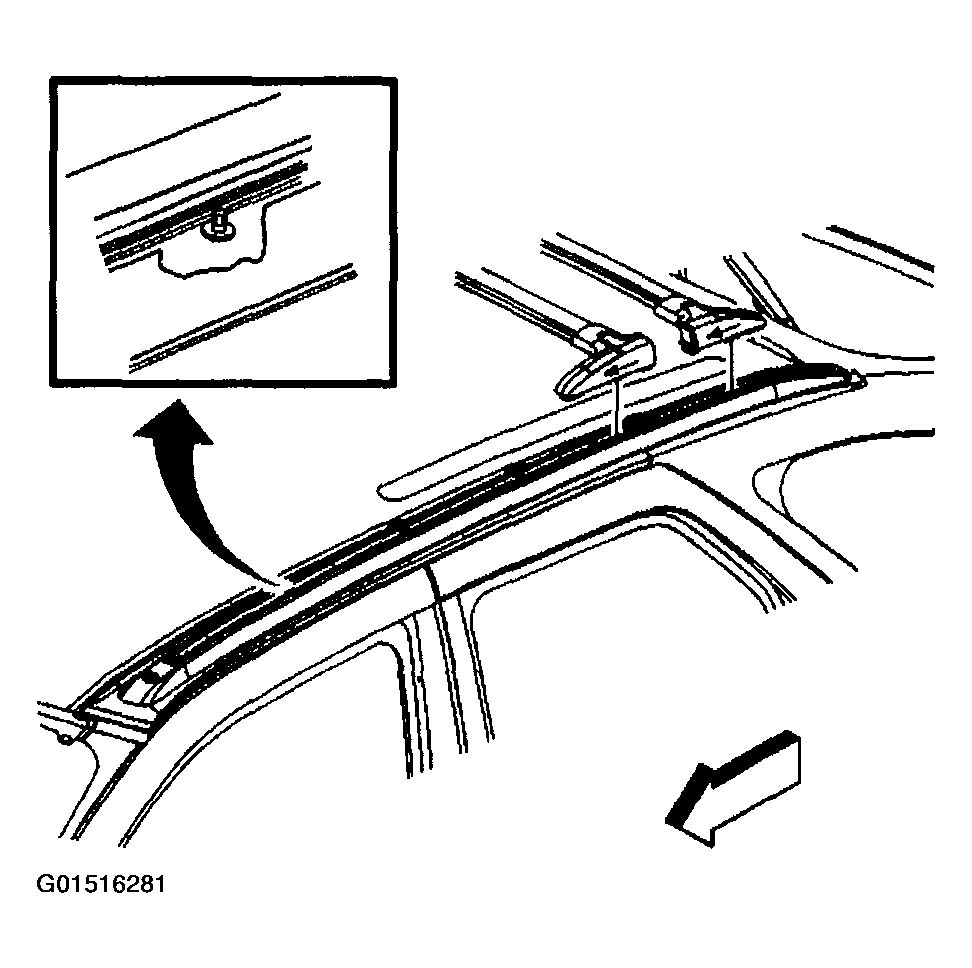

    Fig 1: Removing Luggage Carrier Cross Rails From Side Rails
    G01516281Courtesy of GENERAL MOTORS CORP.
