Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up on the luggage carrier cross rail levers in order to engage the cross rails into the side rails.
  2. Slide the luggage carrier cross rails to the desired position.
  3. Release the levers on the luggage carrier cross rails to lock them into position.
  4. Install the luggage carrier side rail trim covers to the slots in the side rails, pressing until fully seated.

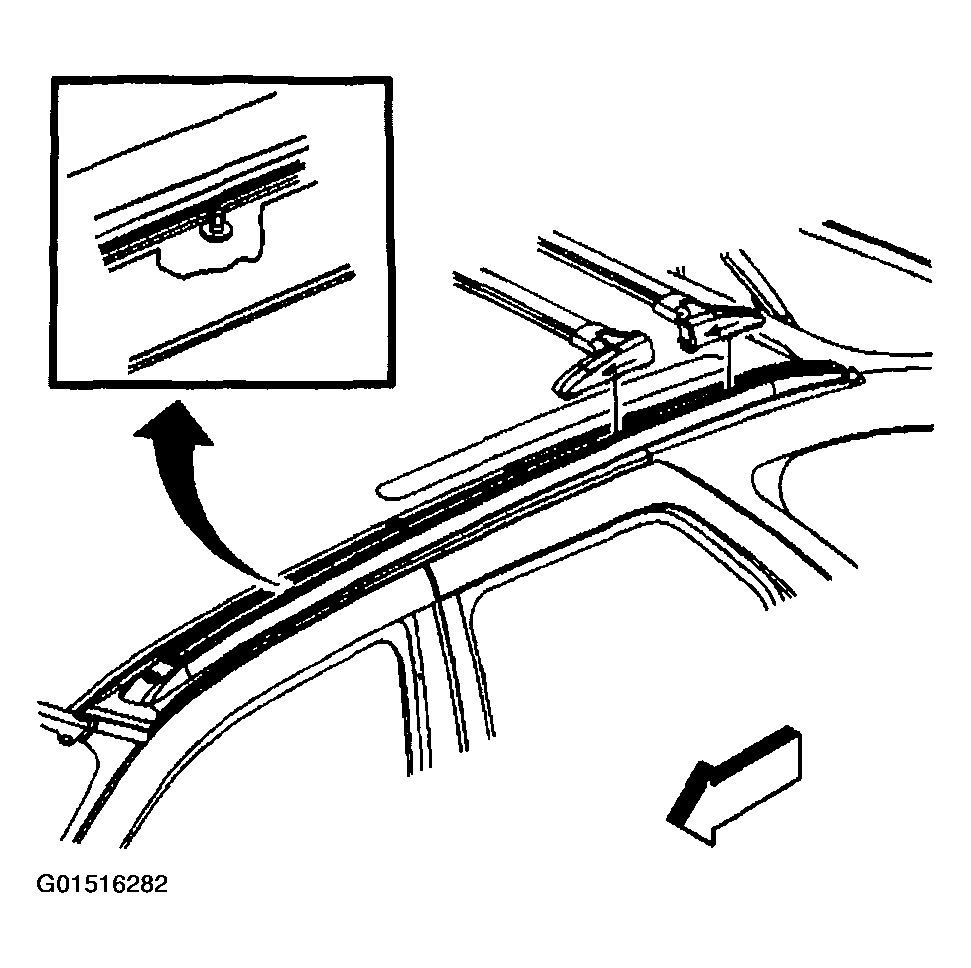

    Fig 1: Engaging Luggage Carrier Cross Rails Into Side Rails
    G01516282Courtesy of GENERAL MOTORS CORP.
