Shift Cable Bracket: Installation
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, and 2002 GMC C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

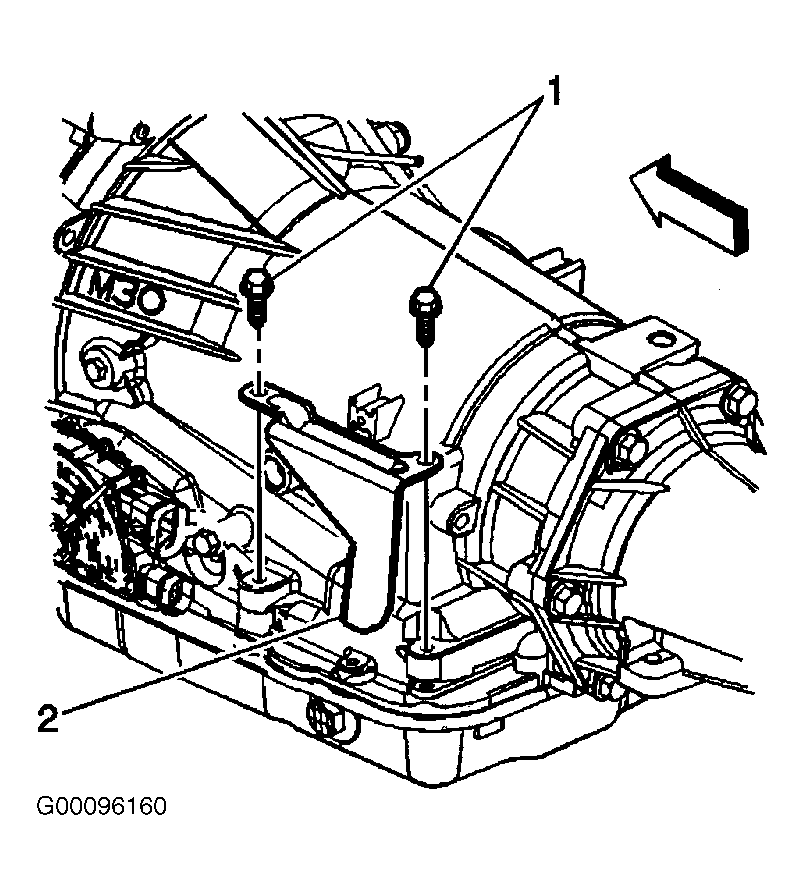

Install the shift cable bracket to the vehicle. Install the shift cable bracket bolts (1). See Fig 1. Tighten the bolts to specification. See TORQUE SPECIFICATIONS . Install the shift cable to the bracket (2) and the lever. Lower the vehicle. Check the vehicle for proper operation. If adjustment of the cable is necessary, see SHIFT CABLE BRACKET under ADJUSTMENTS.
