Filler Tube (4L80-E): Installation

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, and 2002 GMC C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new transmission fluid level indicator tube seal into the transmission case. See Fig 2. Install the transmission fluid level indicator tube into the seal. See Fig 1.
  2. If equipped with gasoline engine, install the stud securing the transmission fluid level indicator tube bracket to the transmission and tighten to specification. See TORQUE SPECIFICATIONS .
  3. If equipped with diesel engine, install the bolt and nut that secures the transmission fluid level indicator tube bracket and ground wire to the transmission. Tighten the bolt and the nut to specification. See TORQUE SPECIFICATIONS .
  4. On all models, lower the vehicle. Install the transmission fluid level indicator. Fill transmission with appropriate fluid to proper level. See LUBRICATION .

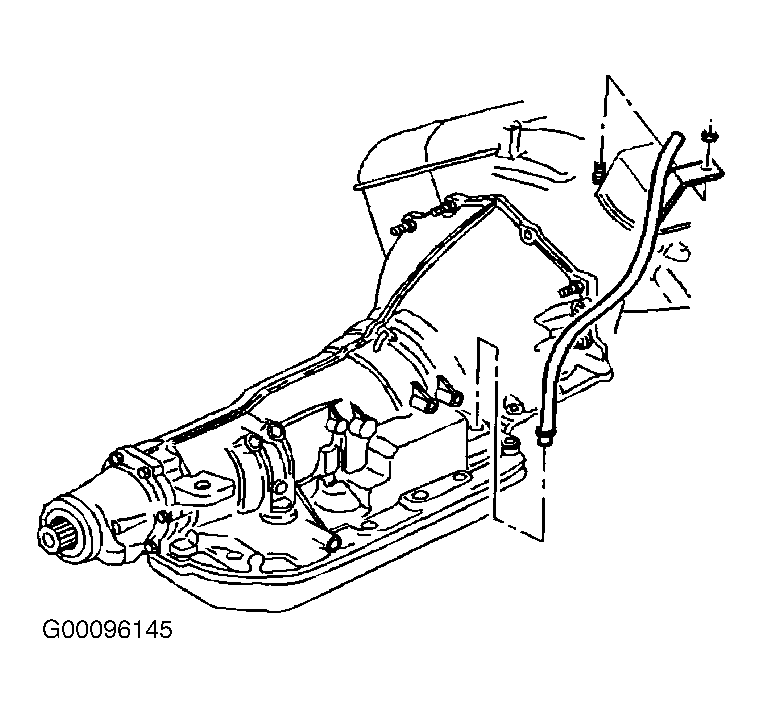

Fig 1: Removing & Installing Filler Tube
G00096145Courtesy of GENERAL MOTORS CORP.

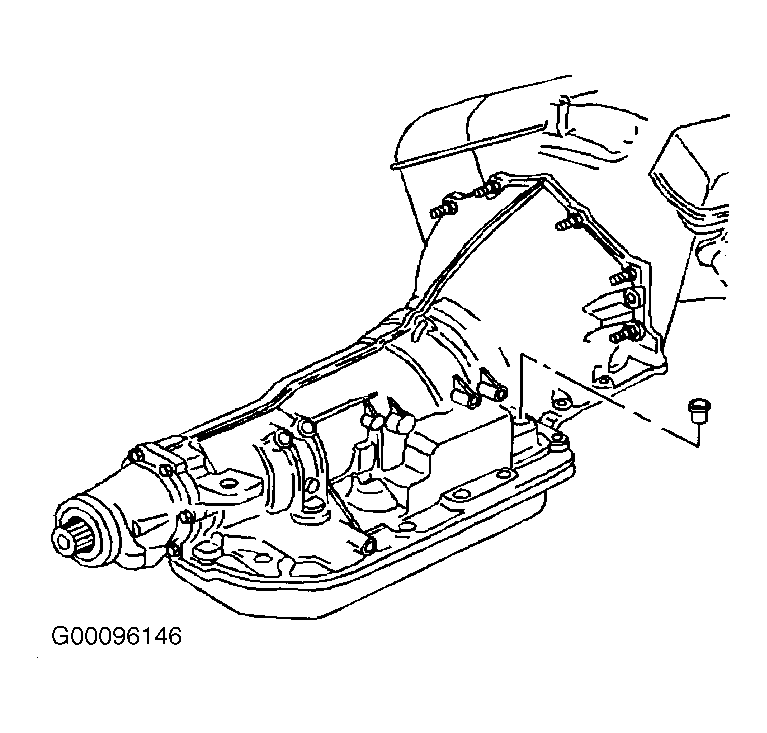

Fig 2: Removing & Installing Filler Tube Seal
G00096146Courtesy of GENERAL MOTORS CORP.
