Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT -- UPPER CENTER PILLAR .
  2. Remove the bolts from the shoulder belt guide adjuster bracket.
  3. Remove the shoulder belt guide belt adjuster bracket from the center pillar.

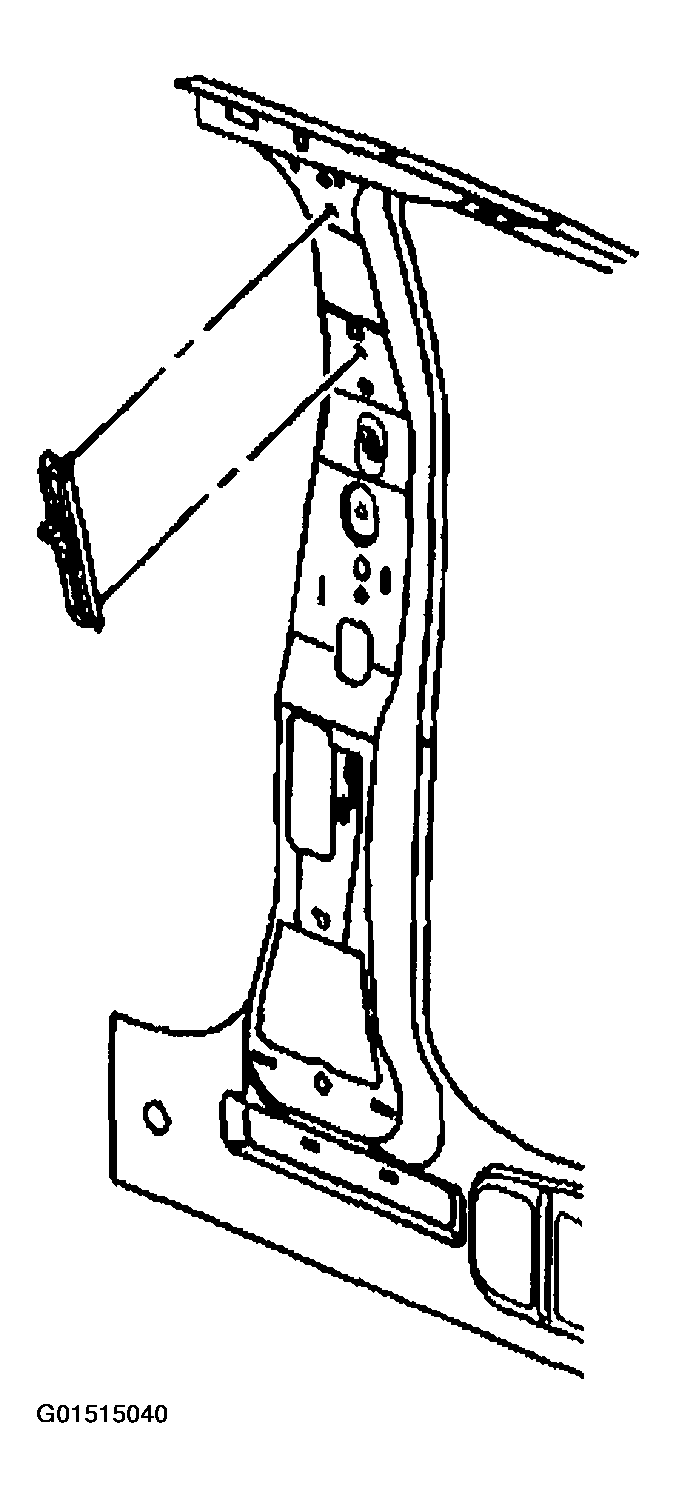

    Fig 1: Removing Procedure Of Shoulder Belt Guide Adjuster - Front
    G01515040Courtesy of GENERAL MOTORS CORP.
