Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the seat belt guide loop cover.
  2. Remove the nut from guide loop.
  3. Remove the seat belt guide loop from the guide adjuster bracket.
  4. Remove the center pillar lower trim. Refer to TRIM PANEL REPLACEMENT -- LOWER CENTER PILLAR .
  5. Remove the bolts from the seat belt intermediate guide.
  6. Remove the seat belt intermediate guide from the center pillar.
  7. Remove the seat belt retractor bolt.
  8. Remove the seat belt retractor from the center pillar.

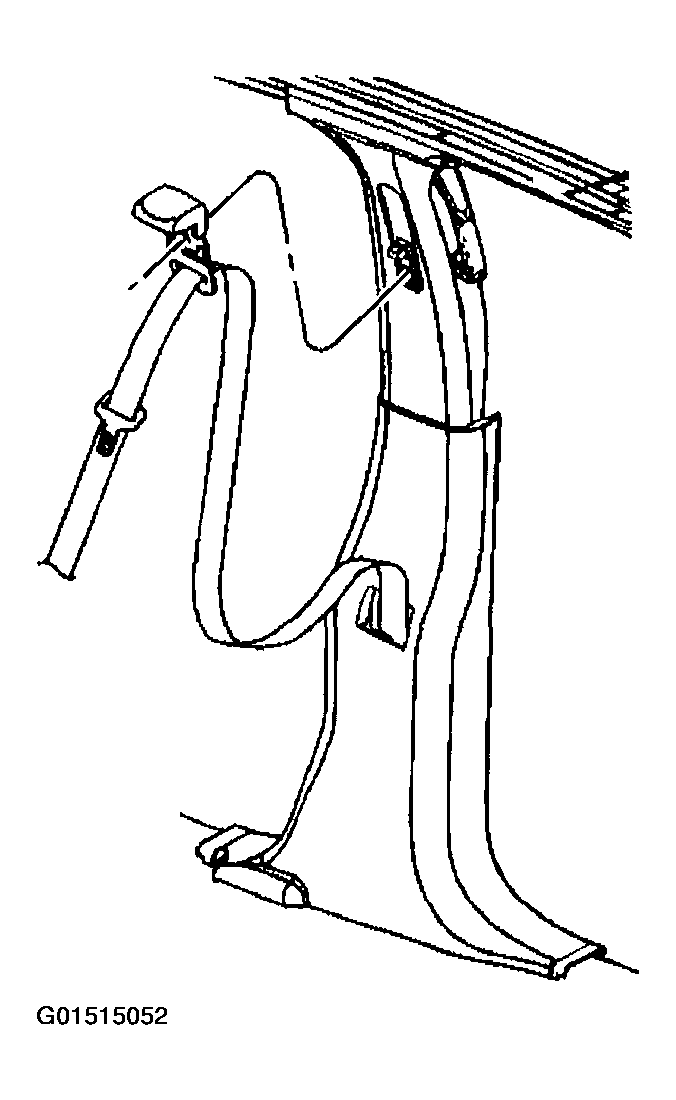

    Fig 1: Removing Procedure of Seat Belt Retractor - Right Front (1 Of 2)
    G01515052Courtesy of GENERAL MOTORS CORP.
  9. Remove the anchor plate nut from the front seat stud.
  10. Remove the anchor plate nut from the front seat stud.

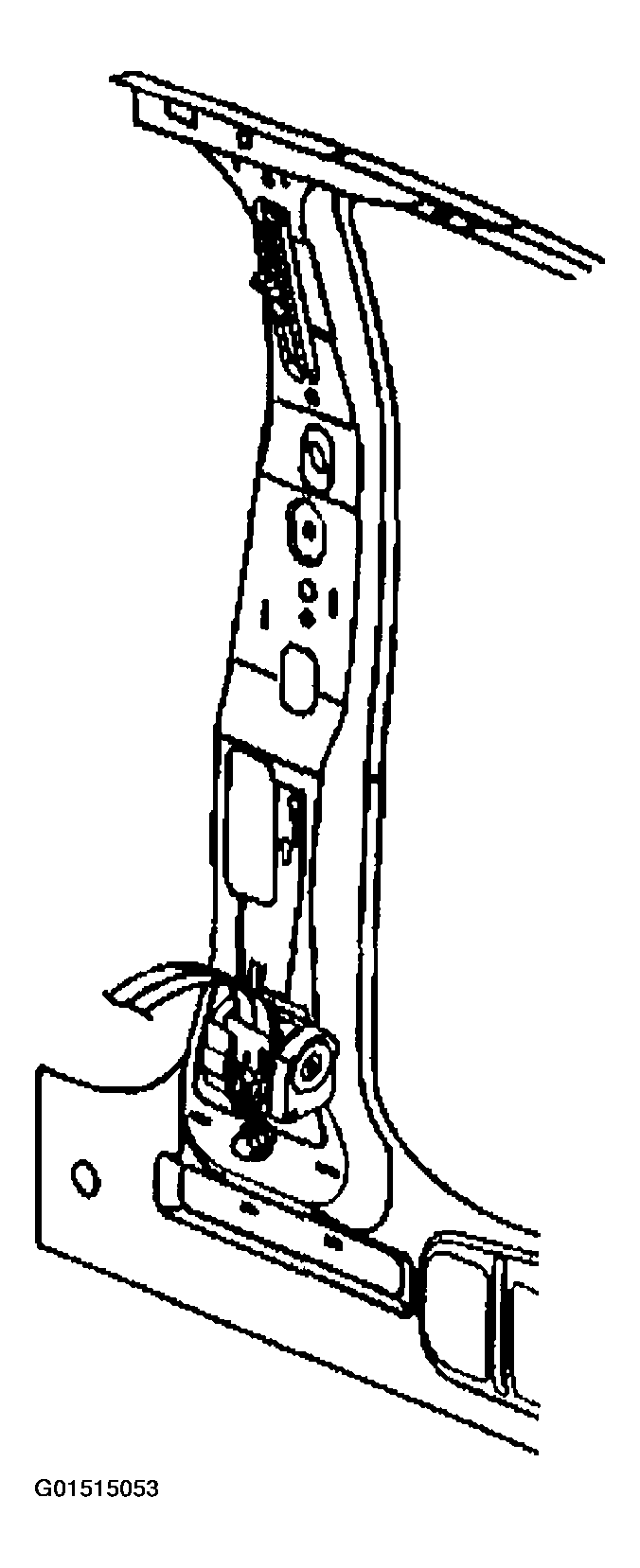

    Fig 2: Removing Procedure of Seat Belt Retractor - Right Front (2 Of 2)
    G01515053Courtesy of GENERAL MOTORS CORP.
