Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the seat belt retractor into the T-slot in the center pillar.
Install the seat belt retractor bolt.
Tighten

Tighten the seat belt retractor bolt to 42 N.m (31 lb ft).
Install the seat belt intermediate guide to the center pillar.
Install the seat belt intermediate guide bolts.
Tighten

Tighten the seat belt intermediate guide bolts to 10 N.m (89 lb in).

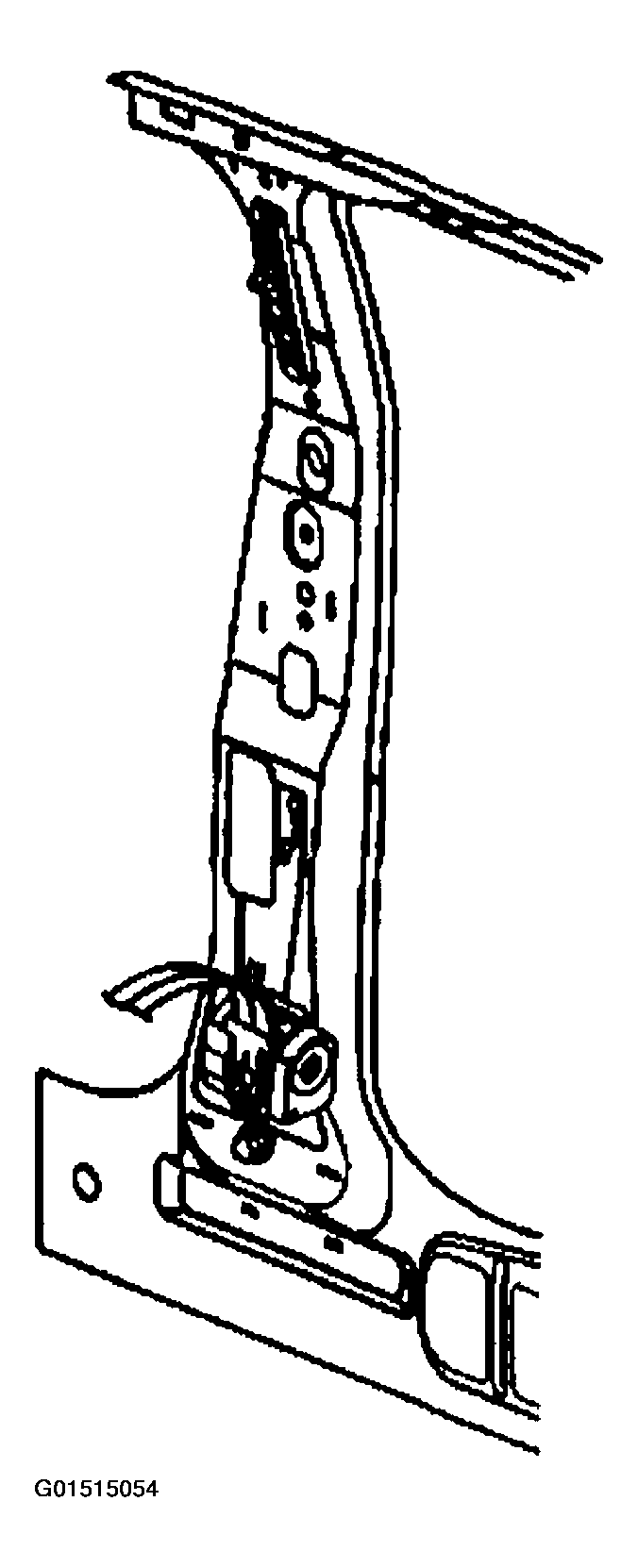

Fig 1: Installing Procedure Of Seat Belt Retractor - Right Front (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Place the anchor plate to the seat stud.
Install the anchor plate nut to the seat stud.
Tighten

Tighten the anchor plate nut to 42 N.m (31 lb ft).
Install the center pillar lower trim. Refer to TRIM PANEL REPLACEMENT -- LOWER CENTER PILLAR .
Place the seat belt guide loop to the guide adjuster bracket.
Install the nut to the seat belt guide loop.
Tighten

Tighten the seat belt guide loop nut to 42 N.m (31 lb ft).
Close the seat belt guide loop cover.

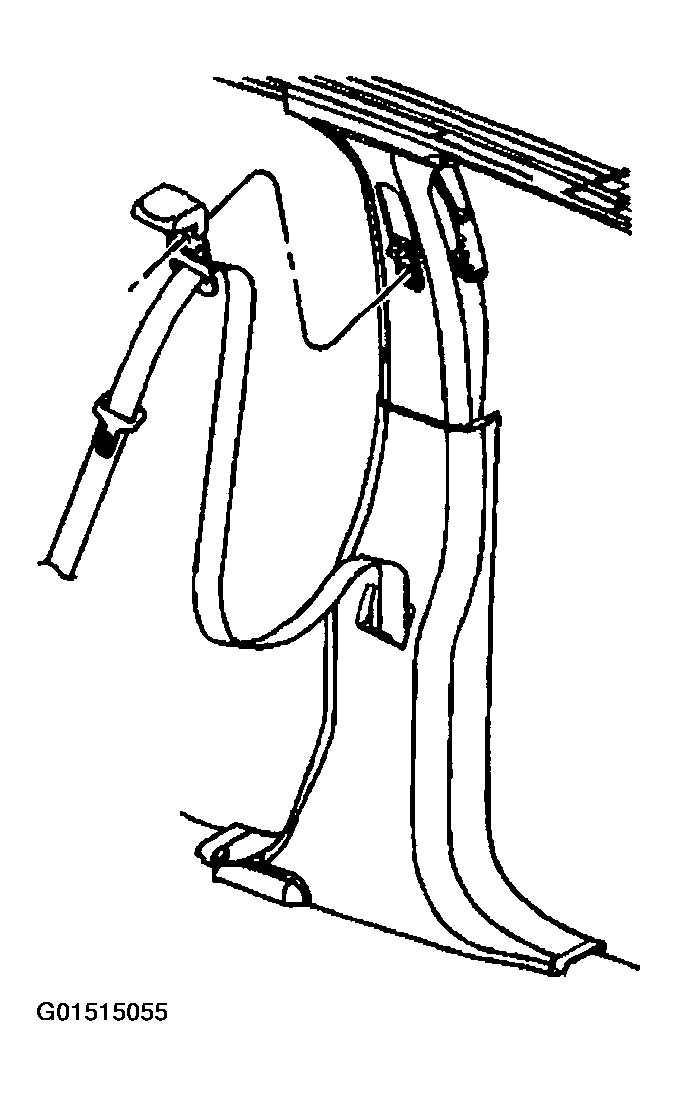

Fig 2: Installing Procedure Of Seat Belt Retractor - Right Front (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
