Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle to the right front seat.

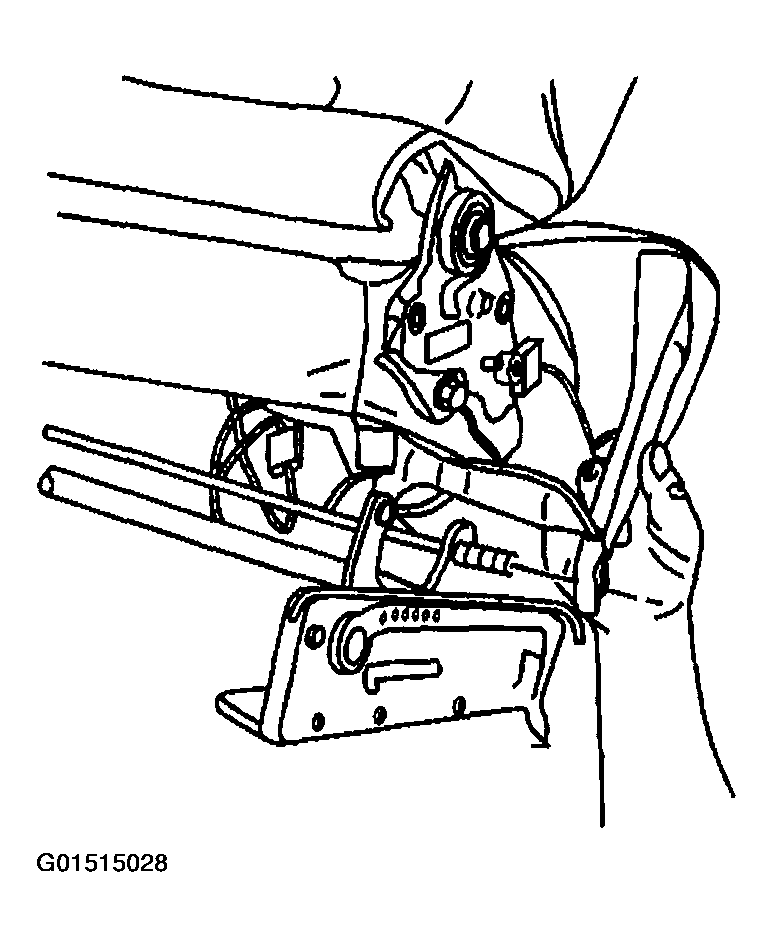

    Fig 1: Installing Procedure Of Seat Belt Buckle - Right Front (1 Of 2)
    G01515028Courtesy of GENERAL MOTORS CORP.
  2. Install the nut to the seat belt anchor stud.

    Tighten

    Tighten the seat belt buckle anchor nut to 42 N.m (31 lb ft).

  3. Install the front seat cushion inner trim panel. Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT -- FRONT .
  4. Install the right front seat. Refer to SEAT REPLACEMENT -- BUCKET .

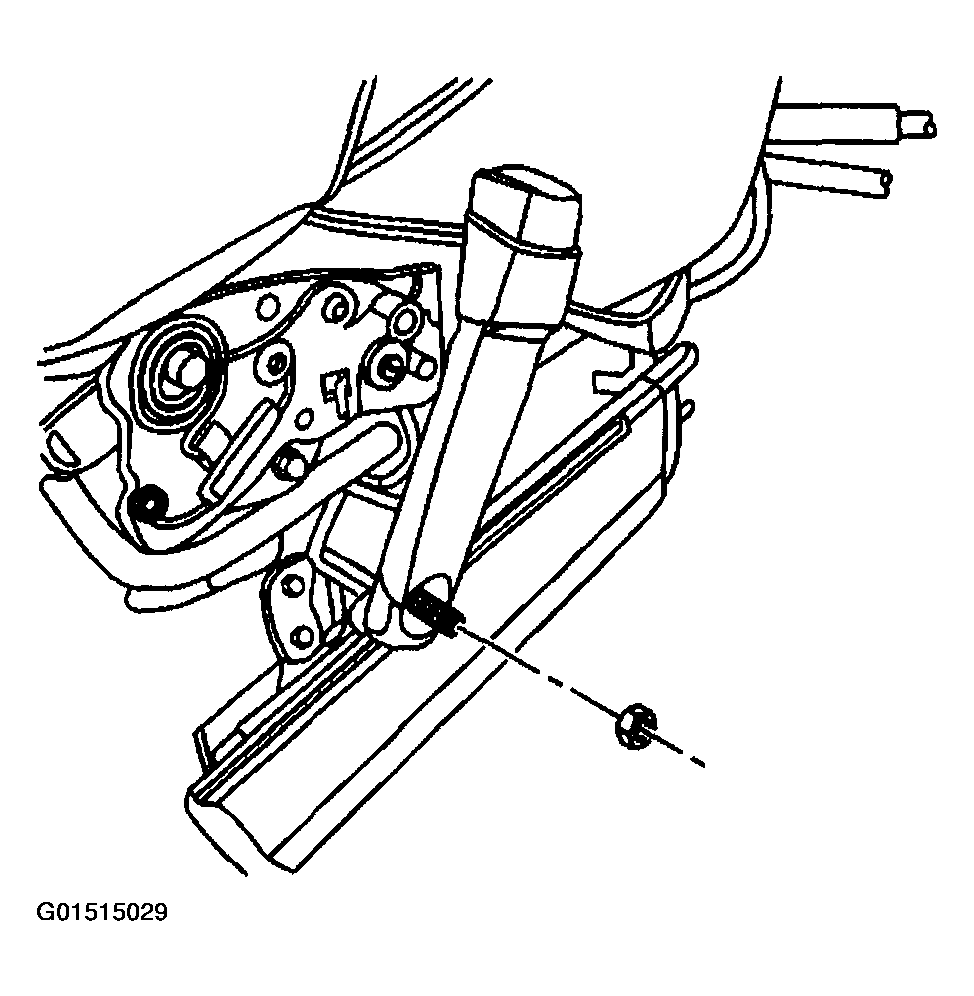

    Fig 2: Installing Procedure Of Seat Belt Buckle - Right Front (2 Of 2)
    G01515029Courtesy of GENERAL MOTORS CORP.
