Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right and/or left rear bucket seat from the vehicle. Refer to SEAT REPLACEMENT -- REAR BUCKET .
  2. Remove the nut cover cup from the right and/or left rear bucket seat belt buckle anchor stud.

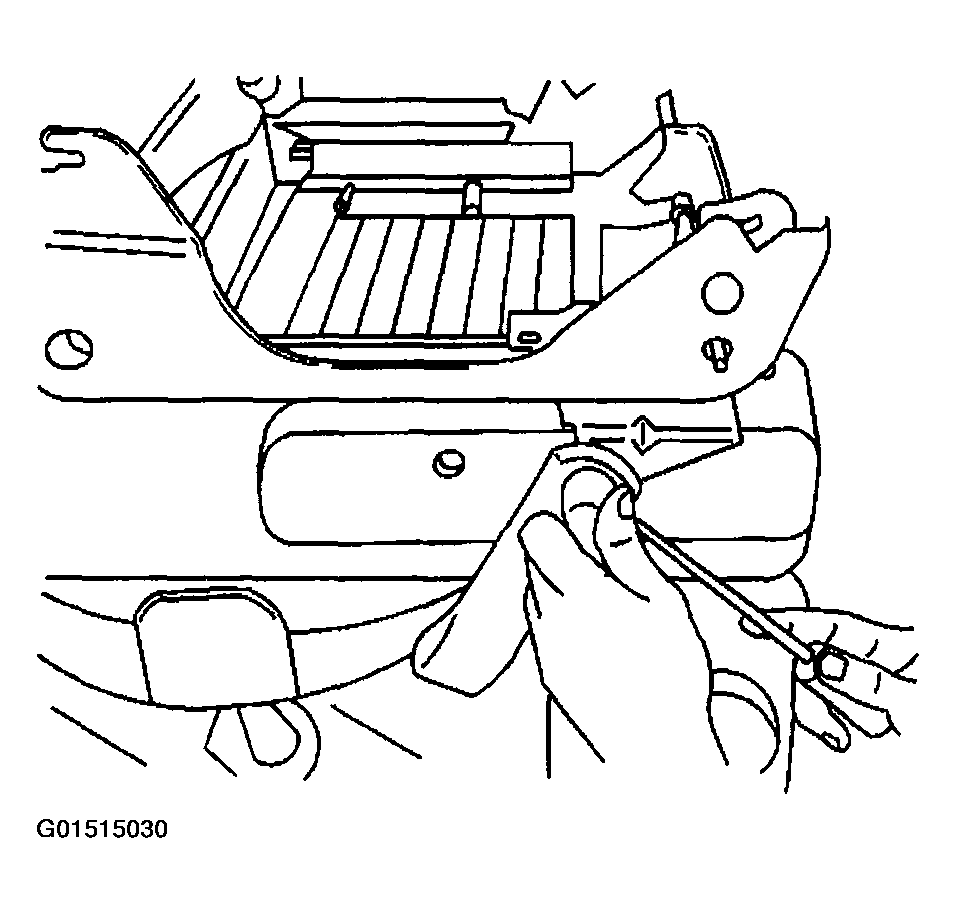

    Fig 1: Removing Procedure Of Seat Belt Buckle - Rear Bucket (1 Of 2)
    G01515030Courtesy of GENERAL MOTORS CORP.
  3. Remove the nut from the right and/or left rear bucket seat belt buckle anchor stud.
  4. Remove the seat belt buckle from the right and/or left rear seat belt anchor stud.

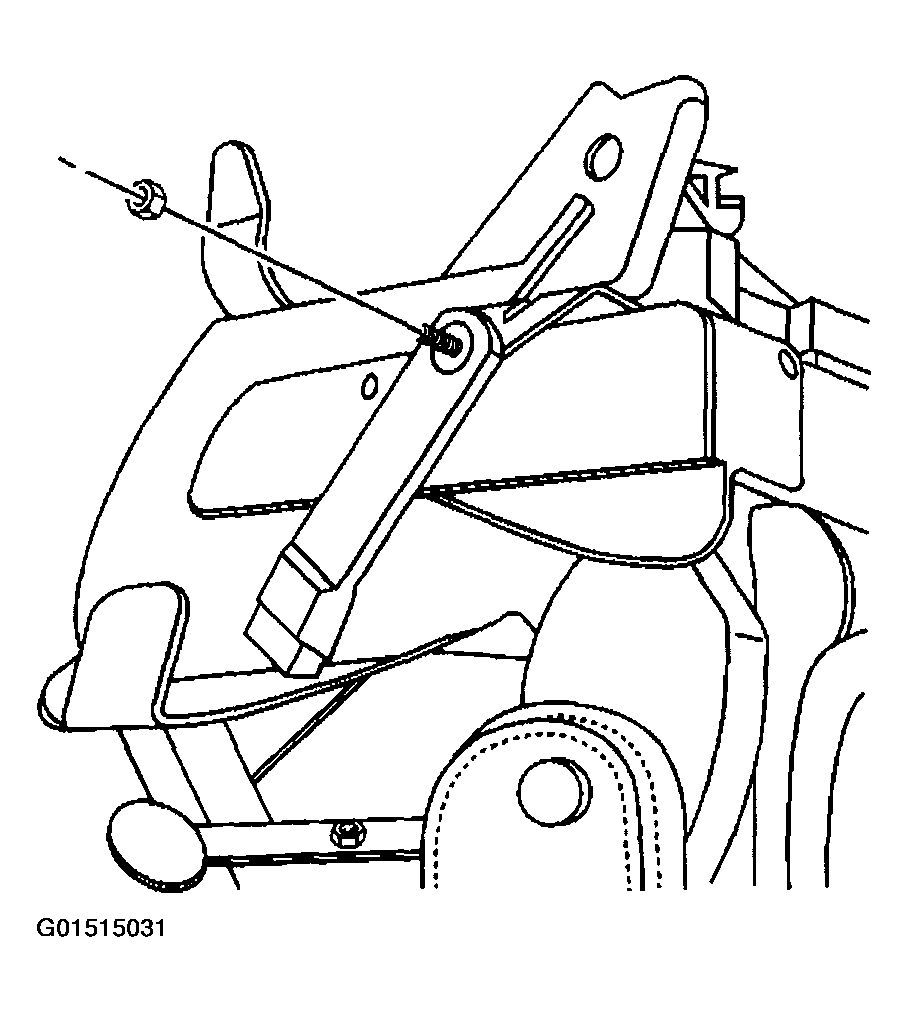

    Fig 2: Removing Procedure Of Seat Belt Buckle - Rear Bucket (2 Of 2)
    G01515031Courtesy of GENERAL MOTORS CORP.
