Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat belt buckle to the right and/or left rear seat belt anchor stud.
  2. Install the nut to the right and/or left rear bucket seat belt buckle anchor stud.

    Tighten

    Tighten the right and/or left rear seat belt buckle anchor nut to 42 N.m (31 lb ft).

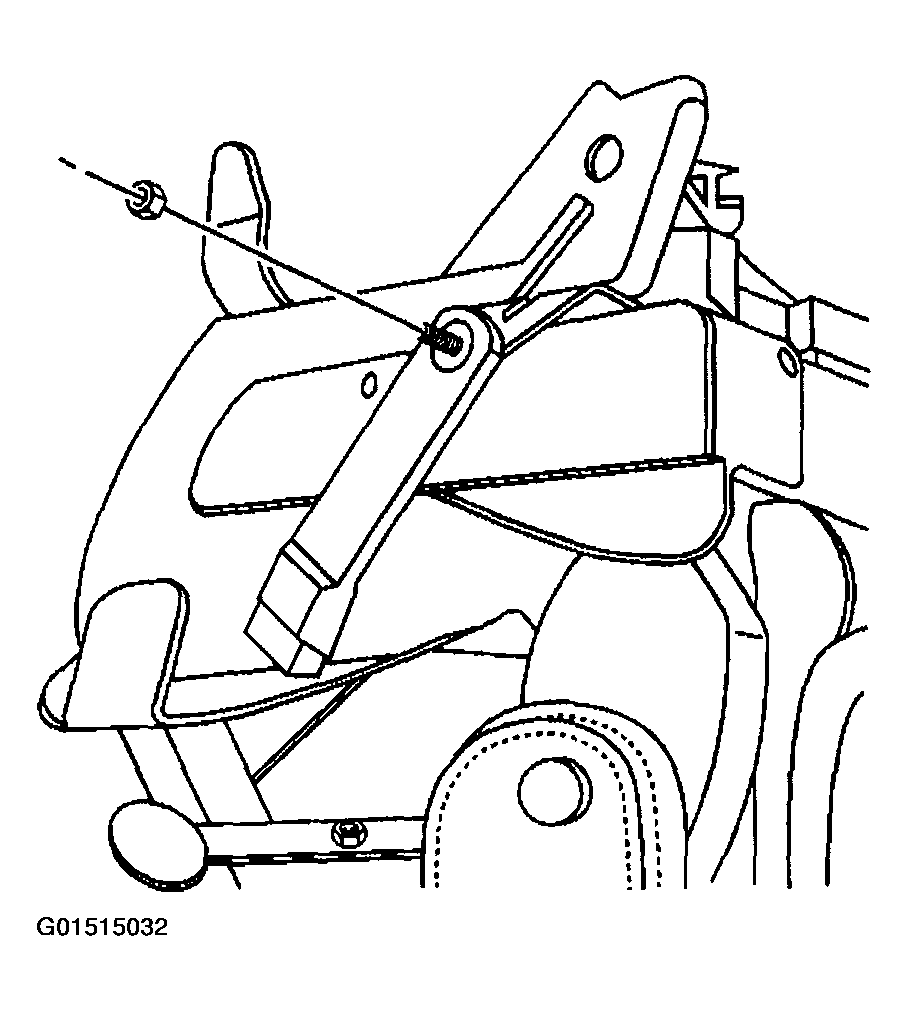

    Fig 1: Installing Procedure Of Seat Belt Buckle - Rear Bucket (1 Of 2)
    G01515032Courtesy of GENERAL MOTORS CORP.
  3. Install the nut cover cup to the right and/or left rear bucket seat belt buckle anchor stud turning clockwise until fully seated.
  4. Install the right and/or left rear bucket seat to the vehicle. Refer to SEAT REPLACEMENT -- REAR BUCKET .

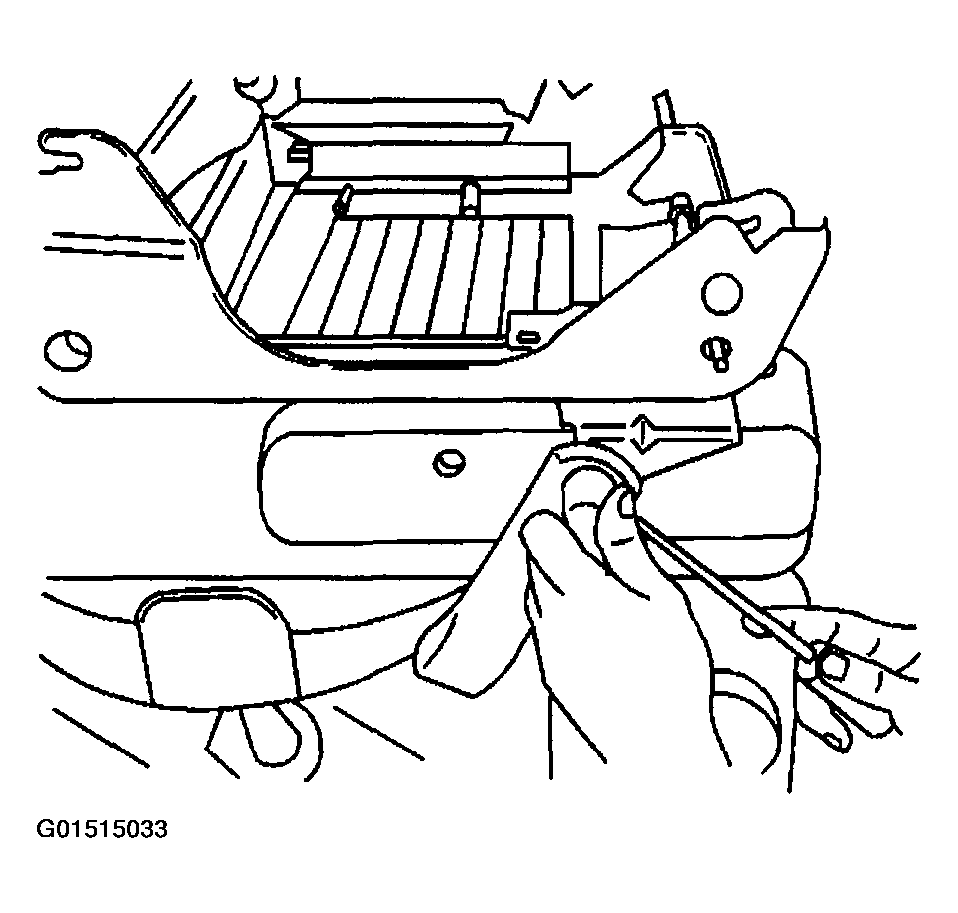

    Fig 2: Installing Procedure Of Seat Belt Buckle - Rear Bucket (2 Of 2)
    G01515033Courtesy of GENERAL MOTORS CORP.
