Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

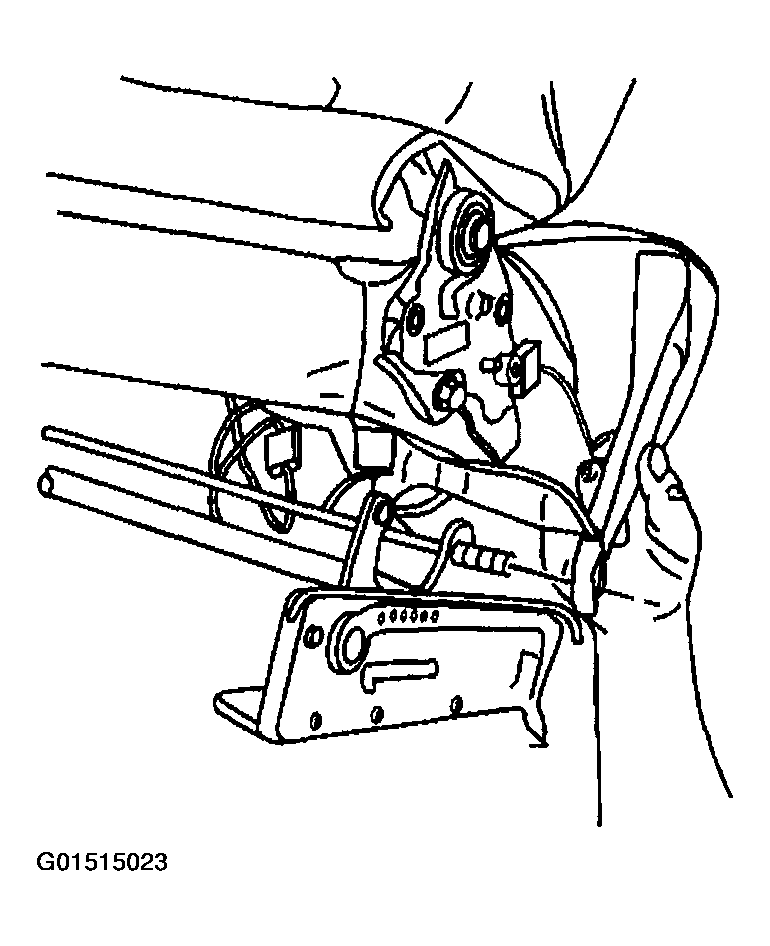

Install the seat belt buckle to the left front seat.

Fig 1: Installing Procedure Of Seat Belt Buckle - Left Front (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

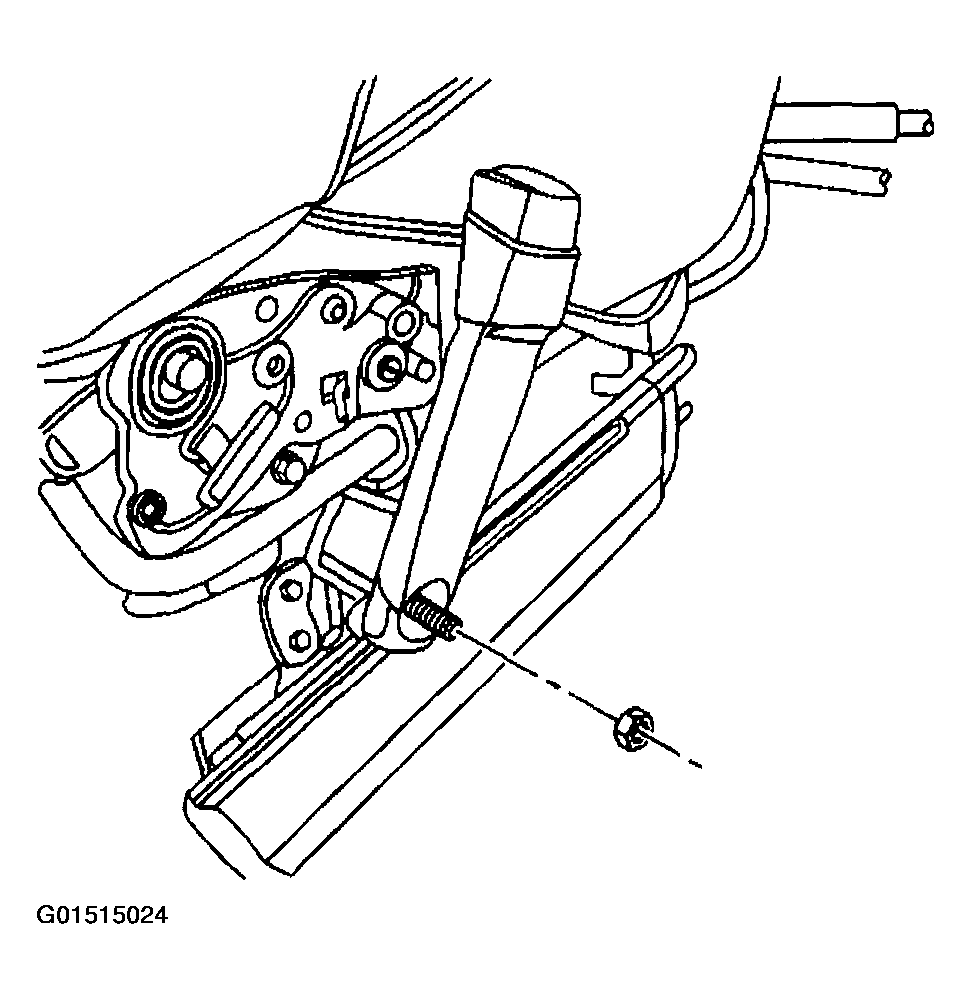

Install the nut to the seat belt anchor stud.
Tighten

Tighten the seat belt buckle anchor nut to 42 N.m (31 lb ft).

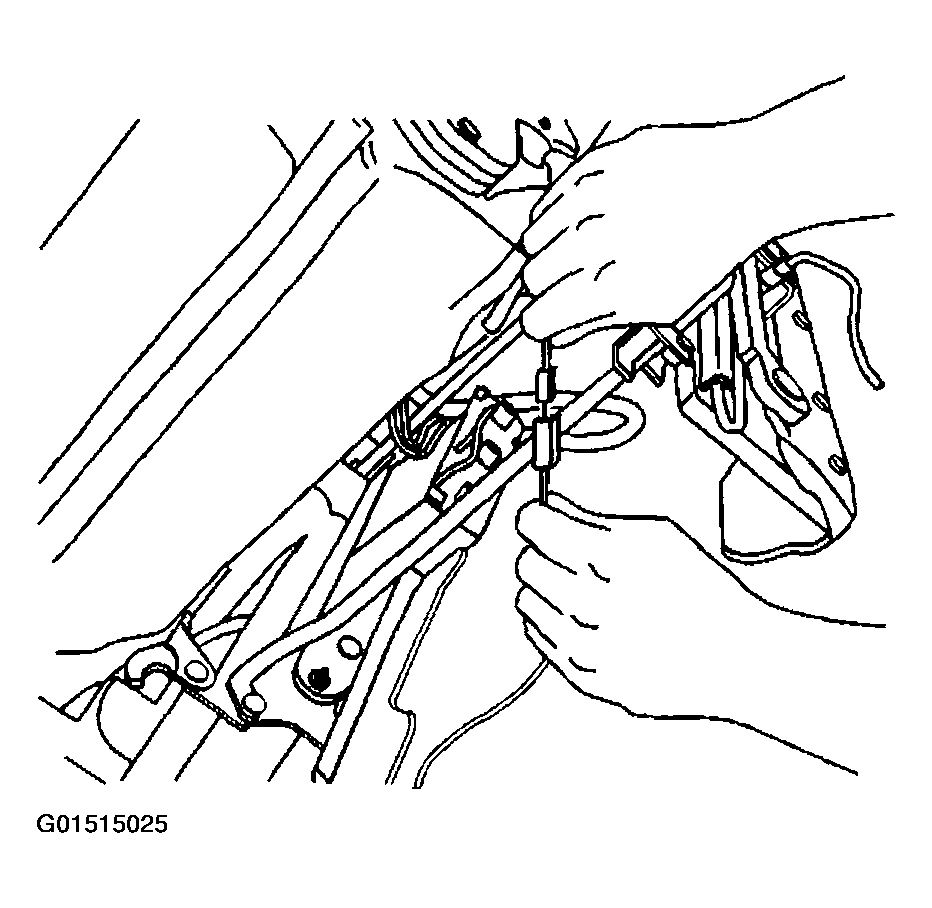

Install the electrical connector to the seat belt buckle.

Fig 2: Installing Procedure Of Seat Belt Buckle - Left Front (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Install the front seat cushion inner trim panel.
Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT -- FRONT .
Install the left front seat. Refer to SEAT REPLACEMENT -- BUCKET .

Fig 3: Installing Procedure Of Seat Belt Buckle - Left Front (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
