Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the endgate.
  2. Remove the push-in retainers from each end of the endgate weatherstrip J 38778.
  3. Remove the endgate weatherstrip from the endgate starting at the corner of the endgate and pull the weatherstrip from the endgate pinch-weld flange.

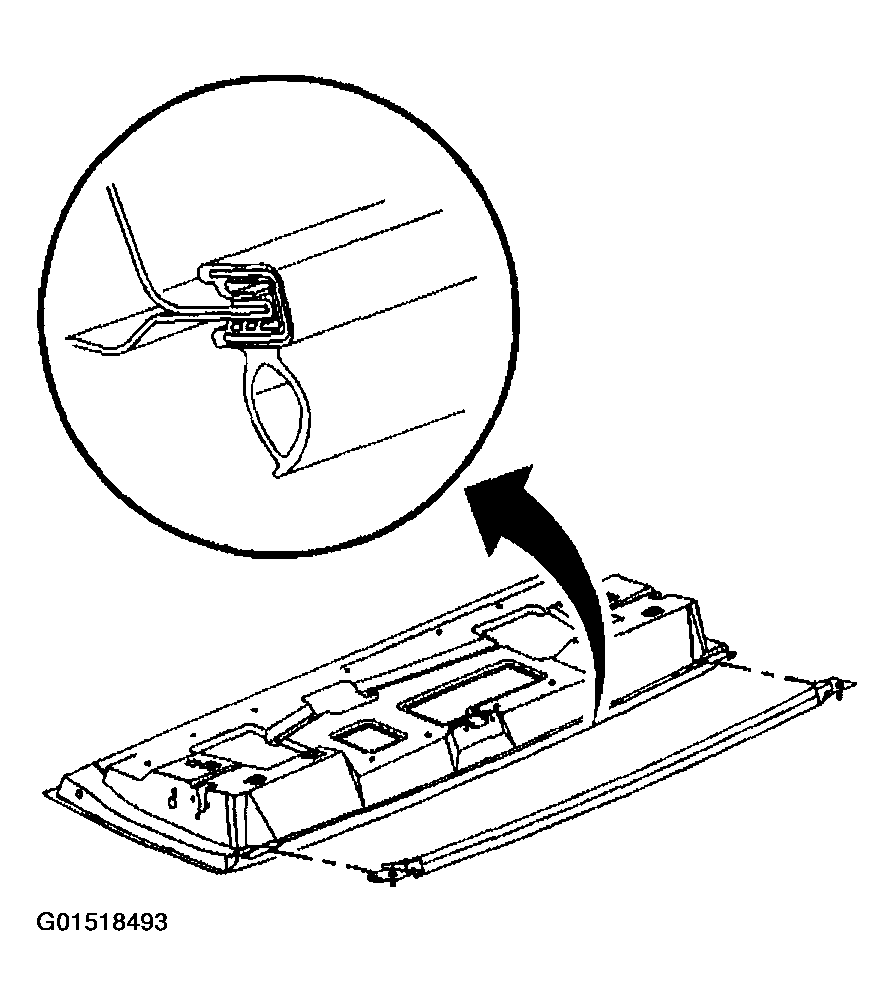

    Fig 1: Removing Procedure Of Weatherstrip Replacement - End Gate
    G01518493Courtesy of GENERAL MOTORS CORP.
