Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the ends of the weatherstrip to the endgate pinch-weld flange corners.
  2. Install the push-in retainers to the holes in the pinch-weld flange.
  3. Install the endgate weatherstrip to the pinch-weld flange working from each end toward the center.

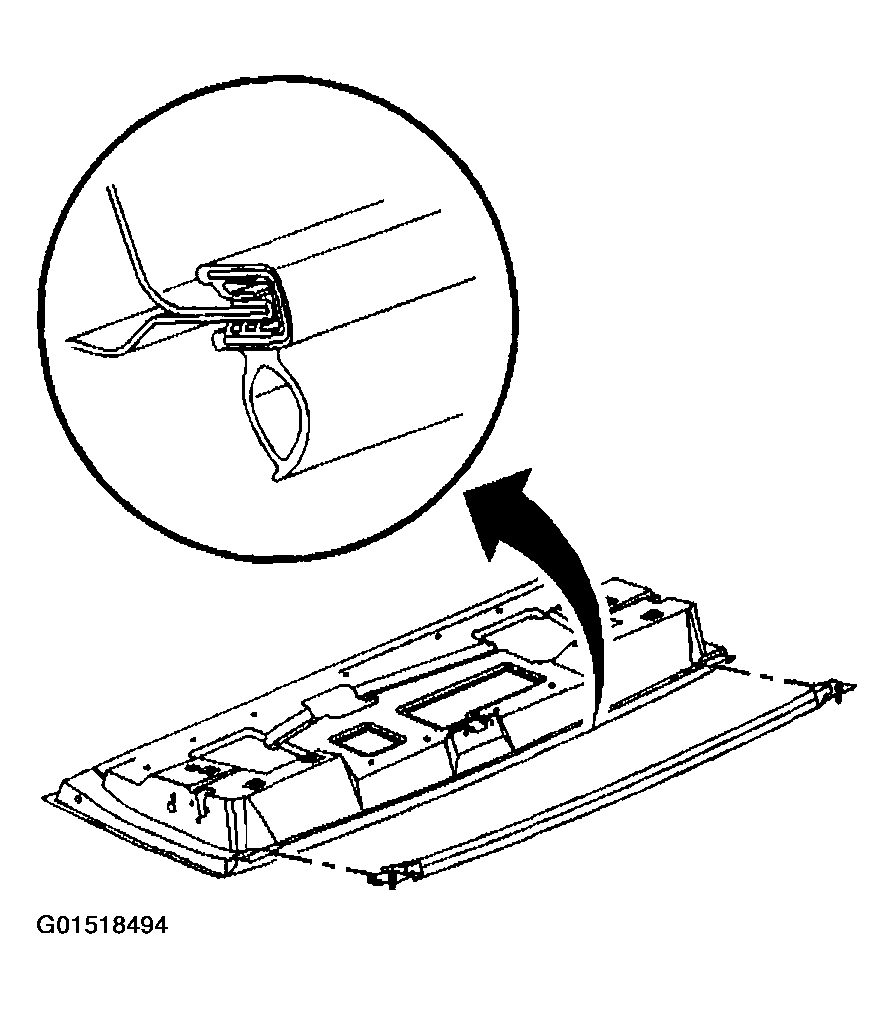

    Fig 1: Installing Procedure Of Weatherstrip Replacement - End Gate
    G01518494Courtesy of GENERAL MOTORS CORP.
