Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE (AZTEK)  or TRIM PANEL REPLACEMENT - LIFT GATE (RENDEZVOUS)  .
  2. Remove the liftgate water deflector.
  3. Clean liftgate surface using GM P/N 3984 adhesive remover or equivalent.

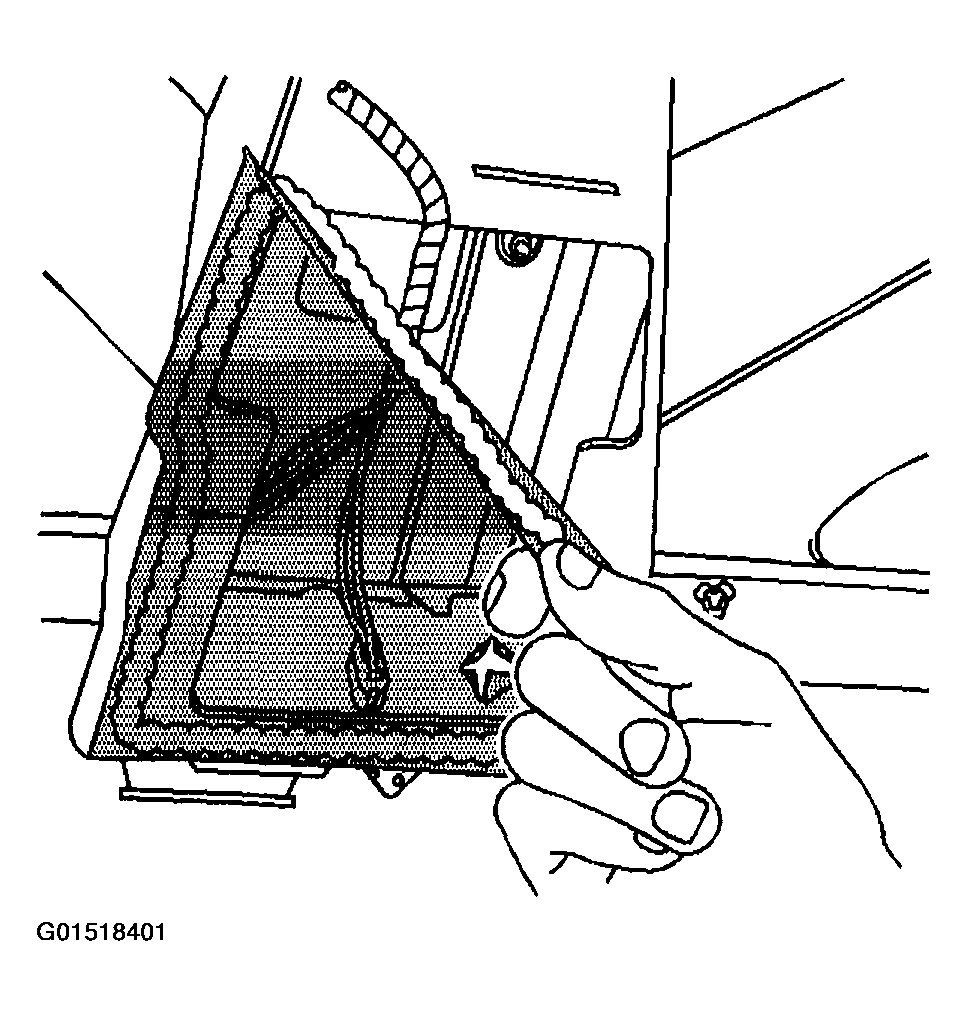

    Fig 1: Removing Procedure Water Deflector Replacement - Lift Gate
    G01518401Courtesy of GENERAL MOTORS CORP.
