Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the liftgate door water deflector to the liftgate inner panel.
  2. Secure the water deflector at the corners.
  3. Install the liftgate water deflector, start pressing the adhesive pattern at the bottom center and working outward and upward in order to prevent puckering.
  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE (AZTEK)  or TRIM PANEL REPLACEMENT - LIFT GATE (RENDEZVOUS)  .

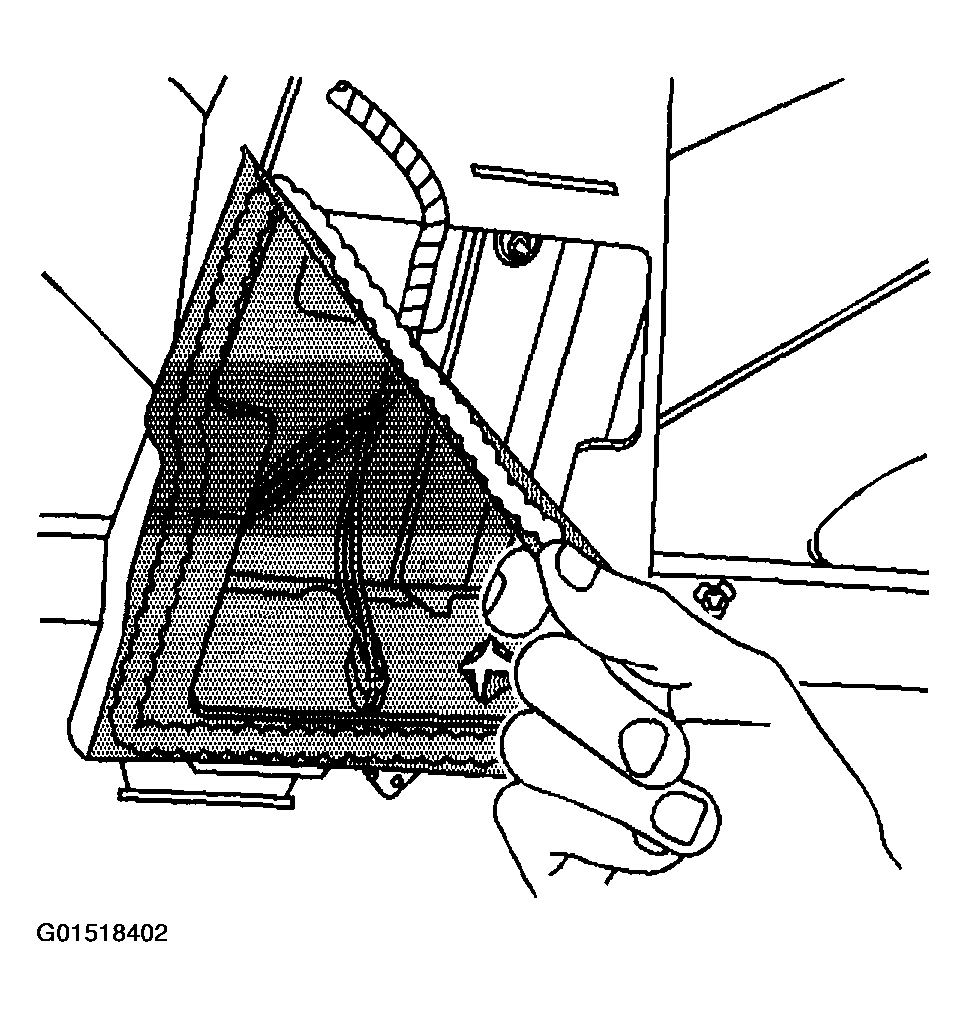

    Fig 1: Installing Procedure Water Deflector Replacement - Lift Gate
    G01518402Courtesy of GENERAL MOTORS CORP.
