Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE  .
  2. Remove the endgate water deflector.
  3. Clean endgate surface using GM P/N 3984 adhesive remover or equivalent.

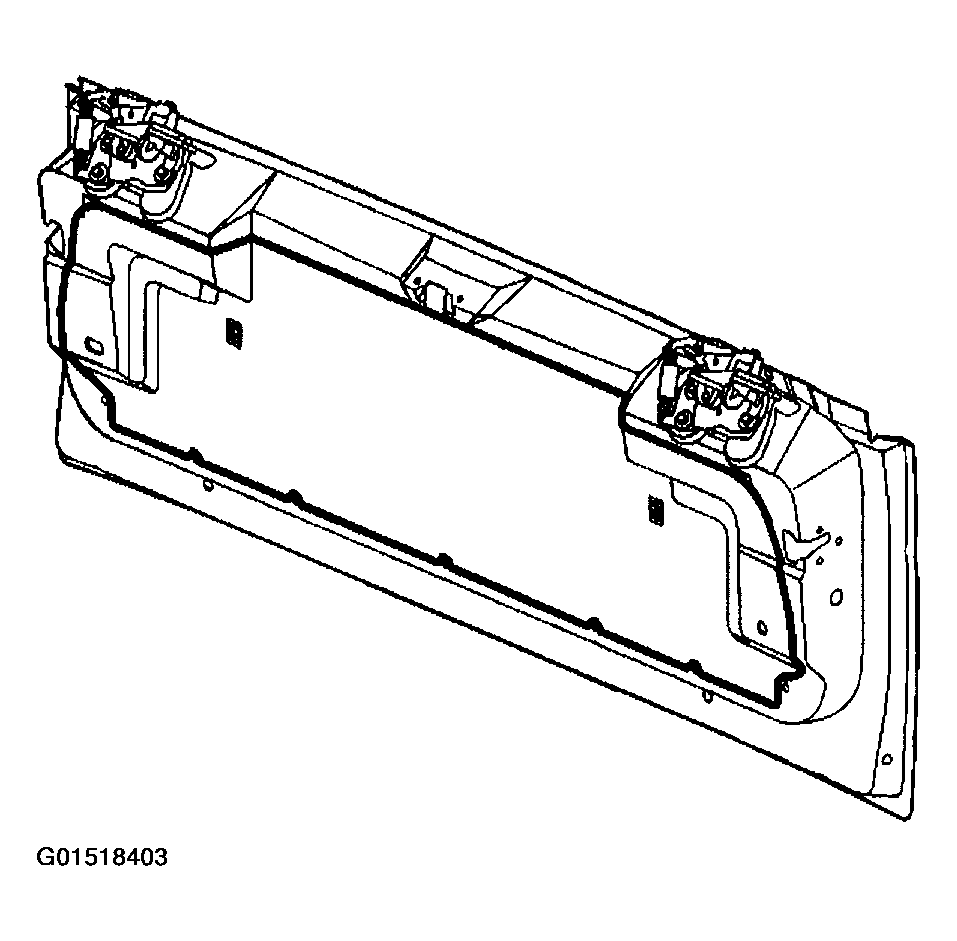

    Fig 1: Removing Procedure Water Deflector Replacement - End Gate
    G01518403Courtesy of GENERAL MOTORS CORP.
