Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the trim panel to the lift gate.

    Important:  Discard the old trim panel fasteners. Install new fasteners.

  2. Install new fasteners to the trim panel.
  3. Install the screws to the bottom of the trim panel.

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the access trim panel to the lift gate.
  5. Close the lift gate.

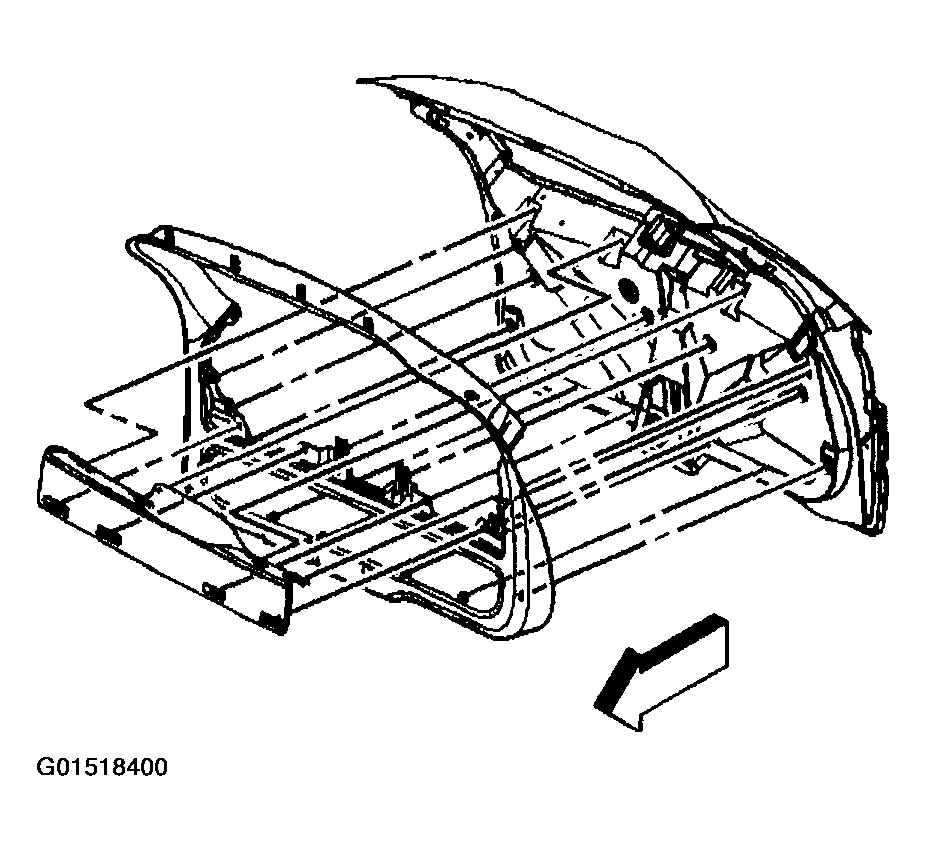

    Fig 1: Installing Procedure Trim Panel Replacement - Lift Gate (Rendezvous)
    G01518400Courtesy of GENERAL MOTORS CORP.
