Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the lower liftgate trim panel sides by pulling the left and right sides from the liftgate frame.
  3. Remove the lower liftgate trim panel from the pinch-weld flange by pulling up from the pinch-weld flange.
  4. Remove the lower liftgate trim panel from the vehicle.

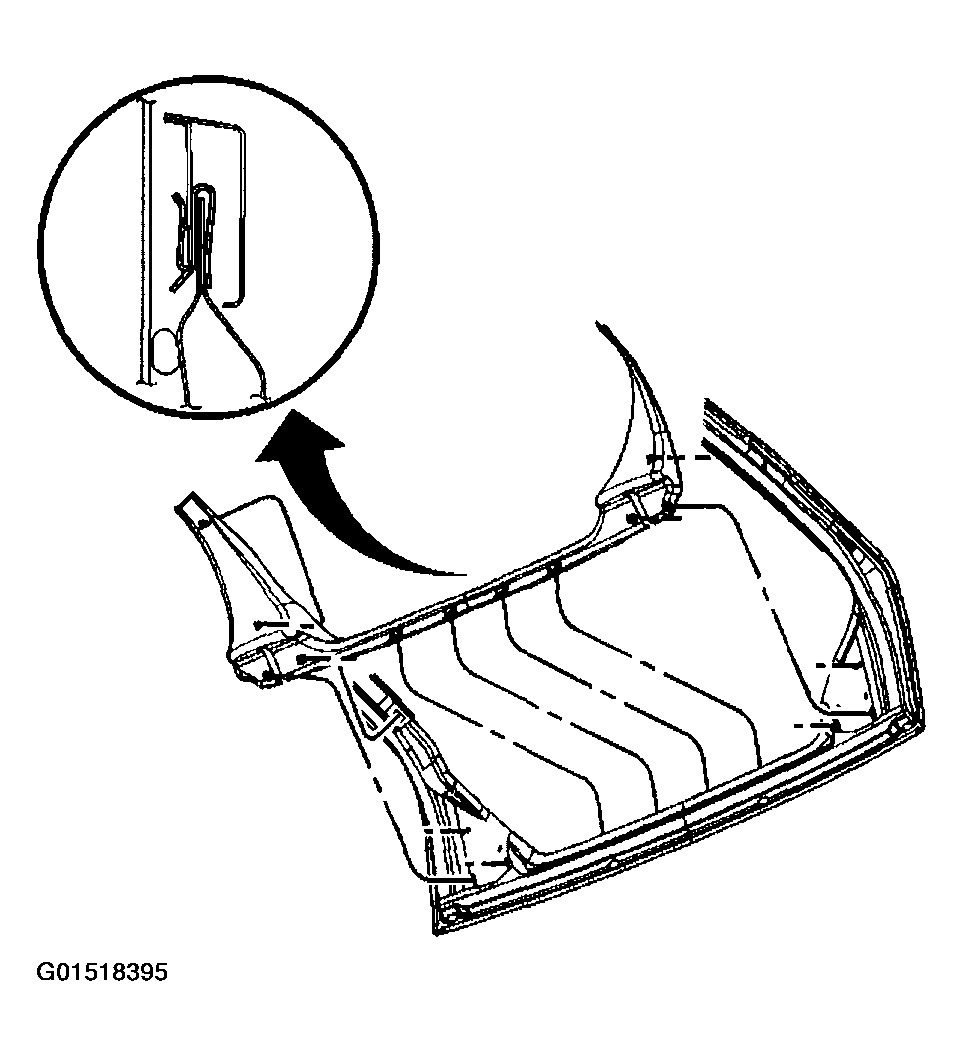

    Fig 1: Removing Procedure Trim Panel Replacement - Lift Gate (Aztec - 1 Of 2)
    G01518395Courtesy of GENERAL MOTORS CORP.
  5. Remove the upper liftgate trim panel sides by pulling the left and right sides from the liftgate frame.
  6. Remove the upper liftgate trim panel from the pinch-weld flange by pulling up from the pinch-weld flange.
  7. Remove the upper liftgate trim panel from the vehicle.

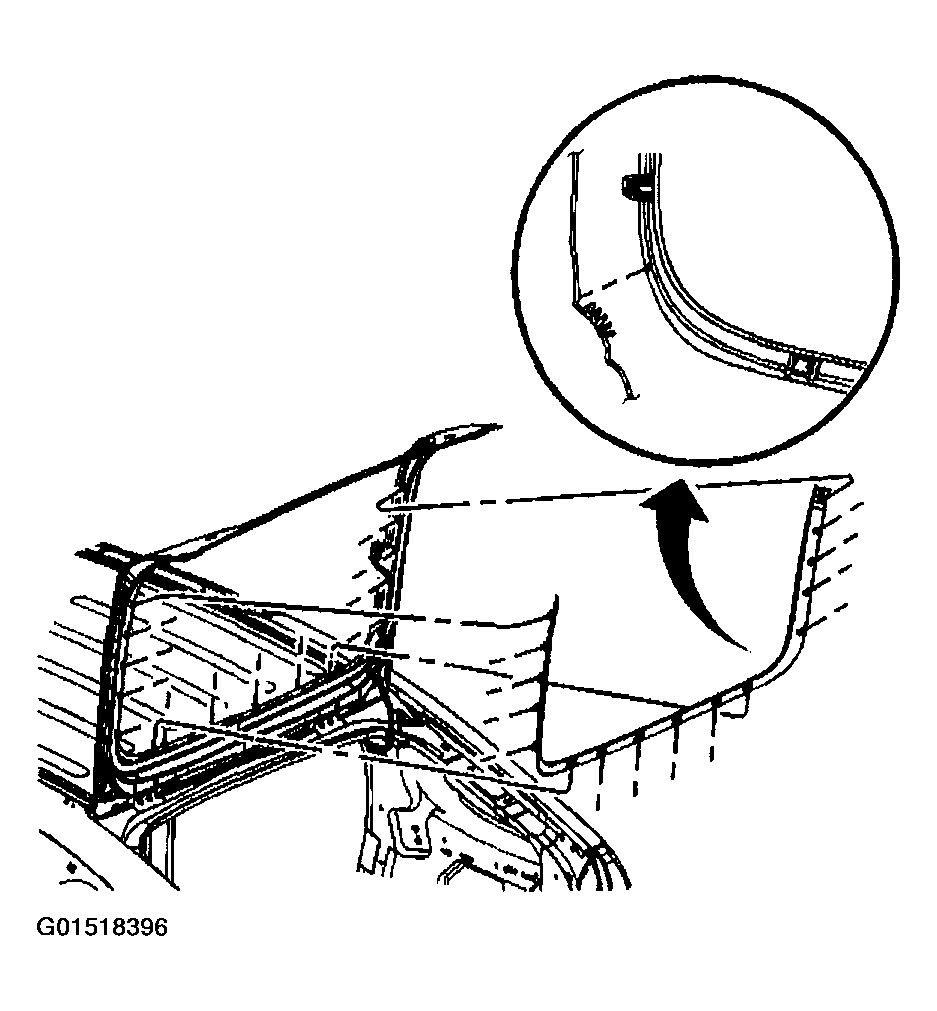

    Fig 2: Removing Procedure Trim Panel Replacement - Lift Gate (Aztec - 2 Of 2)
    G01518396Courtesy of GENERAL MOTORS CORP.
