Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Open the endgate.
Lift up the retainer clips on the endgate assist rods using a small flat-bladed tool.

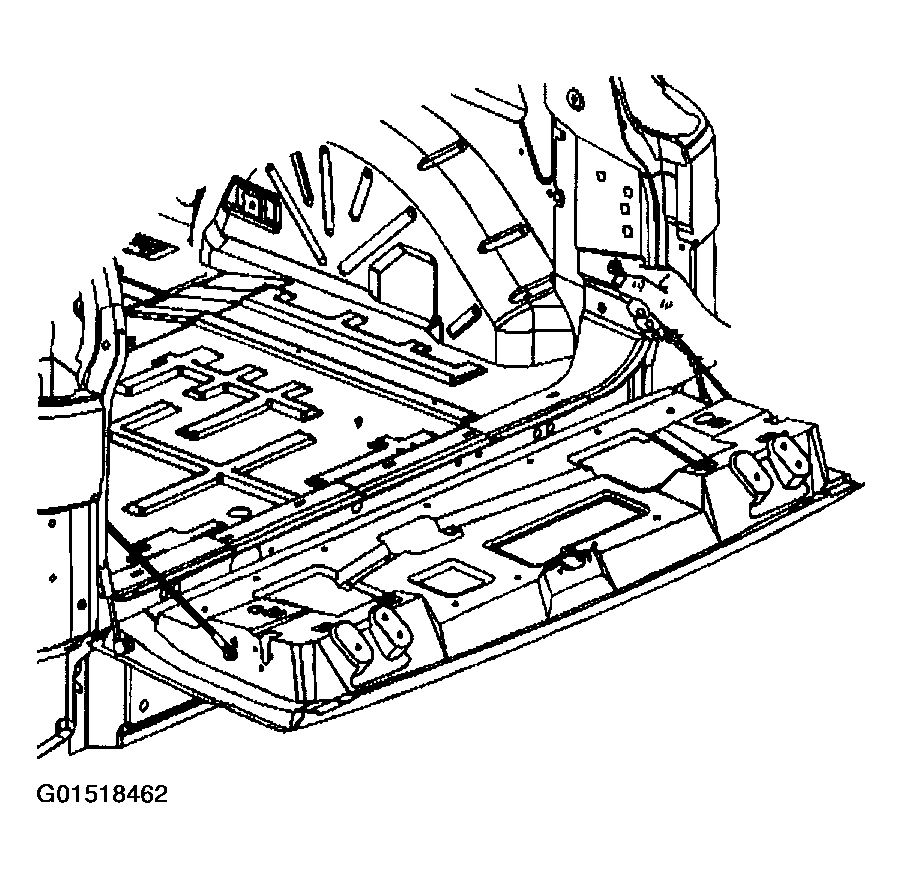

Fig 1: Removing Procedure Strut Replacement - End Gate (1 Of 4)
Courtesy of GENERAL MOTORS CORP.
Remove the upper end of the assist rods from the ball joint.

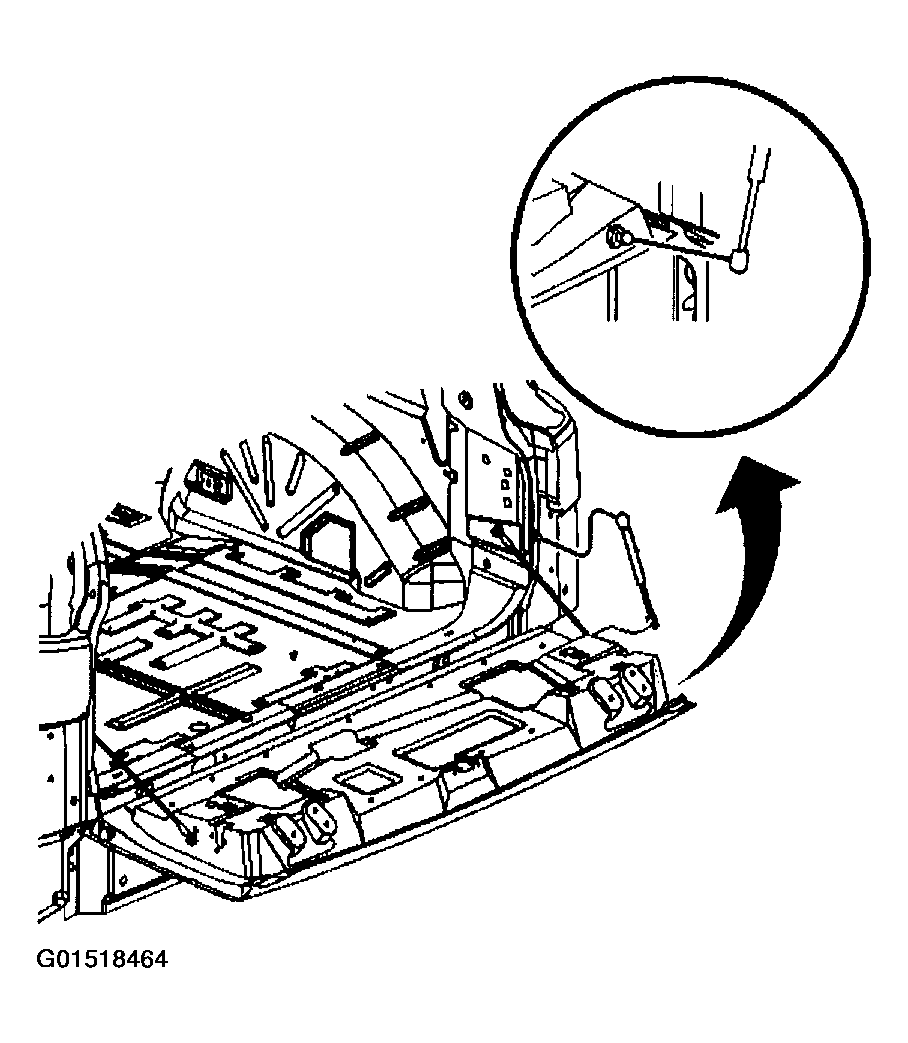

Fig 2: Removing Procedure Strut Replacement - End Gate (2 Of 4)
Courtesy of GENERAL MOTORS CORP.
Remove the lower end of the assist rods from the ball joint.

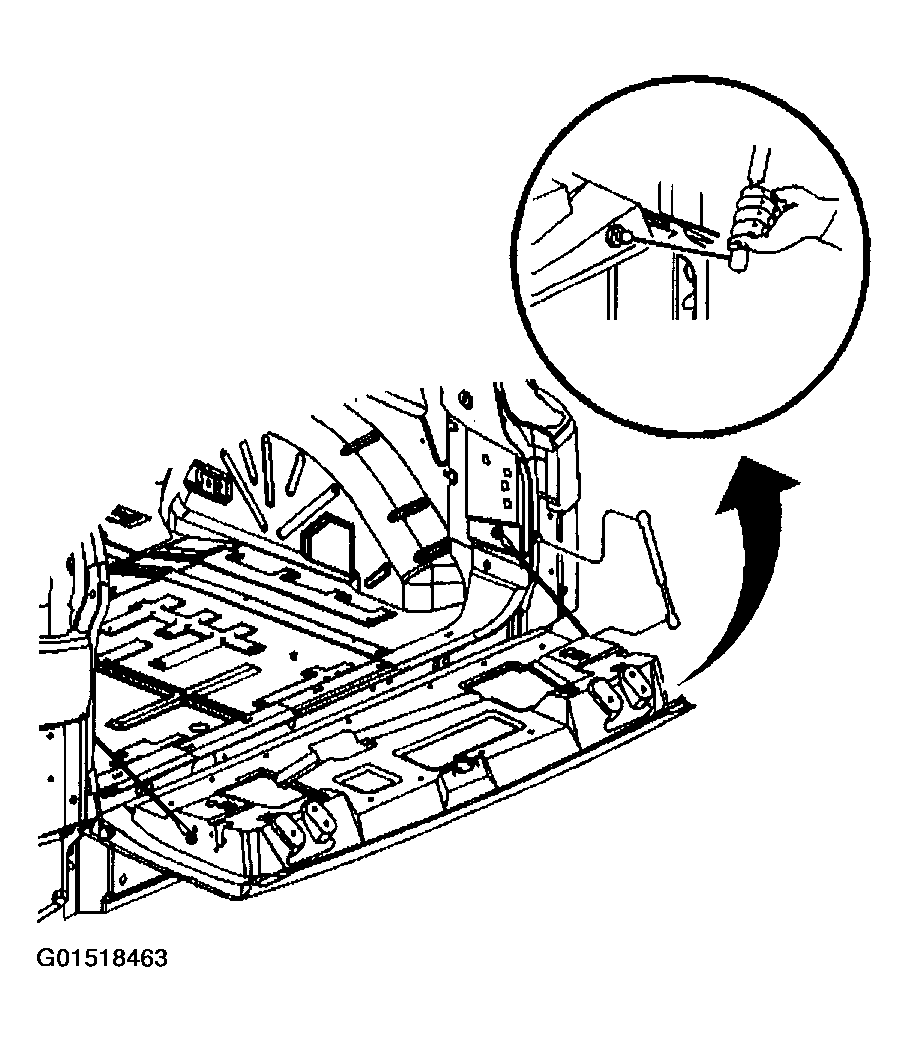

Fig 3: Removing Procedure Strut Replacement - End Gate (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Remove the assist rods from the endgate.

Fig 4: Removing Procedure Strut Replacement - End Gate (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
