Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the lift gate.
  2. Remove the screw from the pullstrap.
  3. Remove the pullstrap

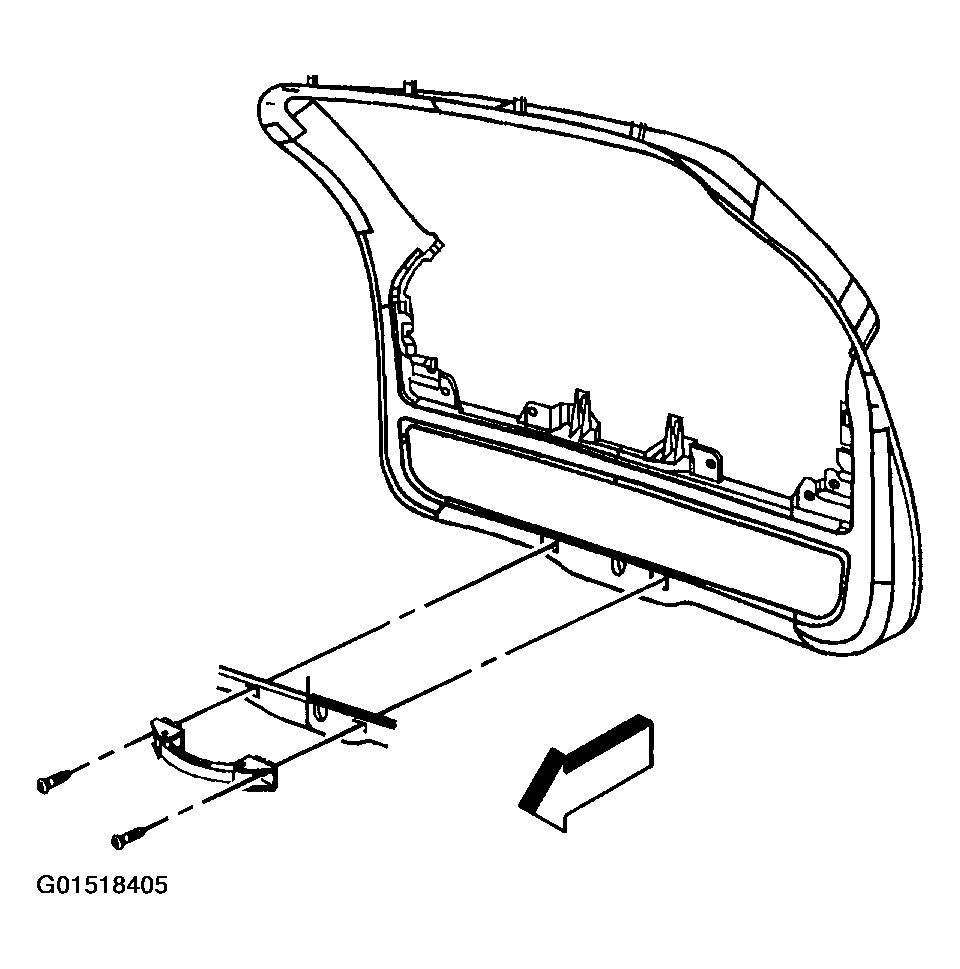

    Fig 1: Removing Procedure Pullstrap Replacement - Lift Gate
    G01518405Courtesy of GENERAL MOTORS CORP.
