Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT -- REAR BUMPER (AZTEK) or FASCIA REPLACEMENT -- REAR BUMPER (RENDEZVOUS) .
  2. Using a small flat-bladed tool, apply pressure at two upper locations and two lower locations to release the retainers on the pressure relief valve.
  3. Remove the pressure relief valve from the lower quarter panel.

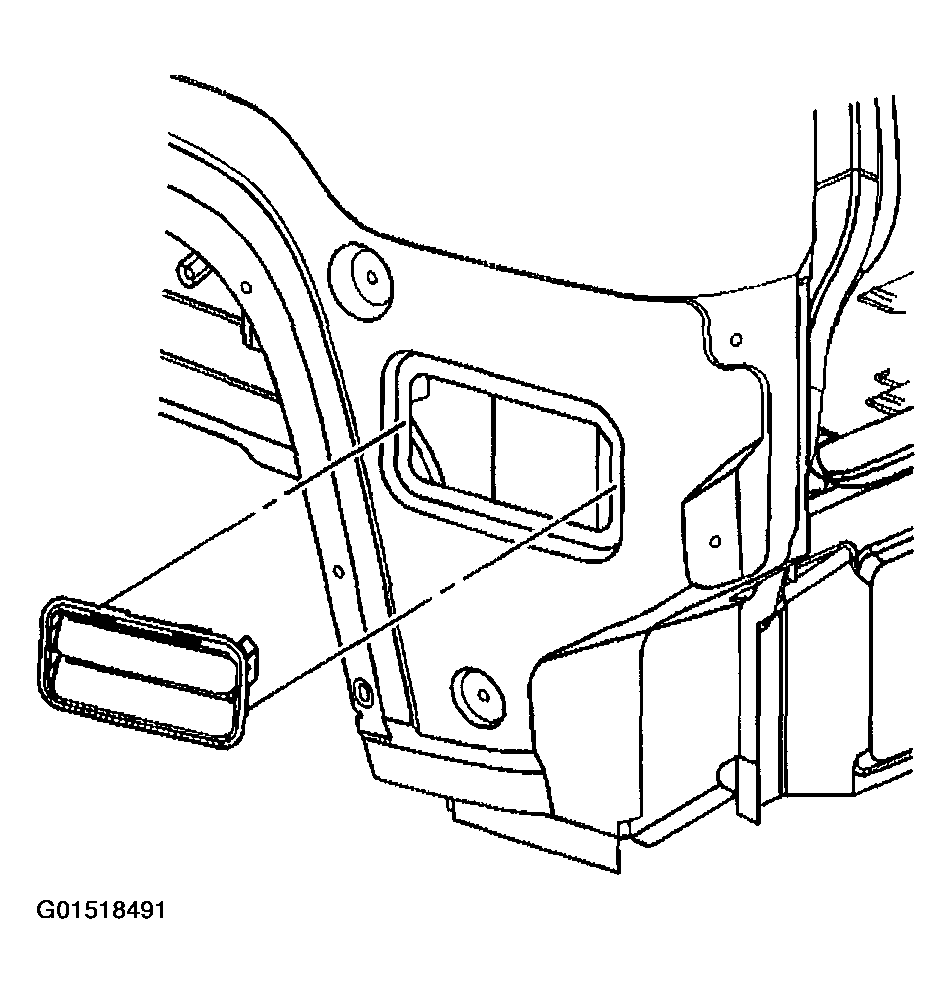

    Fig 1: Removing Procedure Of Pressure Relief Valve Replacement
    G01518491Courtesy of GENERAL MOTORS CORP.
